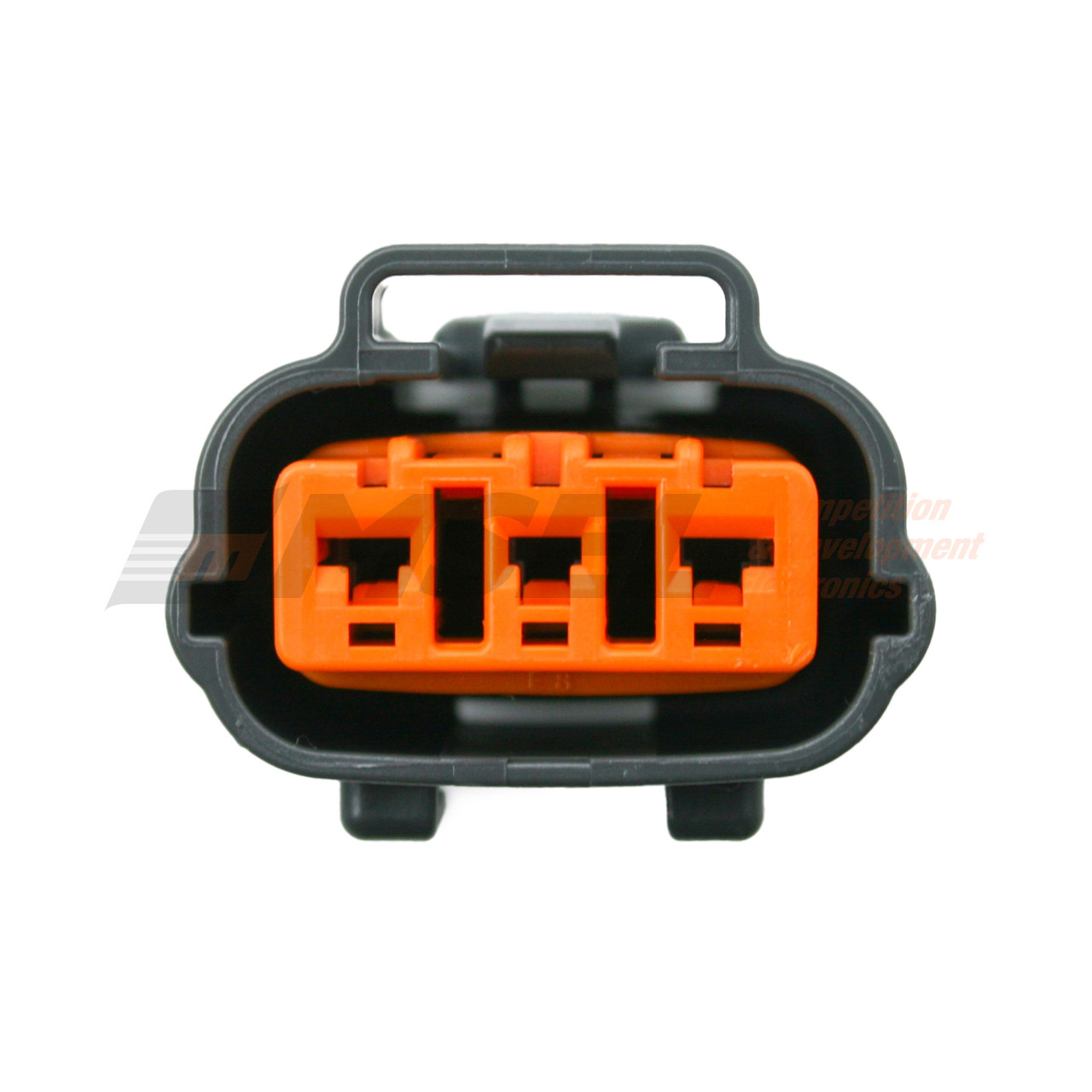

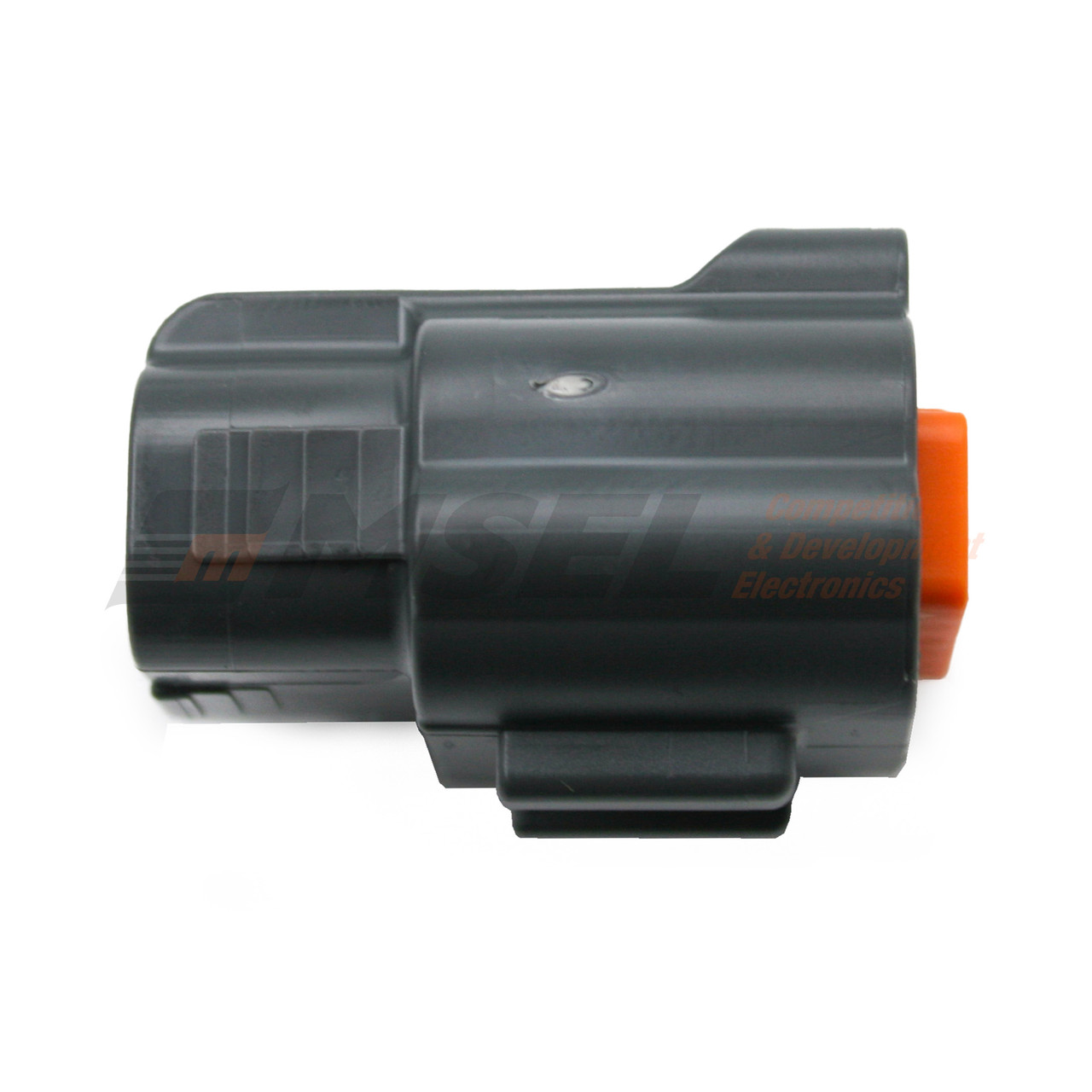

3-Way Inline Female Connector for Mitsubishi EVO and Mazda Coils
SKU: CONMAZ3001FK
3-Way Inline Female Connector for Mitsubishi EVO and Mazda Coils
SKU: CONMAZ3001FK
Summary:
3-Way Inline Female Connector for Mitsubishi and Mazda Coils Mitsubishi EVO 4/5/6/7/8/9 Ignition coils Mazda MX5 NA 1.6L Ignition Coils Mazda RX8 Ignition Coils Kit includes: 1 x Connector Housing 3 x Terminals 3 x Wire Seals Key Features General Sealing: Single Wire Sealed Number of Ways: 3 Contact…
Description:
3-Way Inline Female Connector for Mitsubishi and Mazda Coils
- Mitsubishi EVO 4/5/6/7/8/9 Ignition coils
- Mazda MX5 NA 1.6L Ignition Coils
- Mazda RX8 Ignition Coils

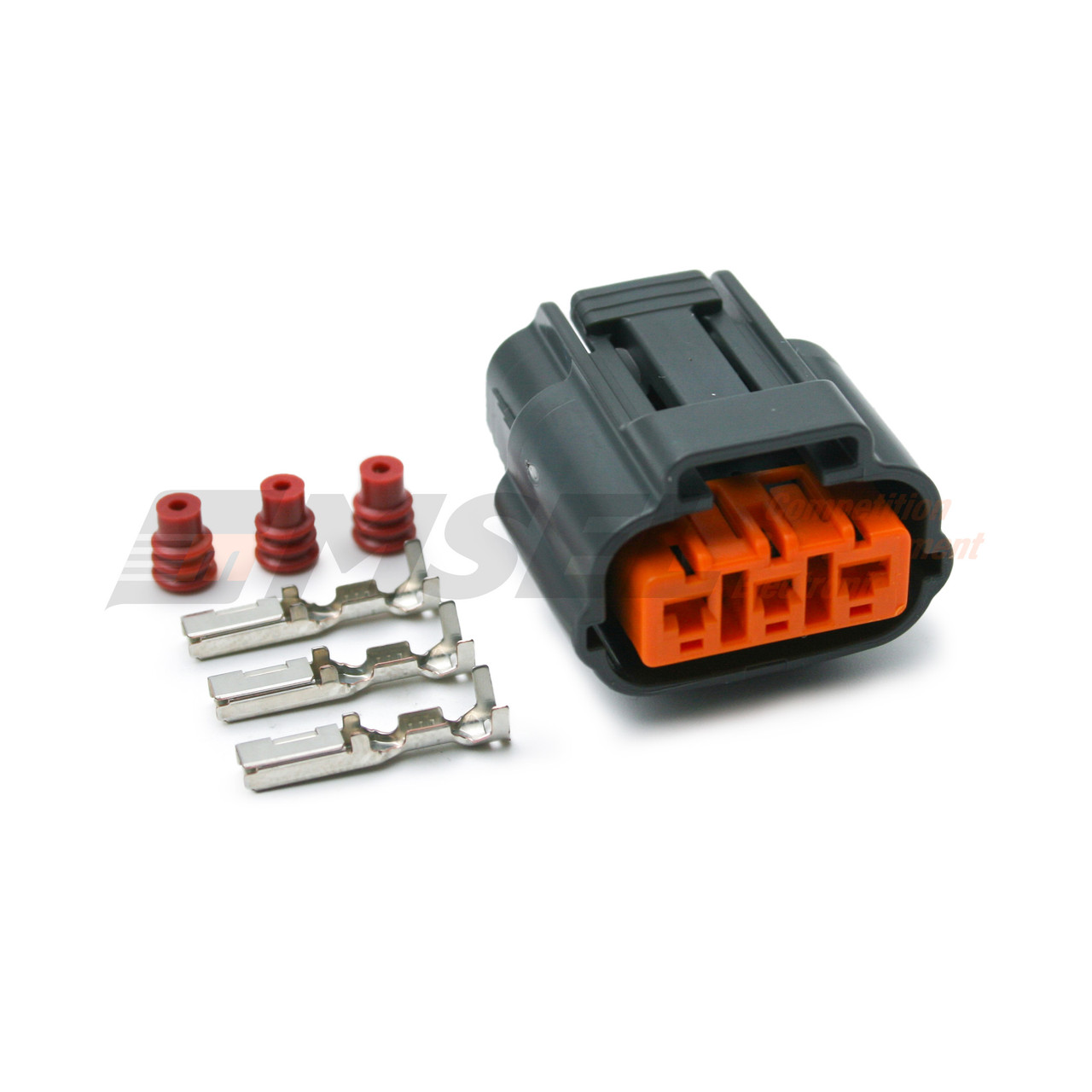

Kit includes:
- 1 x Connector Housing
- 3 x Terminals
- 3 x Wire Seals
Key Features
| General |
| Sealing: | Single Wire Sealed |
| Number of Ways: | 3 |
| Contact Size: | 2.3mm |
| Wire Size: | 22AWG-18AWG |
| Number of Rows: | 1 |
| Pitch: | 6.0mm |
| Numbered Cavities: | No |
| Mechanical |
| Contact Type: | Socket, flat |
| Termination: | Open barrel crimp |
| Lance Type: | Housing Lance |
| Housing Material: | PA6T |
| Mounting Style: | Clip Slot |
| TPA: | Yes |
| CPA: | No |
| Electrical |
| Current Rating[1]: | 22A |
[1] Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
