Autosport 16-Way Plug Connector With Pins - Red
SKU: CONAS62016PN
Autosport 16-Way Plug Connector With Pins - Red
SKU: CONAS62016PN
Summary:
Autosport 16-Way Plug Connector with Size 16 Pins - Red Connector kit includes contacts and insert/removal tool. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feature Specification Notes Part Number 62016PN Connector Type…
Description:

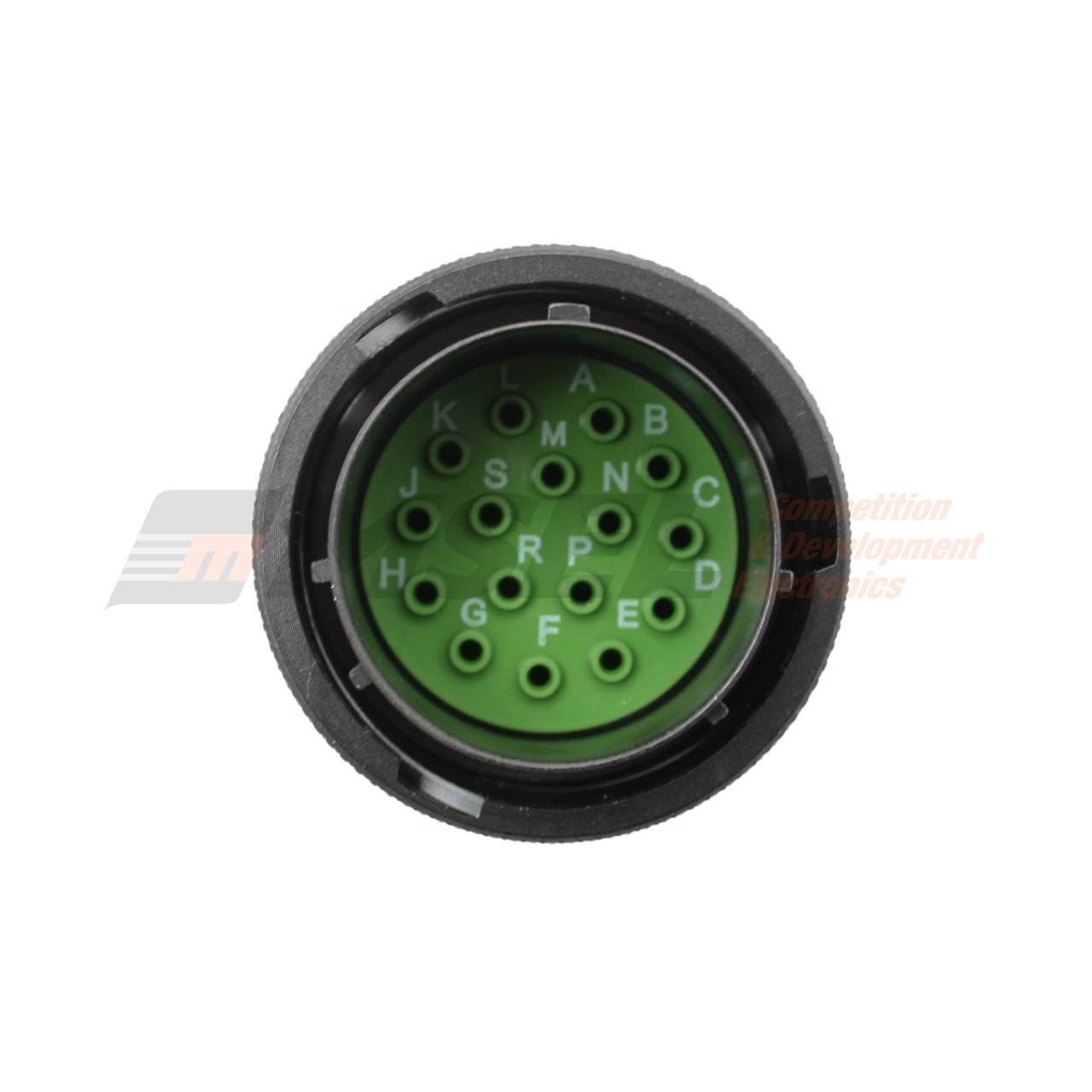

Autosport 16-Way Plug Connector with Size 16 Pins - Red

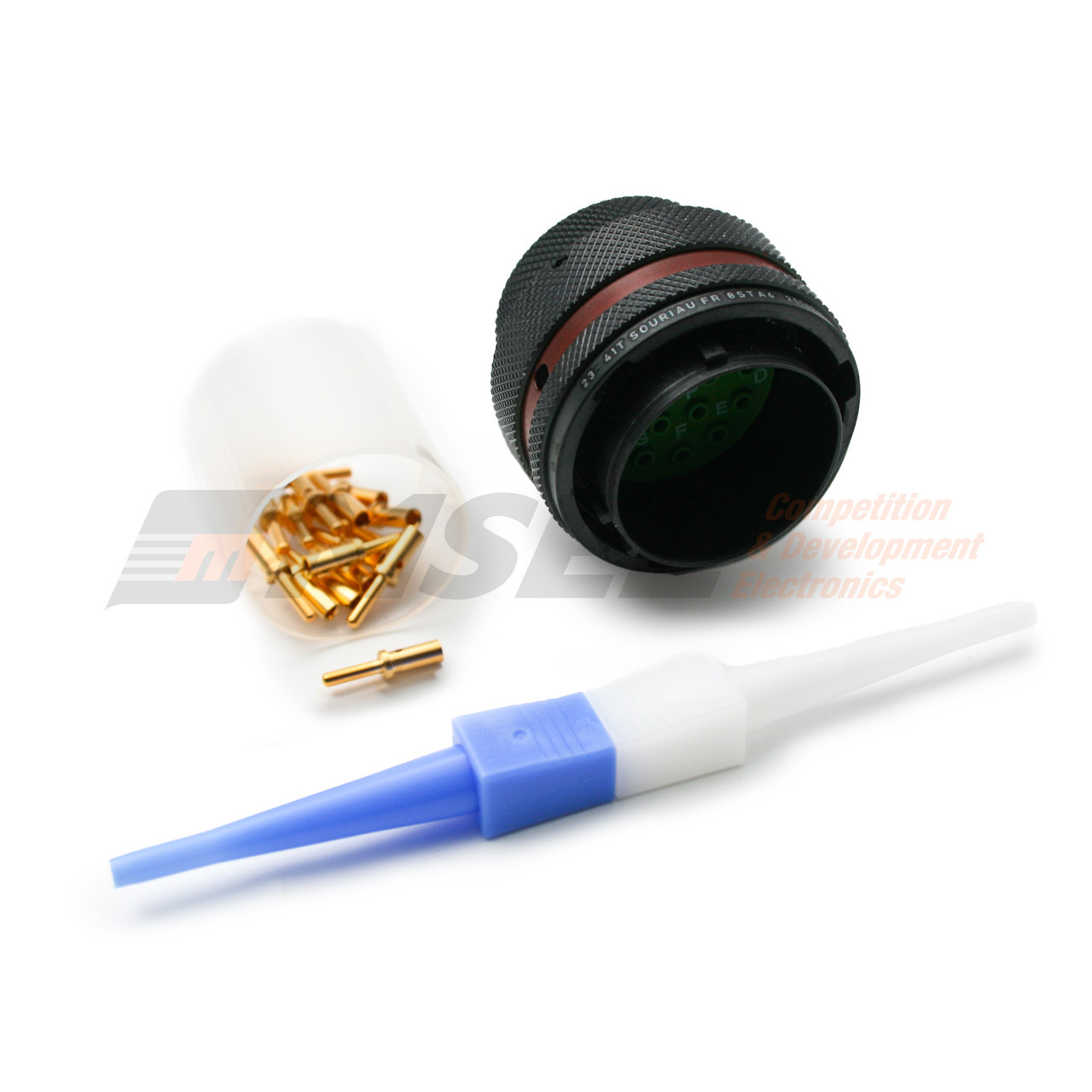

Connector kit includes contacts and insert/removal tool.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 62016PN | |
| Connector Type | Plug | |
| Shell Size | 20 | |
| Orientation | Red (N) | Will only mate with red connectors |
| Number of Contacts | 16 | |
| Contact Size | 16 | Supports 20 to 14AWG wire |
| Contact Type | Pin | |
| Current Rating | 13 Amps | |
| Termination Type | Crimp | |
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool | |

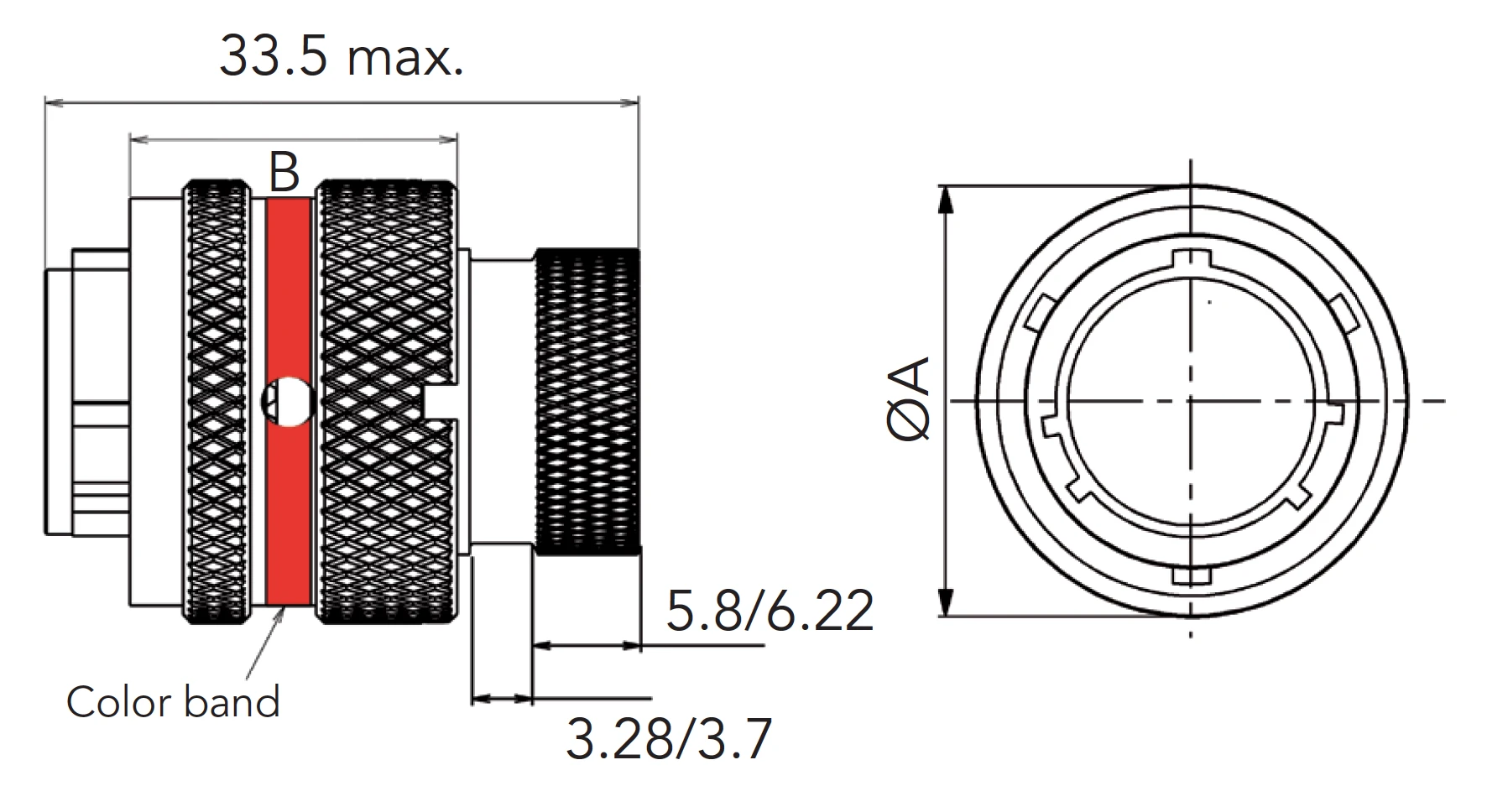

| ØA max. | B max. |
| 38.20 | 19.30 |
Note: all dimensions are in millimeters (mm)
