Autosport 10-Way In-line Receptacle Size 20 Sockets - Red
SKU: CONAS11298SN
Autosport 10-Way In-line Receptacle Size 20 Sockets - Red
SKU: CONAS11298SN
Summary:
Autosport 10-Way In-line Receptacle with Size 20 Socket Terminals Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feature Specific…
Description:

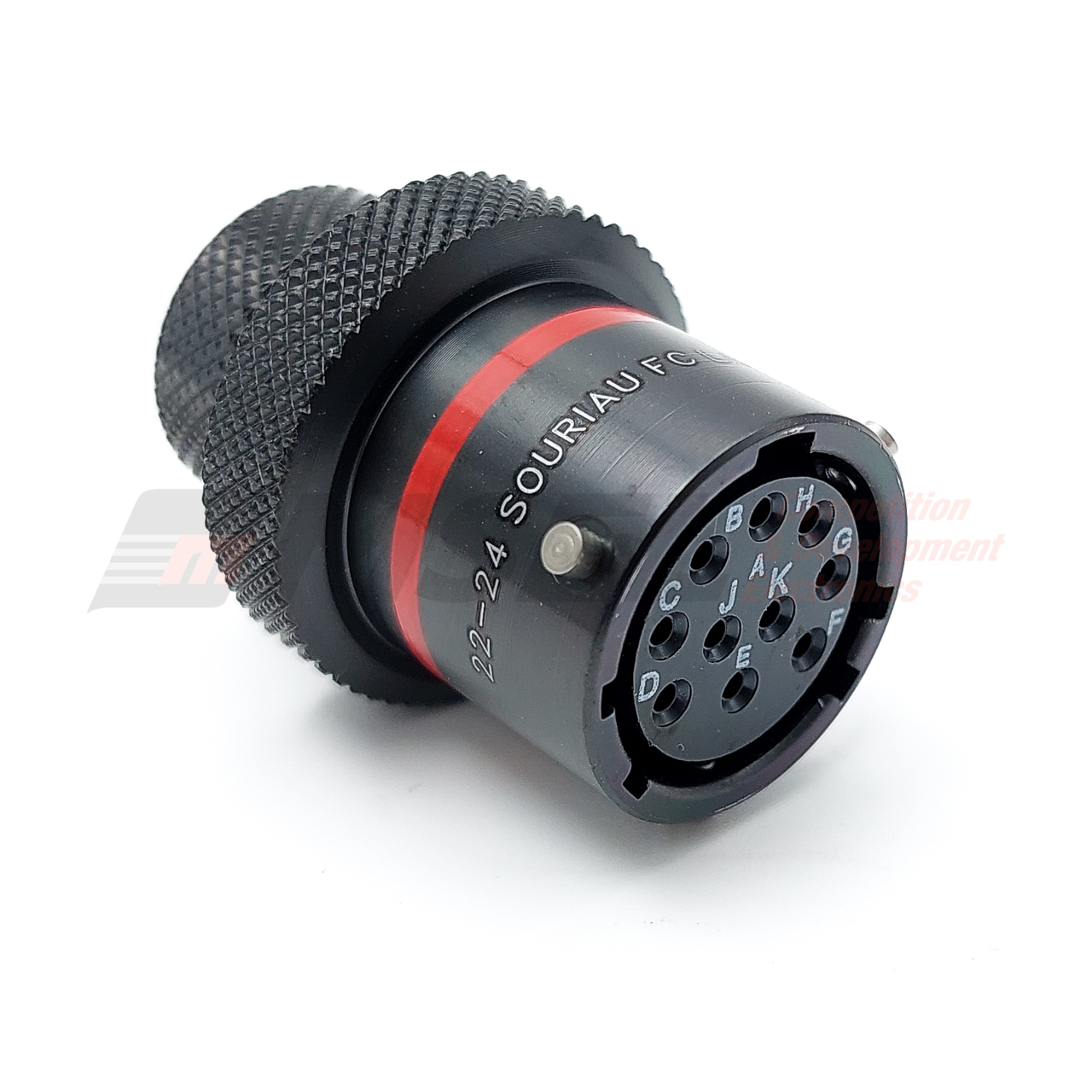

Autosport 10-Way In-line Receptacle with Size 20 Socket Terminals

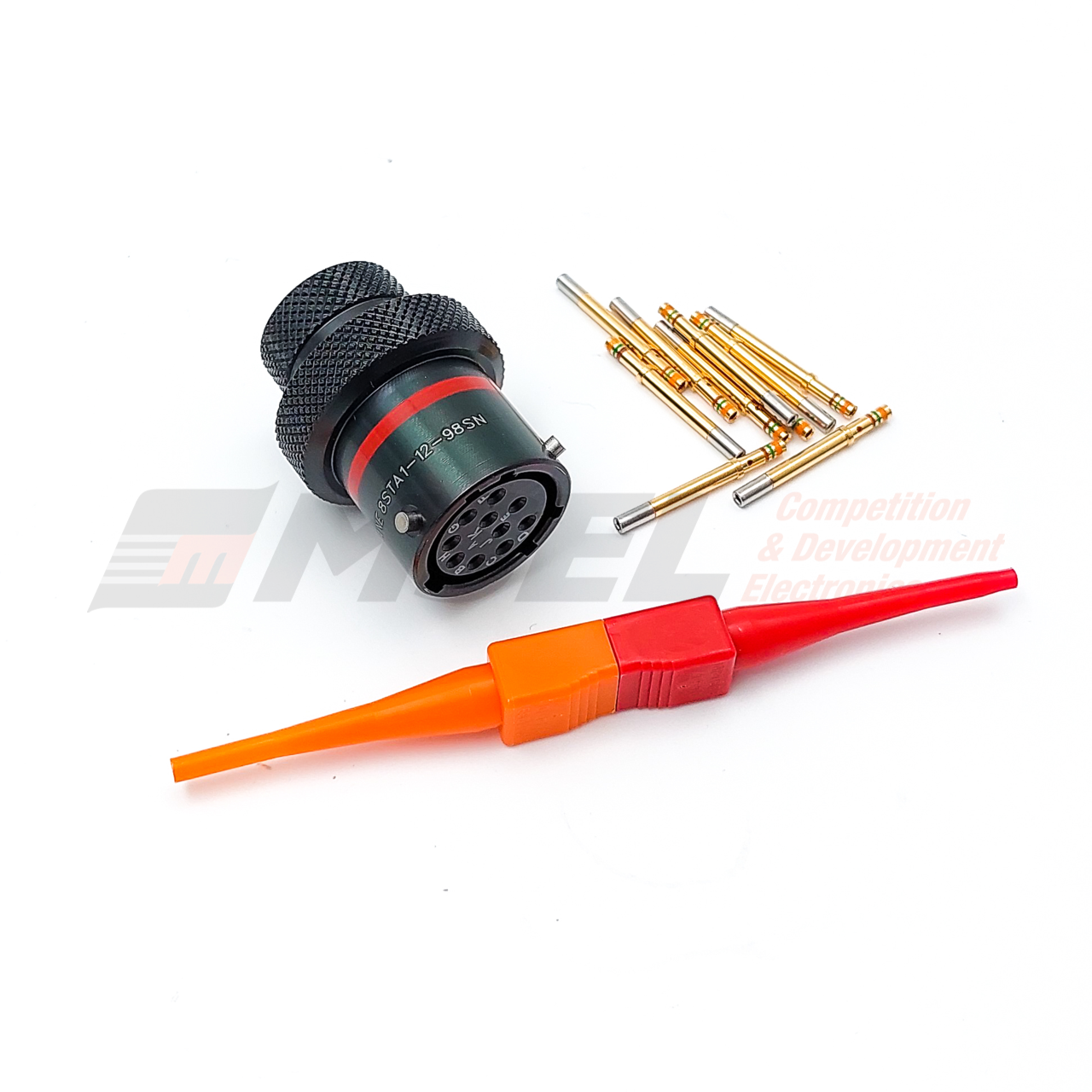

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 11298SN | |
| Connector Type | In-line receptacle | |
| Shell Size | 12 | |
| Orientation | Red (N) | Will only mate with red connectors |
| Number of Contacts | 10 | |
| Contact Size | 20 | Supports 24 to 20AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 7.5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK43 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool | |
| ØA max. | ØD | G max. |
| 25.10 | 19.05 | 33.50 |
Note: all dimensions are in millimeters (mm)
