Autosport 21-Way Bulkhead Connector with Size 16 Sockets - Red
SKU: CONAS02221SN
Autosport 21-Way Bulkhead Connector with Size 16 Sockets - Red
SKU: CONAS02221SN
Summary:
Autosport 21-Way Bulkhead Connector Size 16 Sockets - Red Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feature Specification No…
Description:

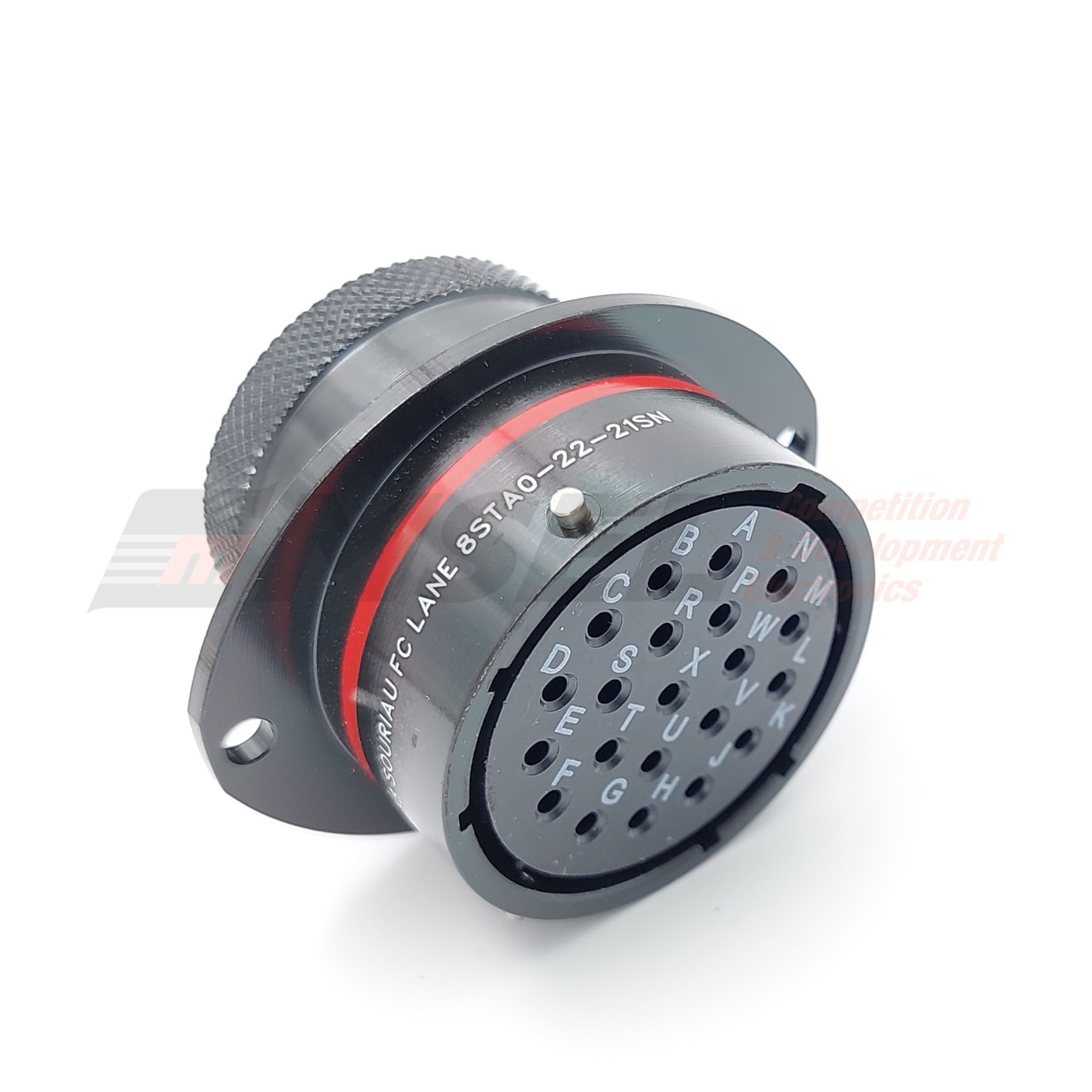

Autosport 21-Way Bulkhead Connector Size 16 Sockets - Red

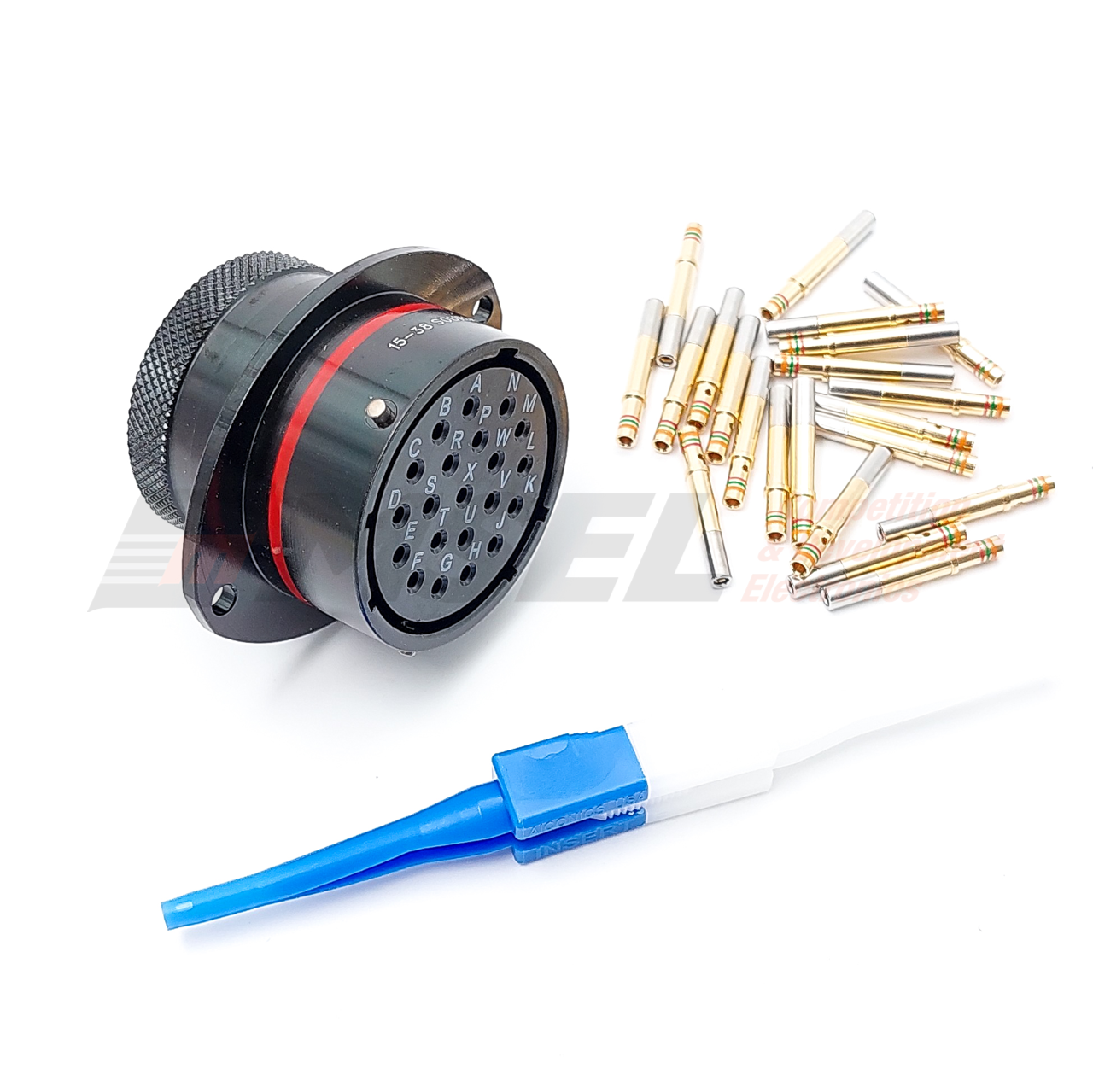

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 02221SN | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 22 | |
| Orientation | Red (N) | Will only mate with red connectors |
| Number of Contacts | 21 | |
| Contact Size | 16 | Supports 20 to 16AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 13 Amps | |
| Termination Type | Crimp | |
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool | |
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 40.40 | 45 | 3.2 | 34.9 | 17.21 | 15.29 | 33.5 | 51 | 3 | 37.6 | 45.0 | 3.6 |
Note: all dimensions are in millimeters (mm)
