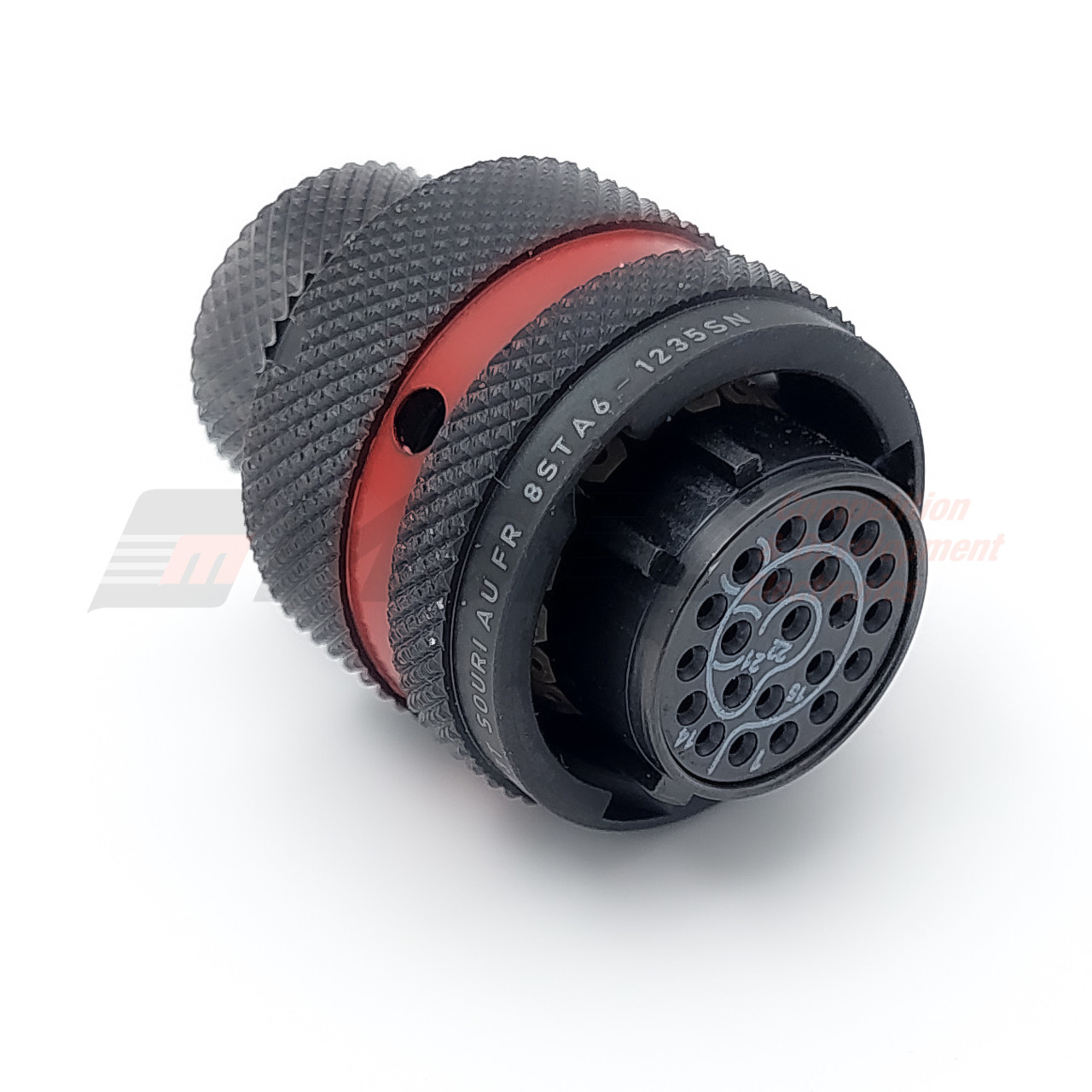

Autosport 22-Way Plug Connector with size 22 Sockets - Red
SKU: CONAS61235SN
Autosport 22-Way Plug Connector with size 22 Sockets - Red
SKU: CONAS61235SN
Summary:
Autosport 22-Way Plug Connector with size 22 Sockets - Red Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feature Specification N…
Description:
Autosport 22-Way Plug Connector with size 22 Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 61235SN | |
| Connector Type | Plug | |
| Shell Size | 12 | |
| Orientation | Red (N) | Will only mate with red connectors |
| Number of Contacts | 22 | |
| Contact Size | 22D | Supports 26 to 22AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK40 | Refer to Related Products below (not incl.) |
| Kit Contains |

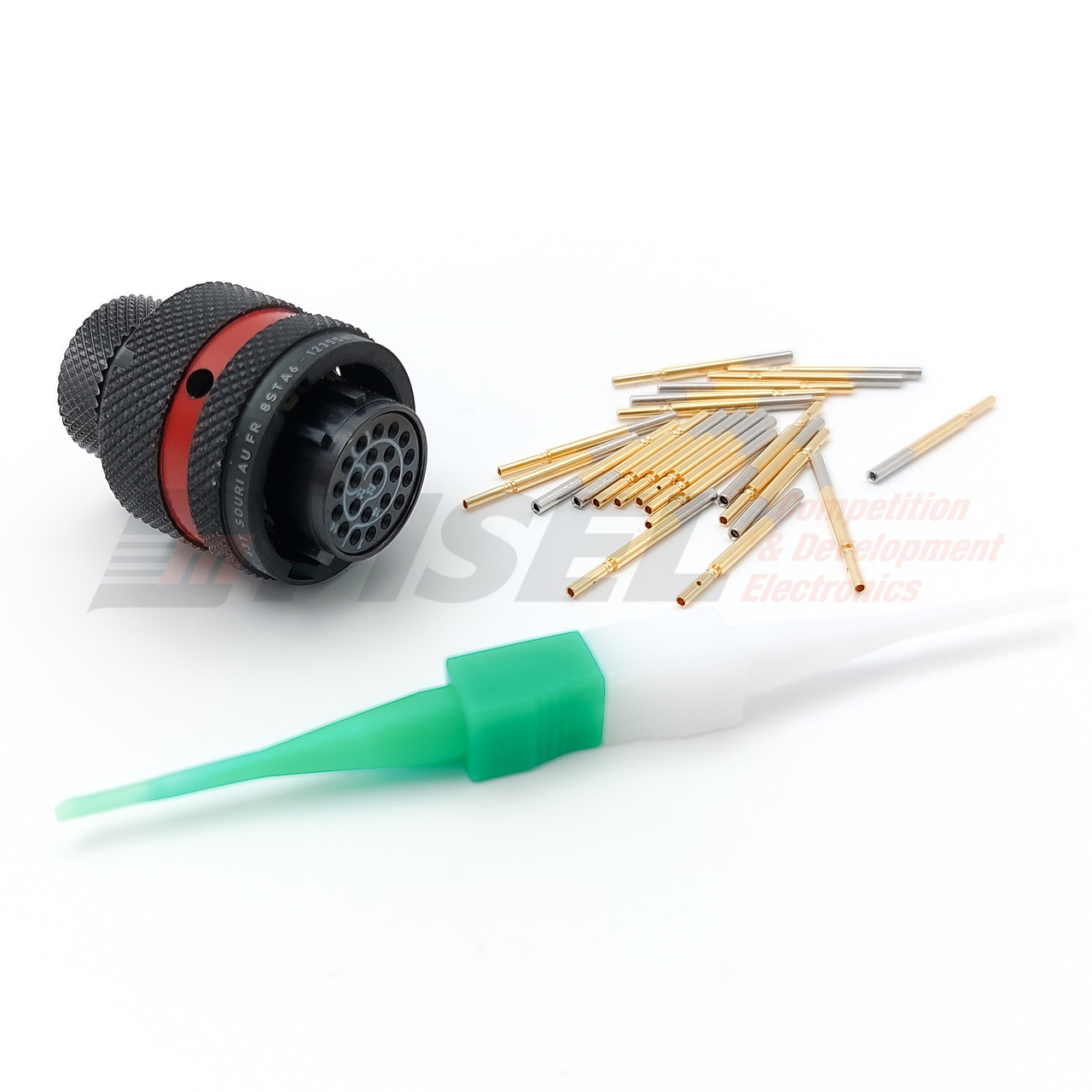

connector housing, contacts and insert/removal tool
|
|

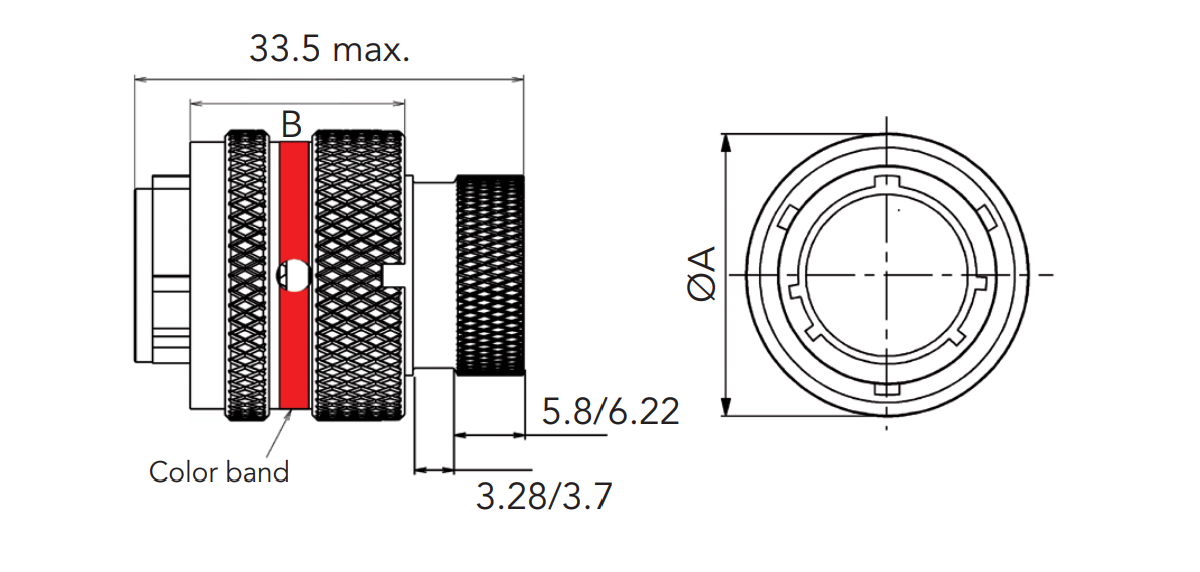

| ØA max. | B max. |
| 25.10 | 18.55 |
Note: all dimensions are in millimeters (mm)
