Autosport 29-Way Plug Connector with Size 16 Pins - Yellow
SKU: CONAS62429PA
Autosport 29-Way Plug Connector with Size 16 Pins - Yellow
SKU: CONAS62429PA
Summary:
Autosport 29-Way Plug Connector Size 16 Pins - Yellow Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feature Specification Notes…
Description:

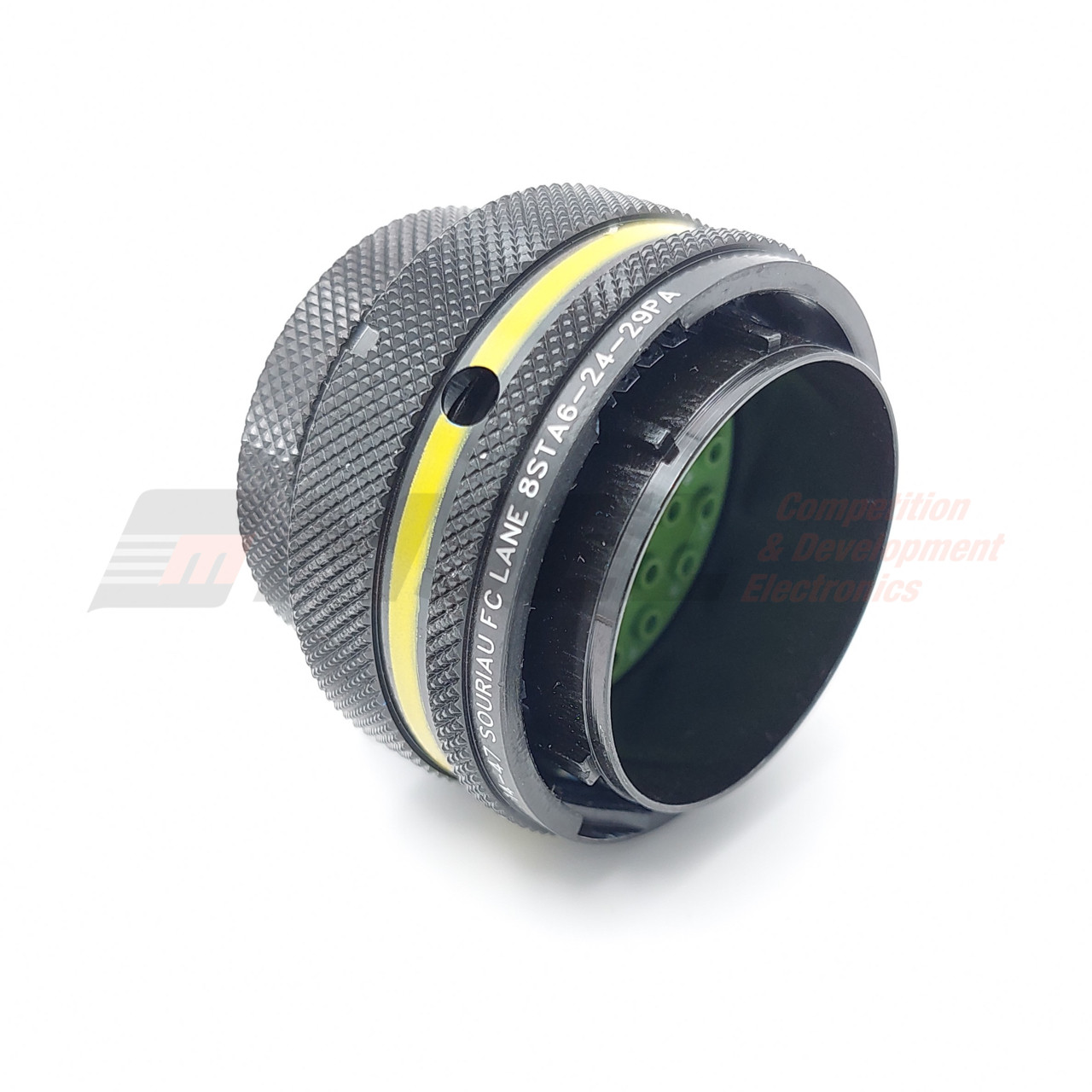

Autosport 29-Way Plug Connector Size 16 Pins - Yellow

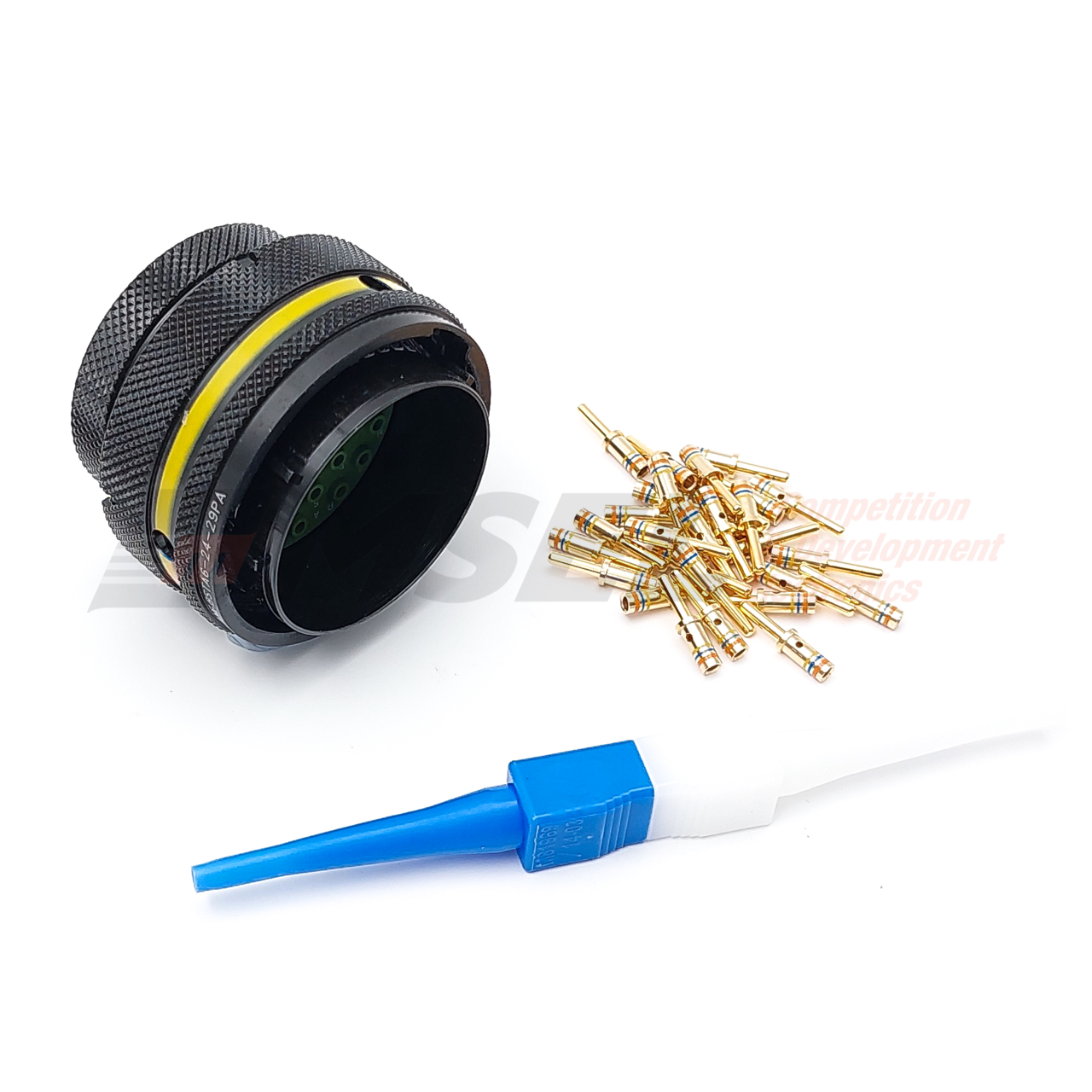

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 62429PN | |
| Connector Type | Plug | |
| Shell Size | 24 | |
| Orientation | Yellow (A) | Will only mate with yellow connectors |
| Number of Contacts | 29 | |
| Contact Size | 16 | Supports 20 to 16AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 13 Amps | |
| Termination Type | Crimp | |
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool | |
| ØA max. | B max. |
| 44.50 | 19.05 |
Note: all dimensions are in millimeters (mm)
