Autosport 3-Way Free Plug With Pins - Red
SKU: CONAS60898PN
Autosport 3-Way Free Plug With Pins - Red
SKU: CONAS60898PN
Summary:
Autosport 608-98PN 3-Way Plug with Pins - Red Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feature Specification Notes Part Num…
Description:
Autosport 608-98PN 3-Way Plug with Pins - Red

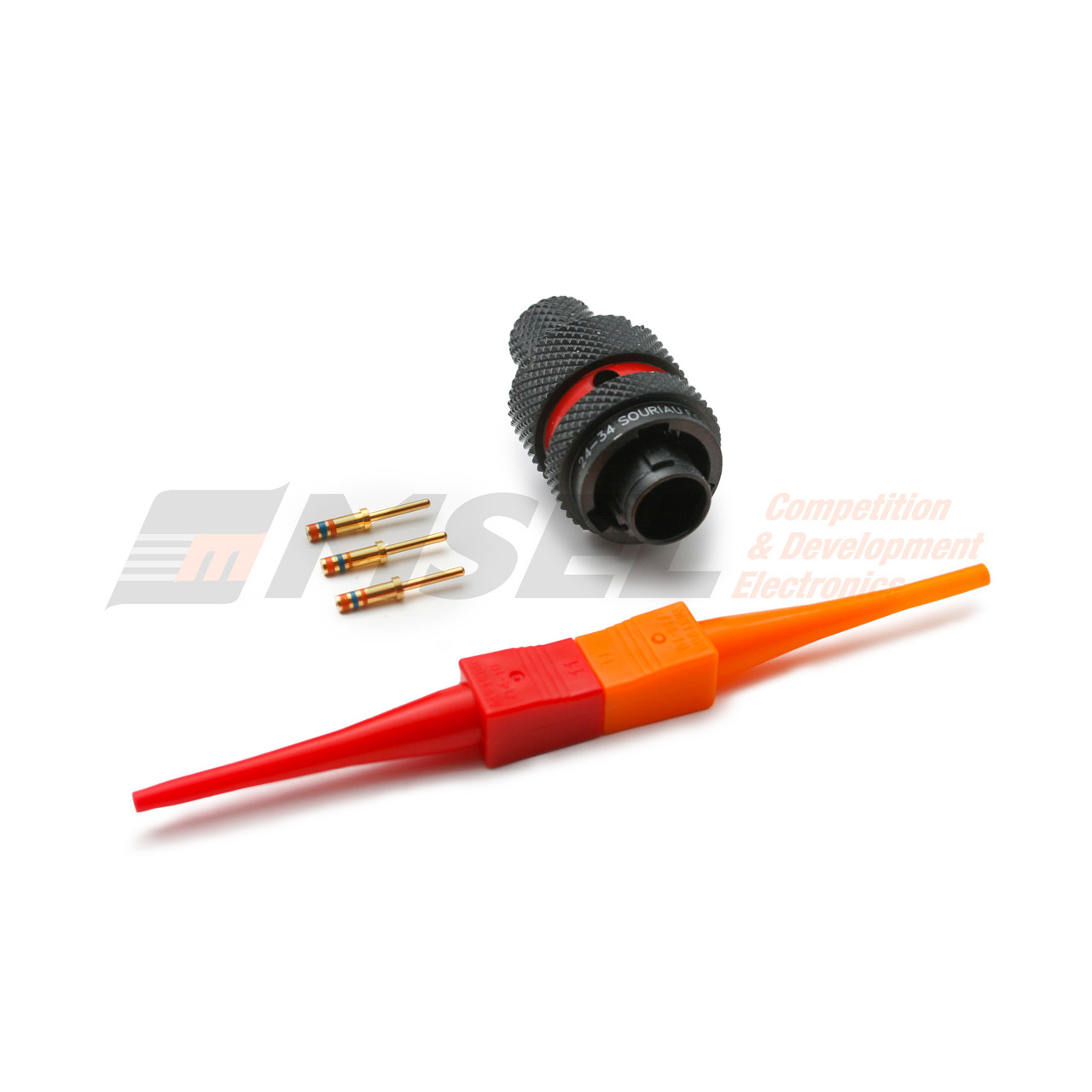

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 60898PN | |
| Connector Type | Plug | |
| Shell Size | 08 | |
| Orientation | Red (N) | Will only mate with red connectors |

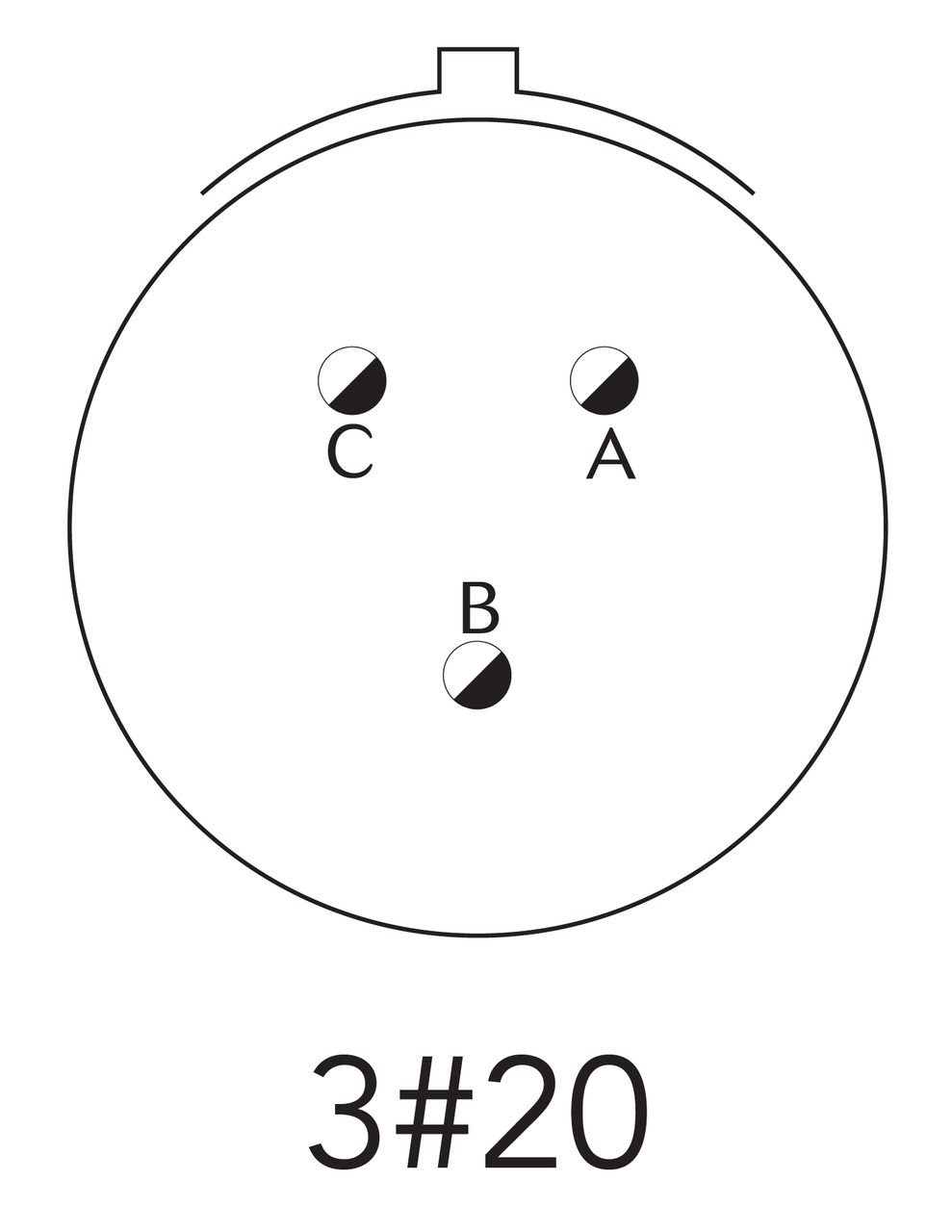

| Number of Contacts | 3 | |
| Contact Size | 20 | Supports 24 to 20AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 7.5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
|
| ØA max. | B max. |
| 18.70 | 18.55 |
Note: all dimensions are in millimeters (mm)
