Autosport 3-Way In-line Receptacle with Sockets - Red
SKU: CONAS10898SN
Autosport 3-Way In-line Receptacle with Sockets - Red
SKU: CONAS10898SN
Summary:
Autosport 3-Way In-line Receptacle with Sockets - Red Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feature Specification Notes…
Description:
Autosport 3-Way In-line Receptacle with Sockets - Red

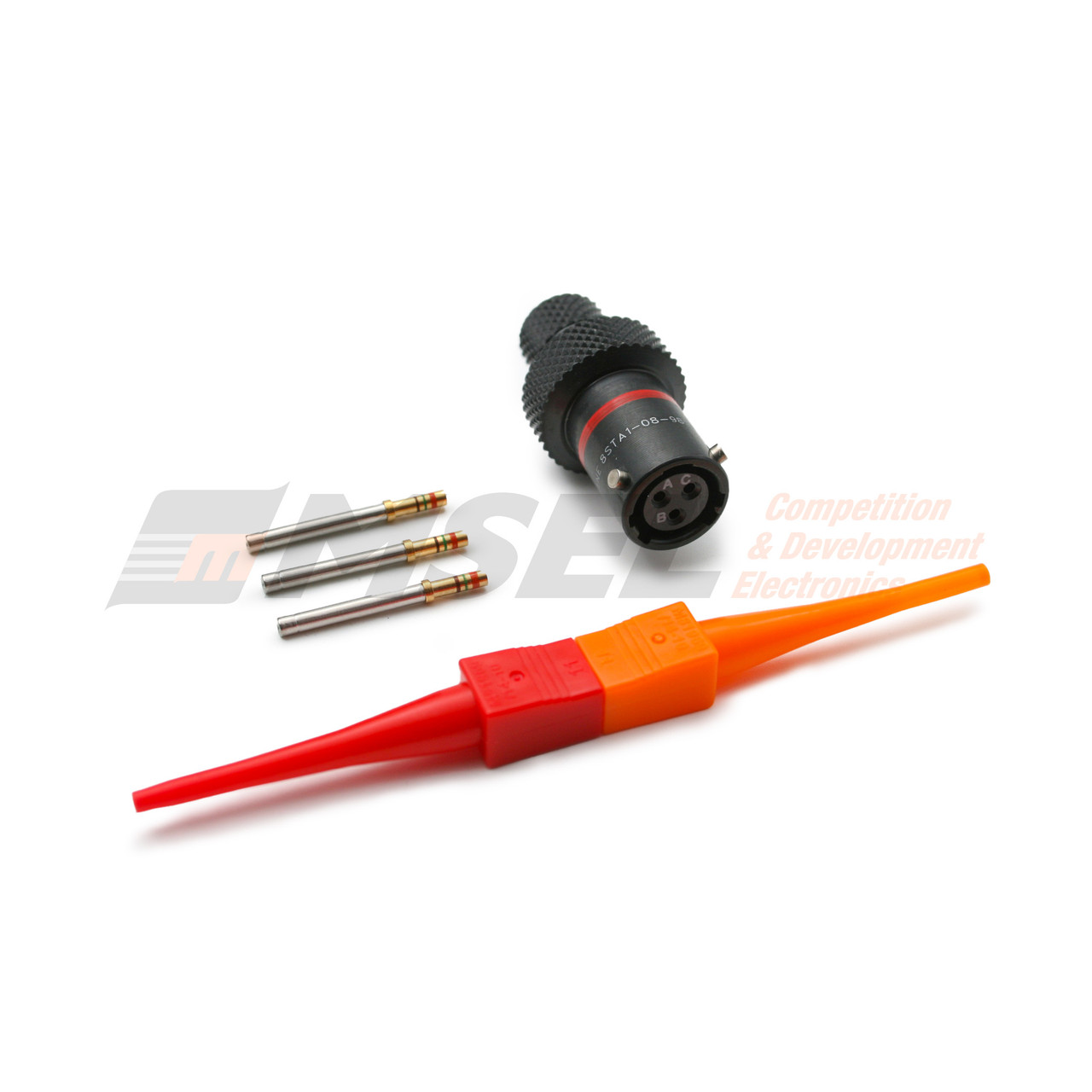

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 108-98SN | |
| Connector Type | In-line Receptacle | |
| Shell Size | 08 | |
| Orientation | Red (N) | Will only mate with red connectors |
| Number of Contacts | 3 |
|
| Contact Size |
20
|
Supports 24 to 20AWG wire
|
| Contact Type |
Socket
|
Female |
| Current Rating |
7.5A
|
|
| Locator | #20 Autosport | |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
| A max. | B max. | C max. |
| 17.70 | 33.50 | 15.00 |
Note: all dimensions are in millimeters (mm)
