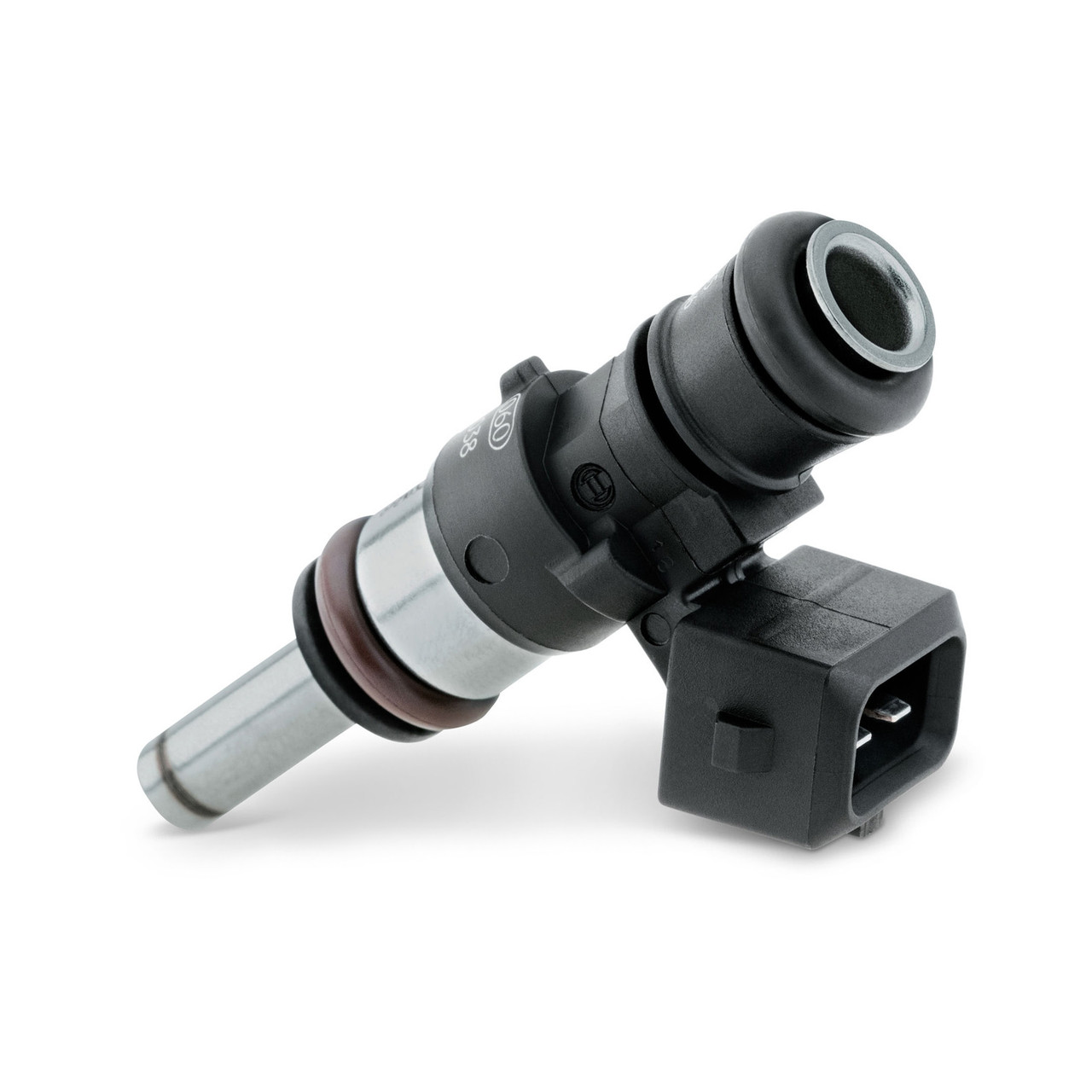

Bosch 347cc High Resistance Fuel Injector with Long Pintle

Dynamically flow tested in New Zealand by us, Motorsport Electronics (MSEL), so your set of injectors is matched within 1% across the entire set.

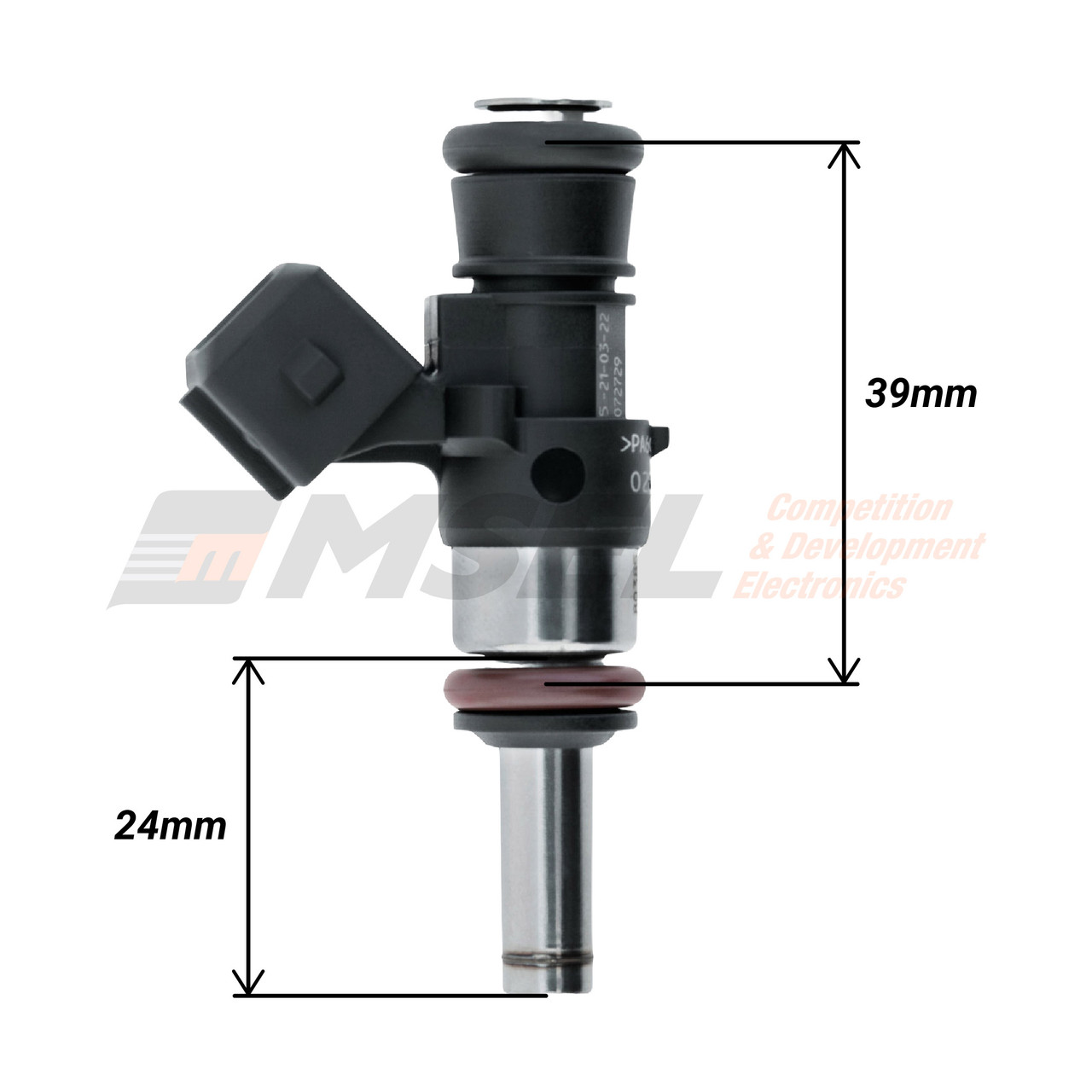

• Measures 39mm from Middle-of-Top O-Ring to Middle-of-Bottom O-Ring
• Measures 24mm from Top-of-Bottom O-Ring to Tip-of-Injector
• 14mm Top and Bottom O-Ring
• 347cc/min at 3 bar (43.5psi)
• Suitable for use with ethanol, methanol as well as most oil based fuels
• Modern design offering extremely good idle control
• Full injector deadtime/battery compensation information is supplied with each set of injectors
• High impedance (high resistance) so no need to add ballast resistors on some ECUs
• Can be supplied with lower adaptors to fit most 14mm lower o-ring applications
• Unmodified Bosch injector

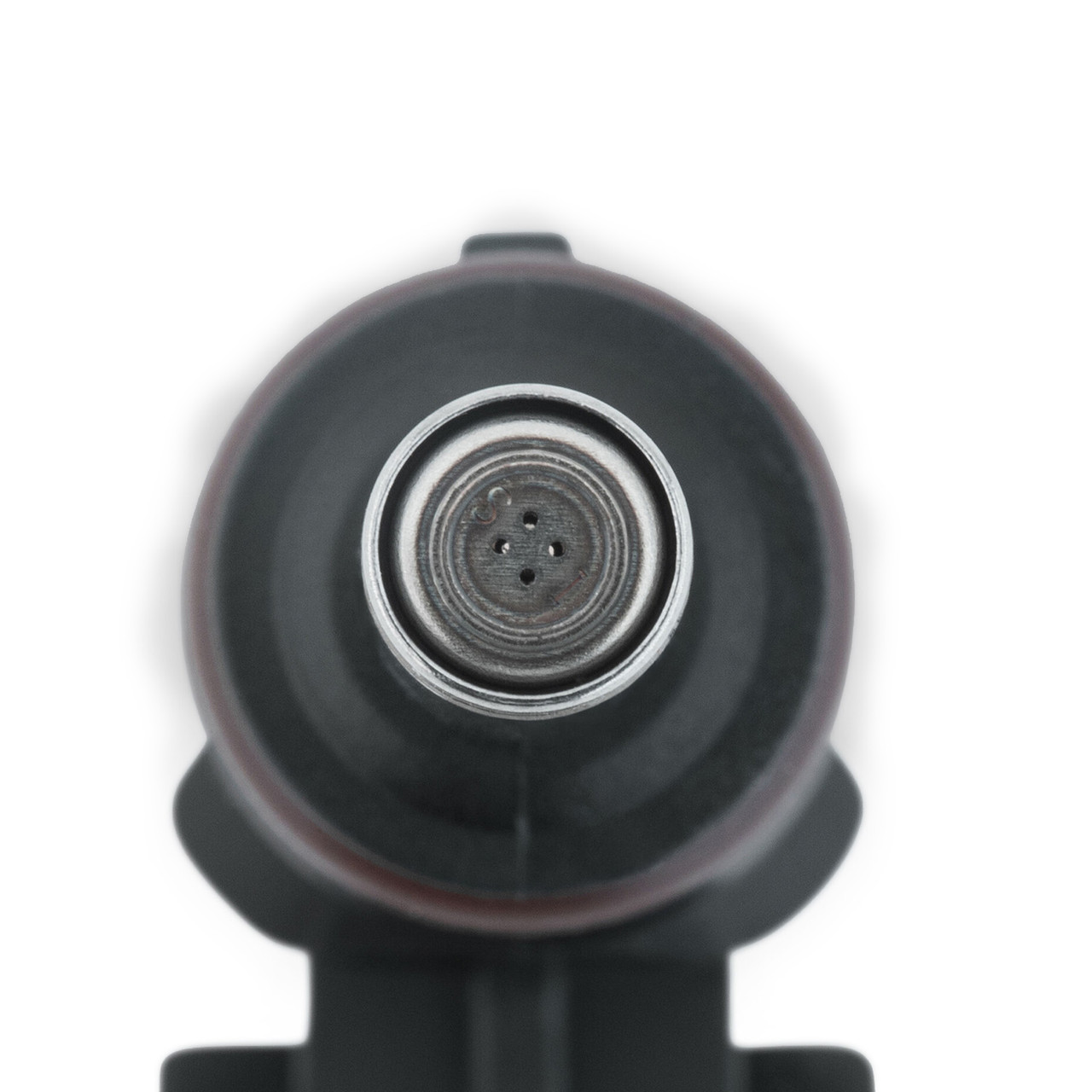

• Single Cone Spray Pattern
• Short length injector

Lower adaptor is an option.

Please note that this injector is a stubby short injector.  With a lower adapter it takes to to being a 3/4 length injector.  Therefore depending on whether you choose a bottom cap will vary what top caps are available to you.
