Colour Deutsch DT 4-Way Connector Kit

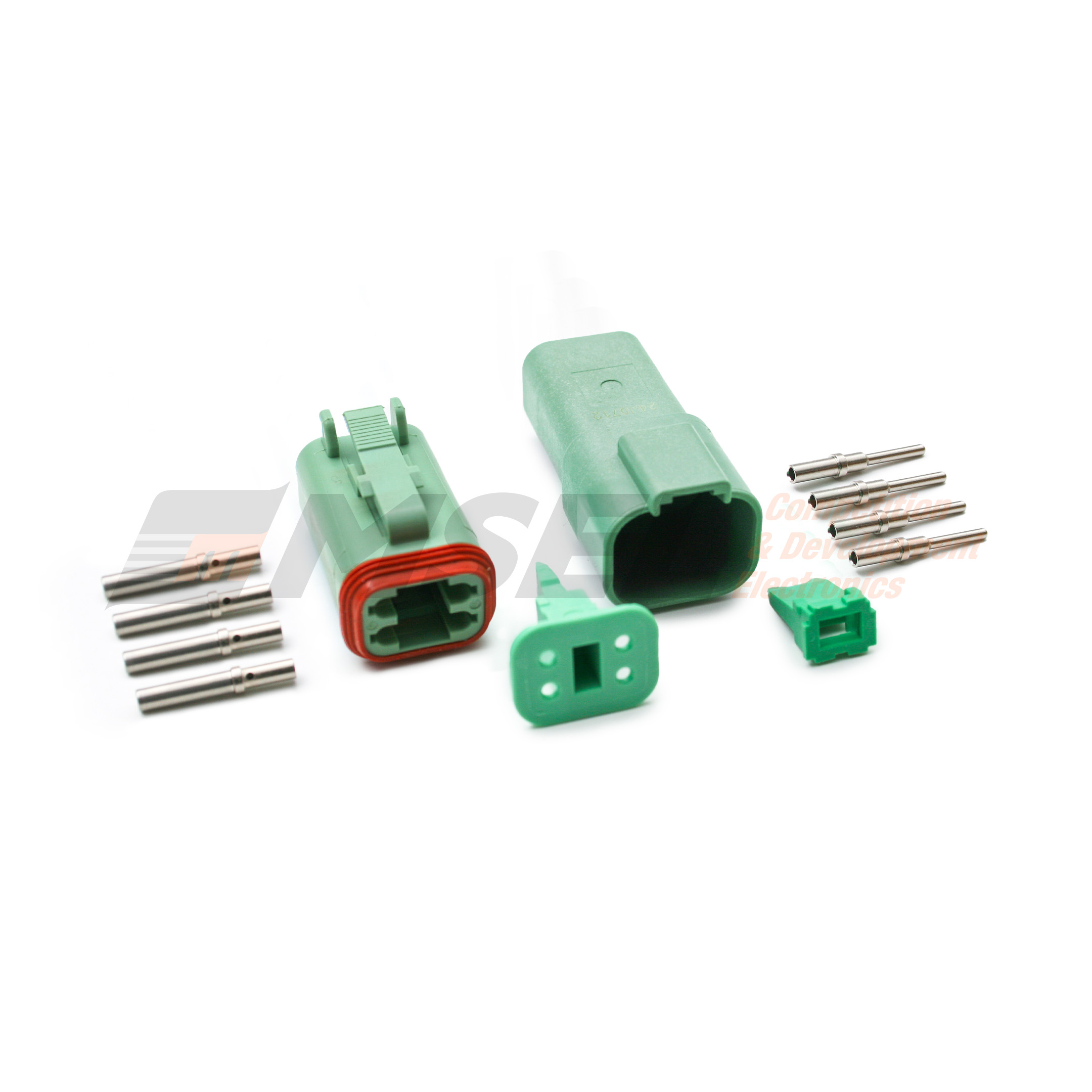

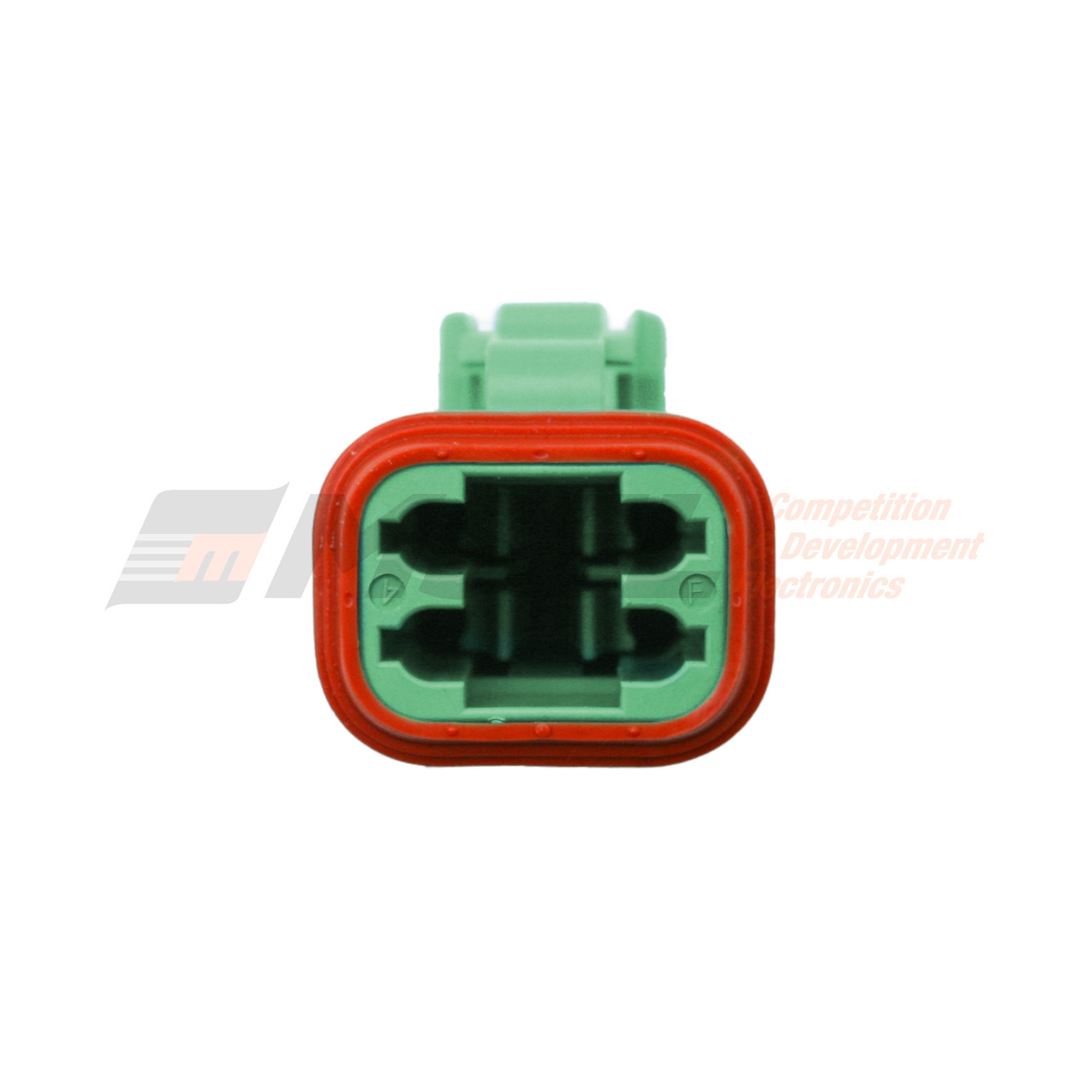

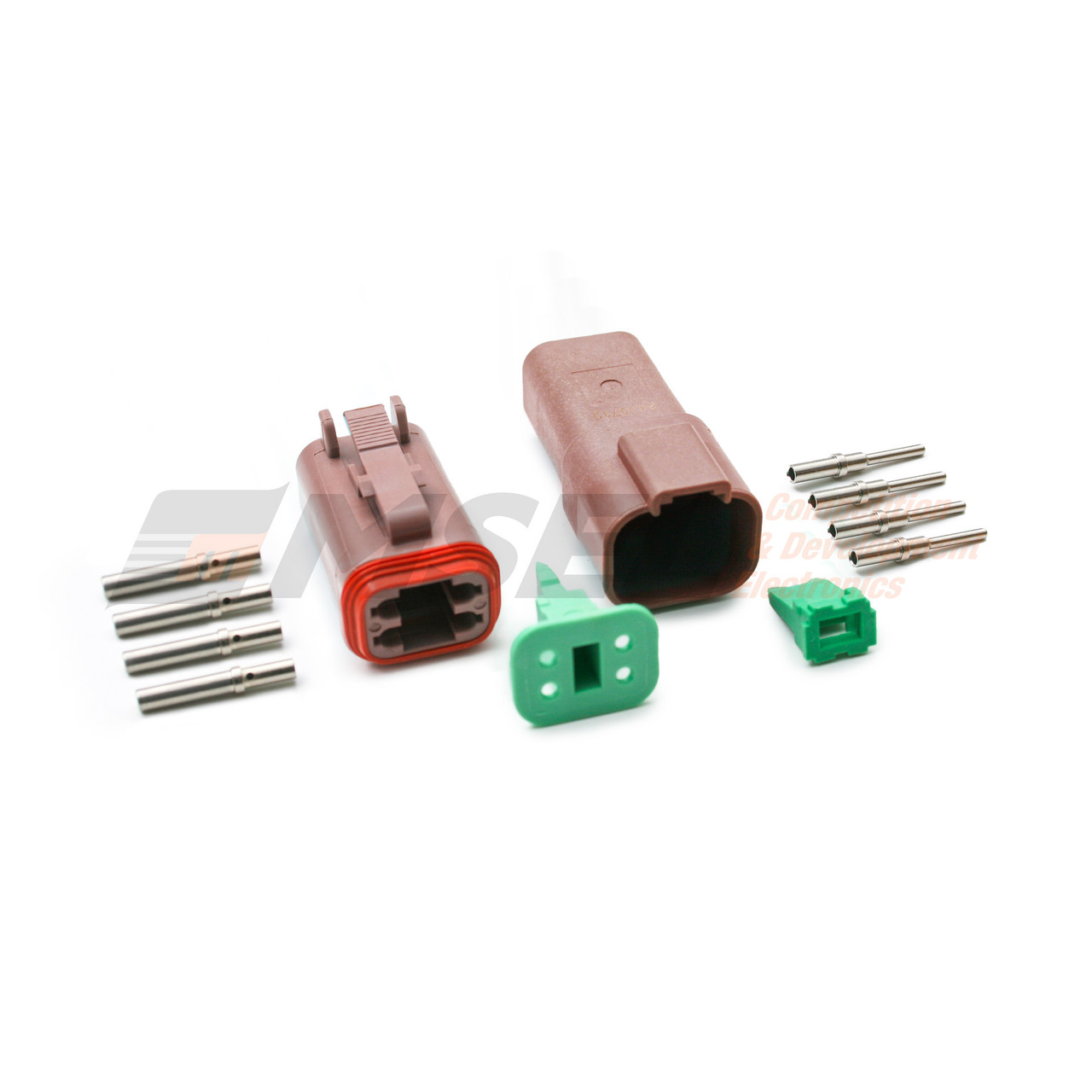

Coloured Deutsch DT 4-way connector kits are supplied in Brown, Blue, and Green variations. Each kit contains the 4-way receptacle (DT04-4P-TN0X), 4-way plug (DT06-4S-TN0X), matching wedges (W4P and W4S), four pins, and four sockets. Available in size 14 and 16 contacts.

Kit Includes:

• 1x Colour Connector Plug Housing
• 1x Colour Connector Receptacle Housing
• 4x Solid formed sockets
• 4x Solid formed pins
• 1x Wedge for Plug
• 1x Wedge for Receptacle

Suited to motorsport harness building where colour-coded identification reduces mating errors.

The Coloured Deutsch DT 4-Way Connector Kit packages a complete 4-position DT connection; receptacle, plug, two wedges, and eight size 14 or 16 contacts (four pin, four socket). MSEL stocks in Blue, Brown, and Green colour variants. Colour-coded DT housings are used to visually identify circuits in motorsport and industrial wiring harnesses, reducing the risk of cross-connection during build, service, and field repair.

According to TE Connectivity (Deutsch) specifications, the DT series is rated to 13A per contact at up to 250V, sealed to IP67/IP68, and operates from −55°C to +125°C, making it the standard sealed connector across motorsport, marine, agricultural, and heavy-duty automotive wiring.
