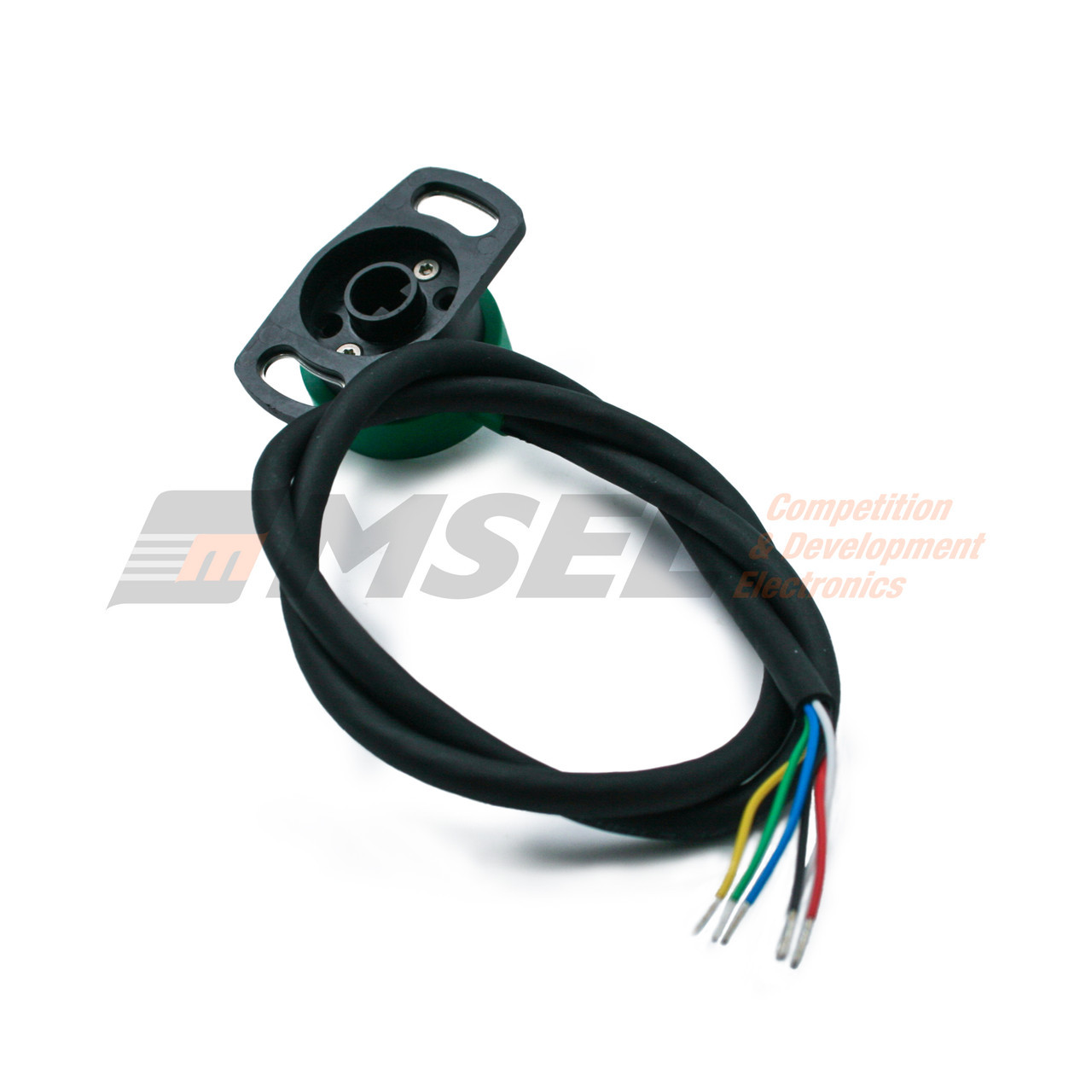

Contactless 32mm Clockwise / Counter Clockwise +-120 Degree 8mm Female D-Drive Rotary Sensor
SKU: SENROTTPS01
Contactless 32mm Clockwise / Counter Clockwise +-120 Degree 8mm Female D-Drive Rotary Sensor
SKU: SENROTTPS01
Summary:
Contactless 32mm Clockwise / Counter Clockwise +-120 Degree 8mm Female D-Drive Rotary Sensor Can be used in either direction as single TPS Sensor Connector Kit. Ideal for measuring throttle position on drive by wire throttle bodies. Features Mechanical Typical Life Cycle >50 million movements (restr…
Description:
Contactless 32mm Clockwise / Counter Clockwise +-120 Degree 8mm Female D-Drive Rotary Sensor
Can be used in either direction as single TPS Sensor Connector Kit. Ideal for measuring throttle position on drive by wire throttle bodies.
Features
Mechanical
| Typical Life Cycle | >50 million movements (restriction by mechanics) |
| Torque | < 0.1 Ncm |
| Measuring Range | 360º redundant, signal 1 CW, signal 2 CCW |
| Housing | High Grade Temperature Resistant Plastic |
| D-Shaft | Nylon 66 |
| Mounting | Customer to ensure correct suitability and fitment of mounting bolts |
Environmental
| Operating Temperature | -40°C to +125°C (Short Term 150°C) |
| Vibration | 5...2000 Hz; Amax = 0.75 mm; Amax = 20g to IEC 60068-2-6 |
| IP Rating | IP68 (minimum) |
Electrical
| Supply Voltage | 5V +/- 0.5V |
| Output Signal | Ratiometric 5%...95% of supply (+/-25mv of specified electrical output range for both start & end voltage) |
| Independent Linearity | +/- 0.5% of each signal range |
| Isolation Resistance | 200 MΩ (500 VDC, 1 bar, 2s) |
| Cable Type | Raychem Spec 55, 24 AWG; Sleeving - Raychem DR25 |

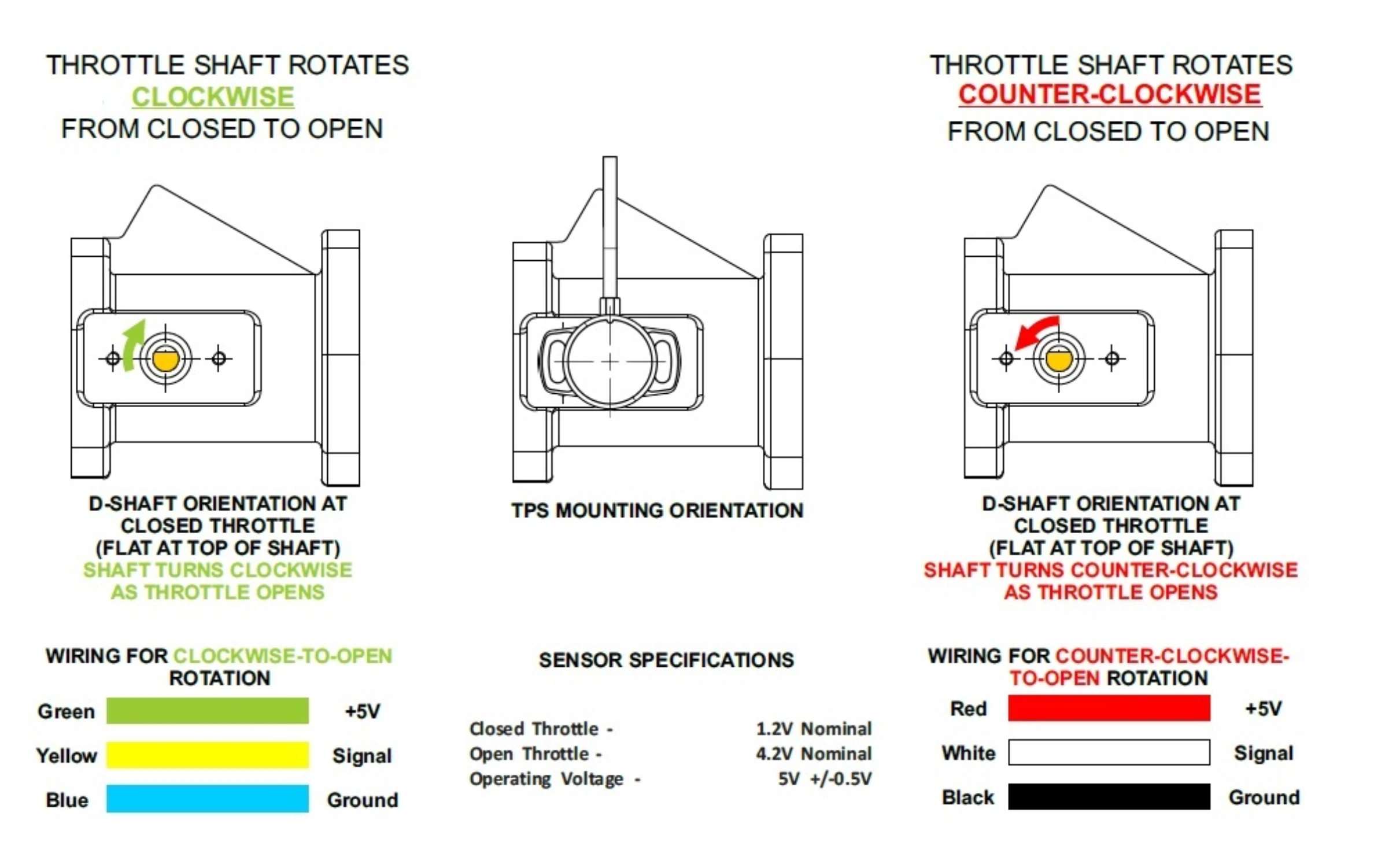

Wiring
Wiring for Clockwise Rotation from Closed to Open:
| Green | +5V |
| Yellow | Signal |
| Blue | Ground |
Wiring for Counter-Clockwise Rotation from Closed to Open:
| Red | +5V |
| White | Signal |
| Black | Ground |
Sensor Dimensions
Mating 8mm D-Shaft detail
