Shop our range of Crimps and Splices from Motorsport Electronics. MSEL stocks U-Splice Crimp Terminals and Parallel Barrel Splices.

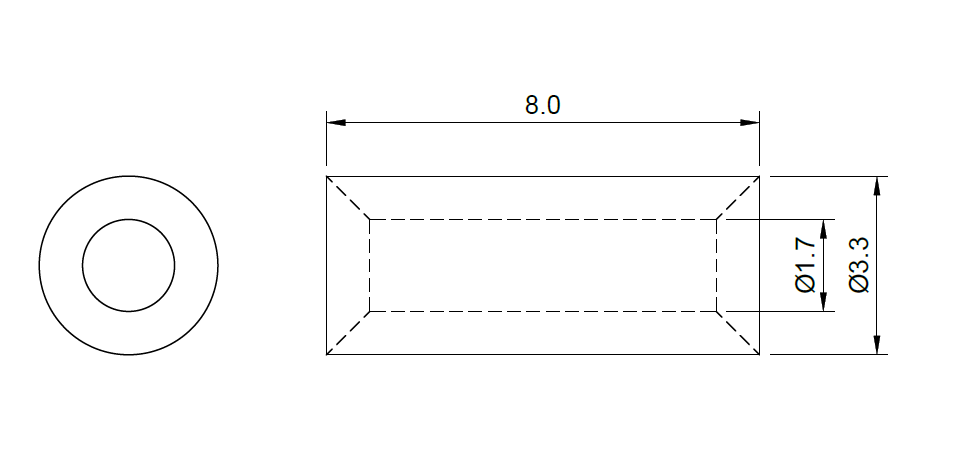

Parallel barrel splice - 22awg to 16awg - 100 pack More robust crimp than open barrel splices. Wire Range AWG mm^2 Part Number Dimension (mm) Pack Qty L D d1 T 22-16awg 0.5 - 1.5mm^2 TERPBS22 8.0 3.3 1.7 0.8 100 16-14awg 1.5 - 2.5mm^2 TERPSB16 8.0 3.9 2.3 0.8 100 12 - 10awg 4-6mm^2 TERPBS12 8.5 5.4…
TERPBS22
Price on request

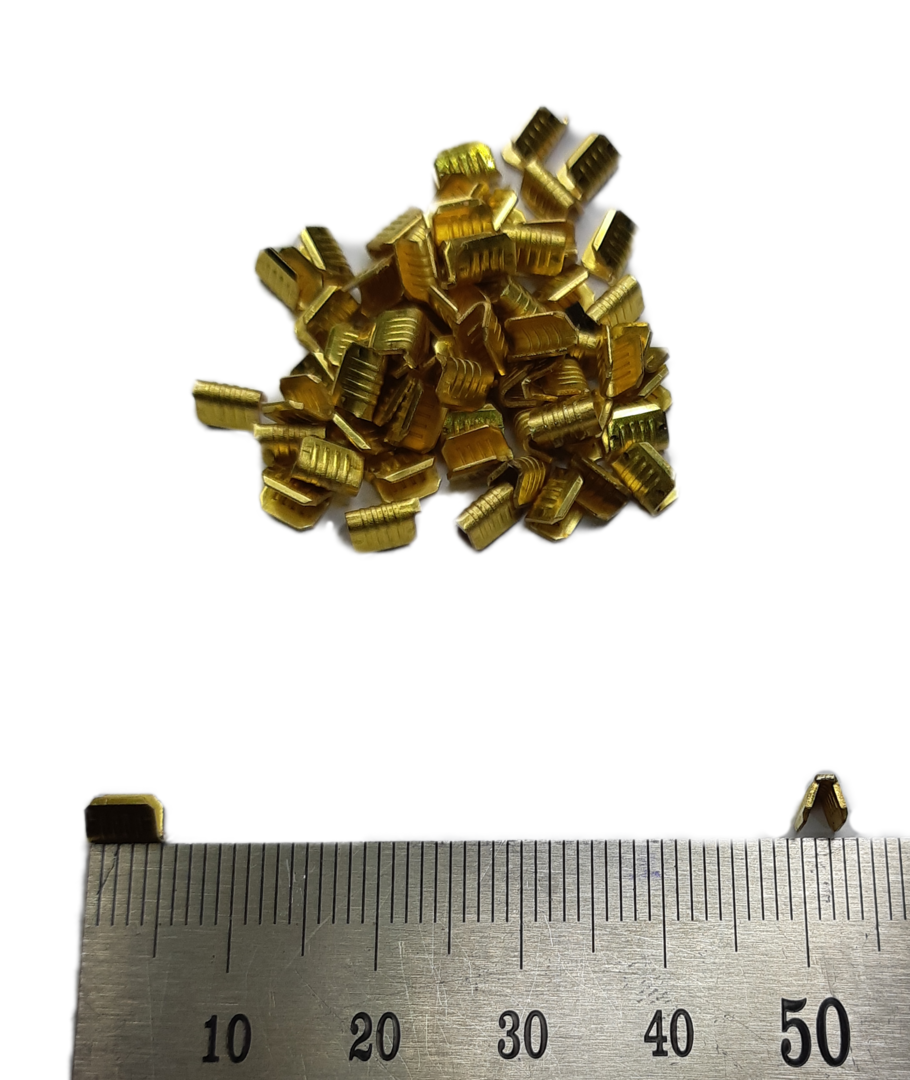

Our 'U' splice crimps offer an easy way to create easy reliable splices in wiring looms. Installation Tip: once you have done the crimp, use a small piece (20mm) of our adhesive lined heatshrink (ATUM or ES2000) to seal the splice, for single ended splices pinch the empty end of the heatshrink with…
TERULRG
Price on request

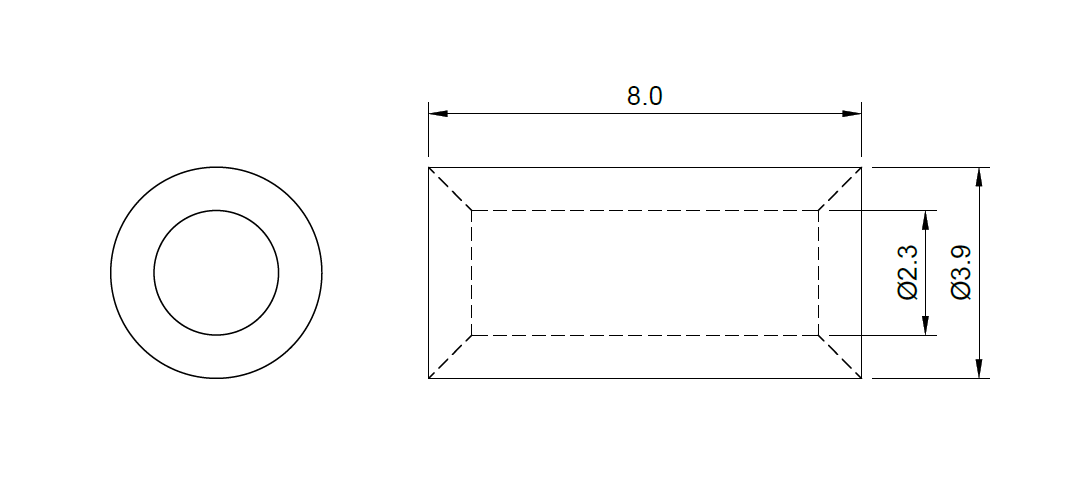

Parallel barrel splice - 16awg to 14awg - 100 pack More robust crimp than open barrel splices. Wire Range AWG mm^2 Part Number Dimension (mm) Pack Qty L D d1 T 22-16awg 0.5 - 1.5mm^2 TERPBS22 8.0 3.3 1.7 0.8 100 16-14awg 1.5 - 2.5mm^2 TERPSB16 8.0 3.9 2.3 0.8 100 12 - 10awg 4-6mm^2 TERPBS12 8.5 5.4…
TERPBS16
Price on request

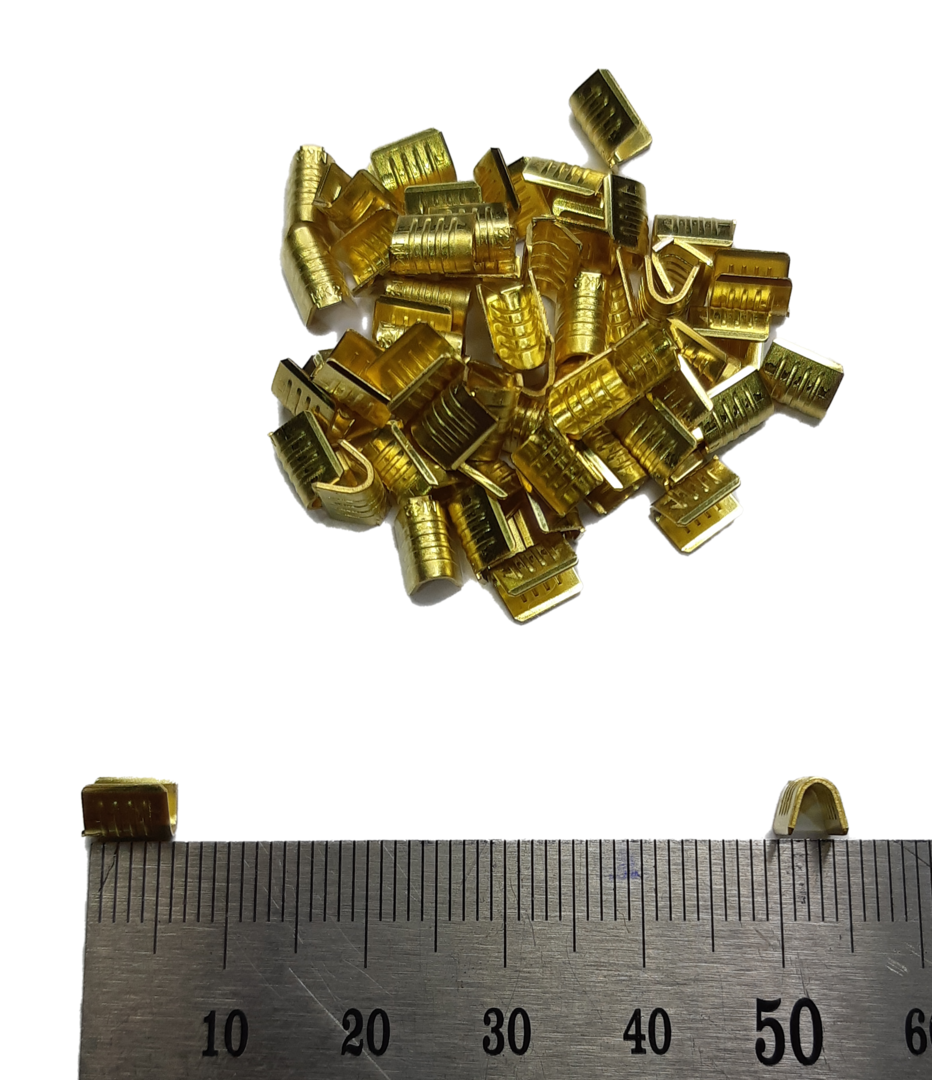

Our 'U' splice crimps offer an easy way to create easy reliable splices in wiring looms. Installation Tip: once you have done the crimp, use a small piece (20mm) of our adhesive lined heatshrink (ATUM or ES2000) to seal the splice, for single ended splices pinch the empty end of the heatshrink with…
TERUMED
Price on request

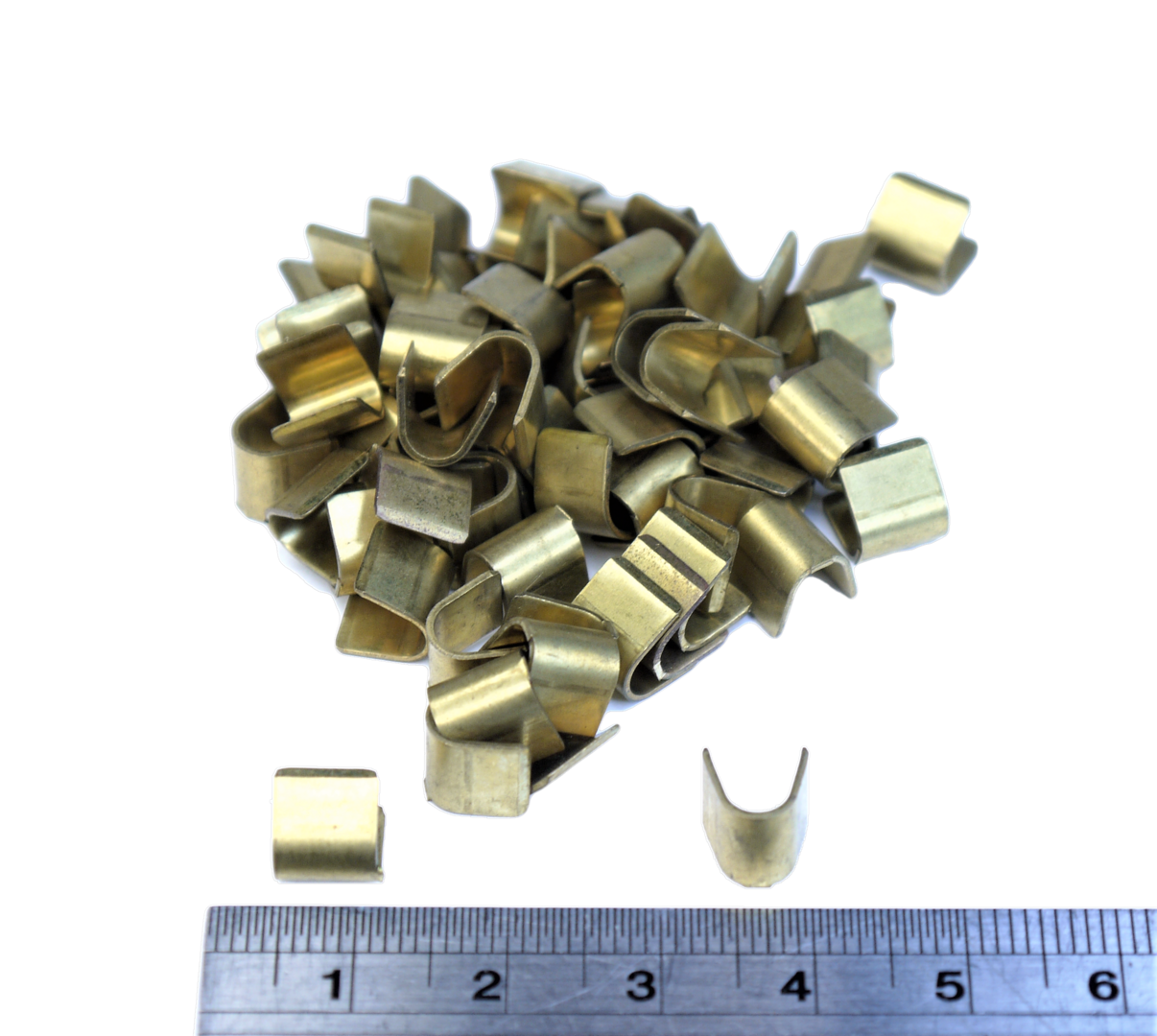

Our open barrel 'U' splice crimps offer an easy way to create easy reliable splices in wiring looms. Installation Tip: once you have done the crimp, use a small piece (20mm) of our adhesive lined heatshrink (ATUM or ES2000) to seal the splice. For single ended splices pinch the empty end of the heat…
TERUSML
Price on request

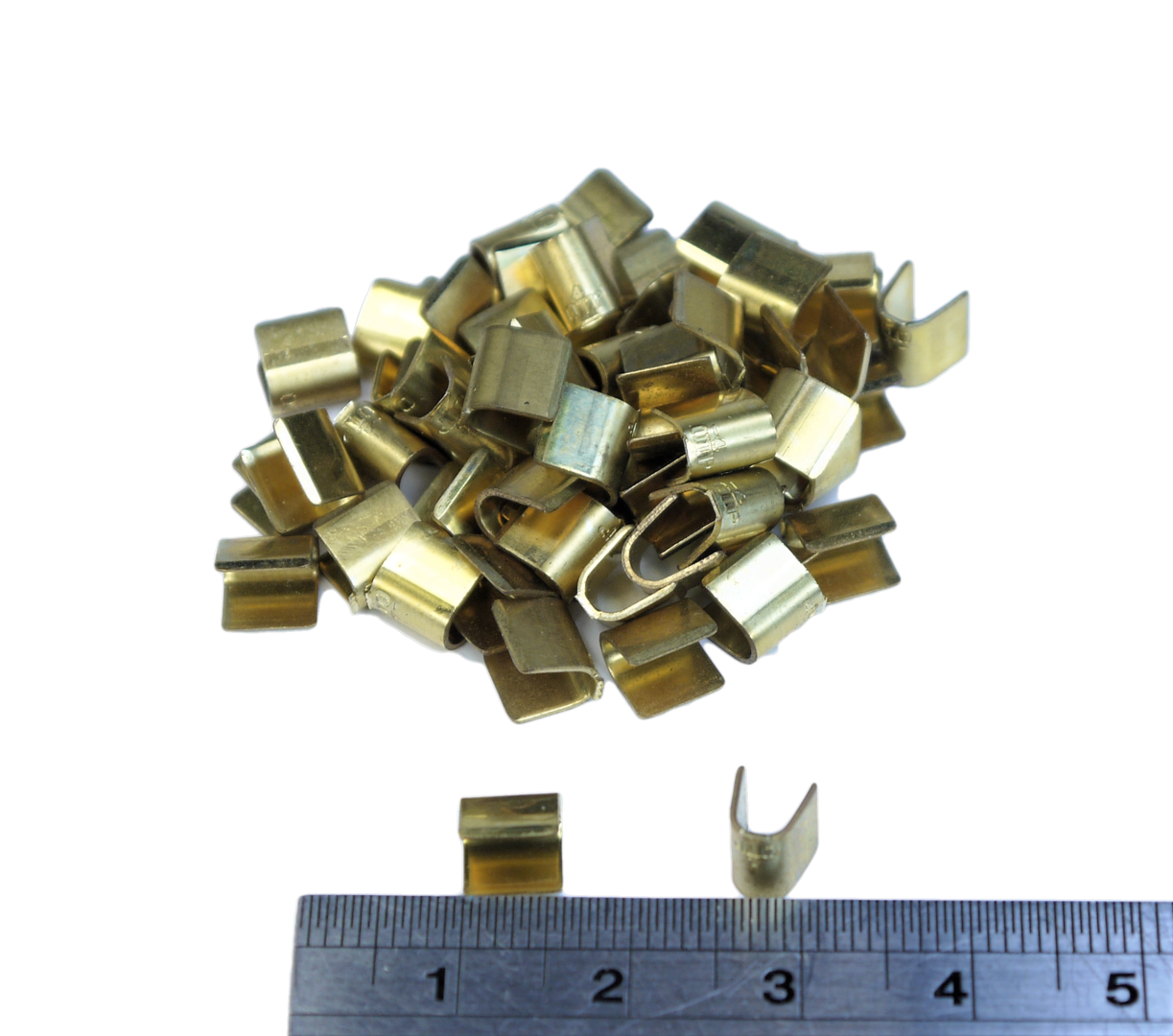

Our 'U' splice crimps offer an easy way to create easy reliable splices in wiring looms. Installation Tip: once you have done the crimp, use a small piece (20mm) of our adhesive lined heatshrink ( ATUM or ES2000 ) to seal the splice. For single ended splices pinch the empty end of the heatshrink wit…
TERUMIN
Price on request

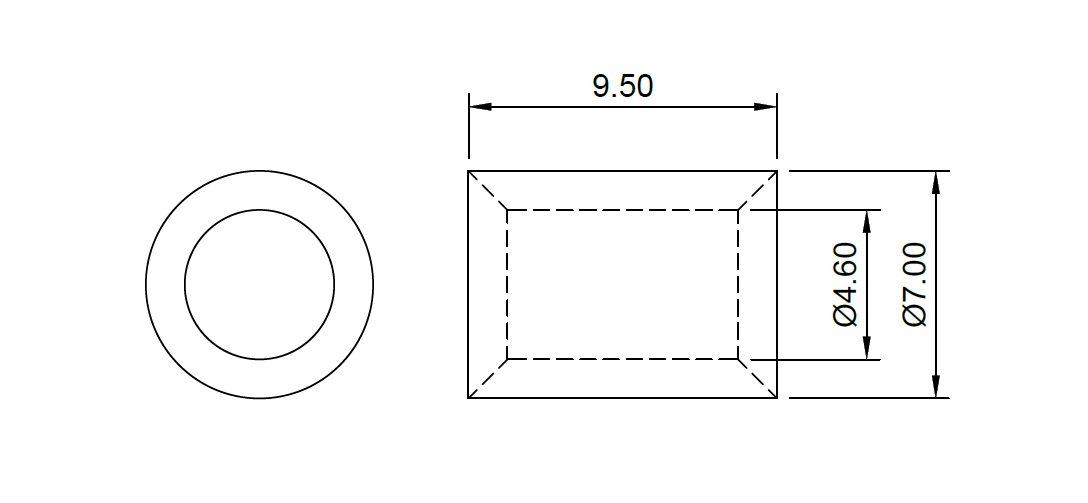

Parallel barrel splice - 8awg - 25 pack More robust crimp than open barrel splices. Wire Range AWG mm^2 Part Number Dimension (mm) Pack Qty L D d1 T 22-16awg 0.5 - 1.5mm^2 TERPBS22 8.0 3.3 1.7 0.8 100 16-14awg 1.5 - 2.5mm^2 TERPSB16 8.0 3.9 2.3 0.8 100 12 - 10awg 4-6mm^2 TERPBS12 8.5 5.4 3.4 1.0 50…
TERPBS8
Price on request

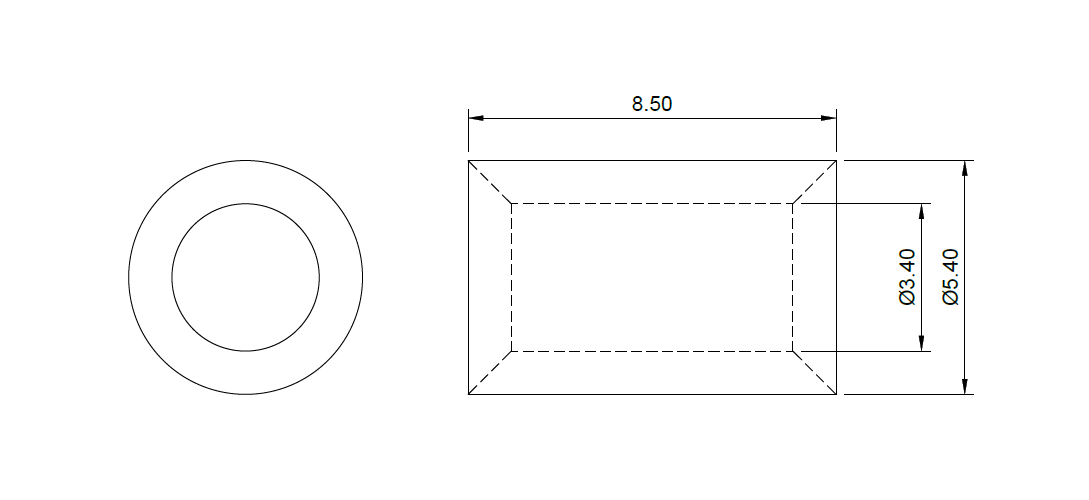

Parallel barrel splice - 12awg to 10awg - 50 pack More robust crimp than open barrel splices. Wire Range AWG mm^2 Part Number Dimension (mm) Pack Qty L D d1 T 22-16awg 0.5 - 1.5mm^2 TERPBS22 8.0 3.3 1.7 0.8 100 16-14awg 1.5 - 2.5mm^2 TERPSB16 8.0 3.9 2.3 0.8 100 12 - 10awg 4-6mm^2 TERPBS12 8.5 5.4 3…
TERPBS12
Price on request
