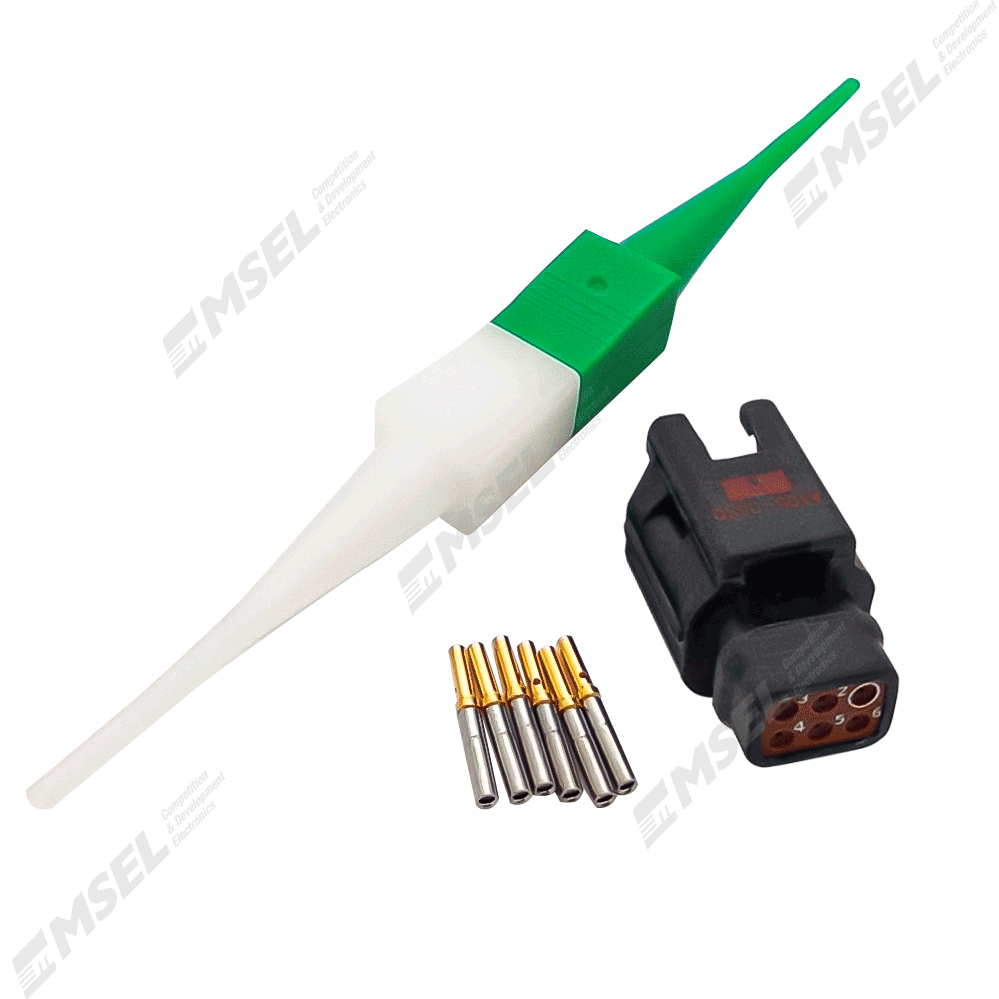

Deutsch Autosport Composite ASC105-06SN receptacle with red keyway and sockets

Made as one unit in a rugged military approved thermoplastic housing, the AS composite connector is extremely resistant to vibration and corrosion.

• 6 size #22 terminals (22awg to 26awg wire)
• gold plated crimp terminals
• ultra light weight (2.5g lighter than ASL)
• heat shrink gland integrated onto the back of the connector housing
• environmentally sealed to IP67
• cable tie slot for security
• close stacking possible with locating sides and bottom

Note that connectors are sold in halves so the mating half needs to purchased separately.
