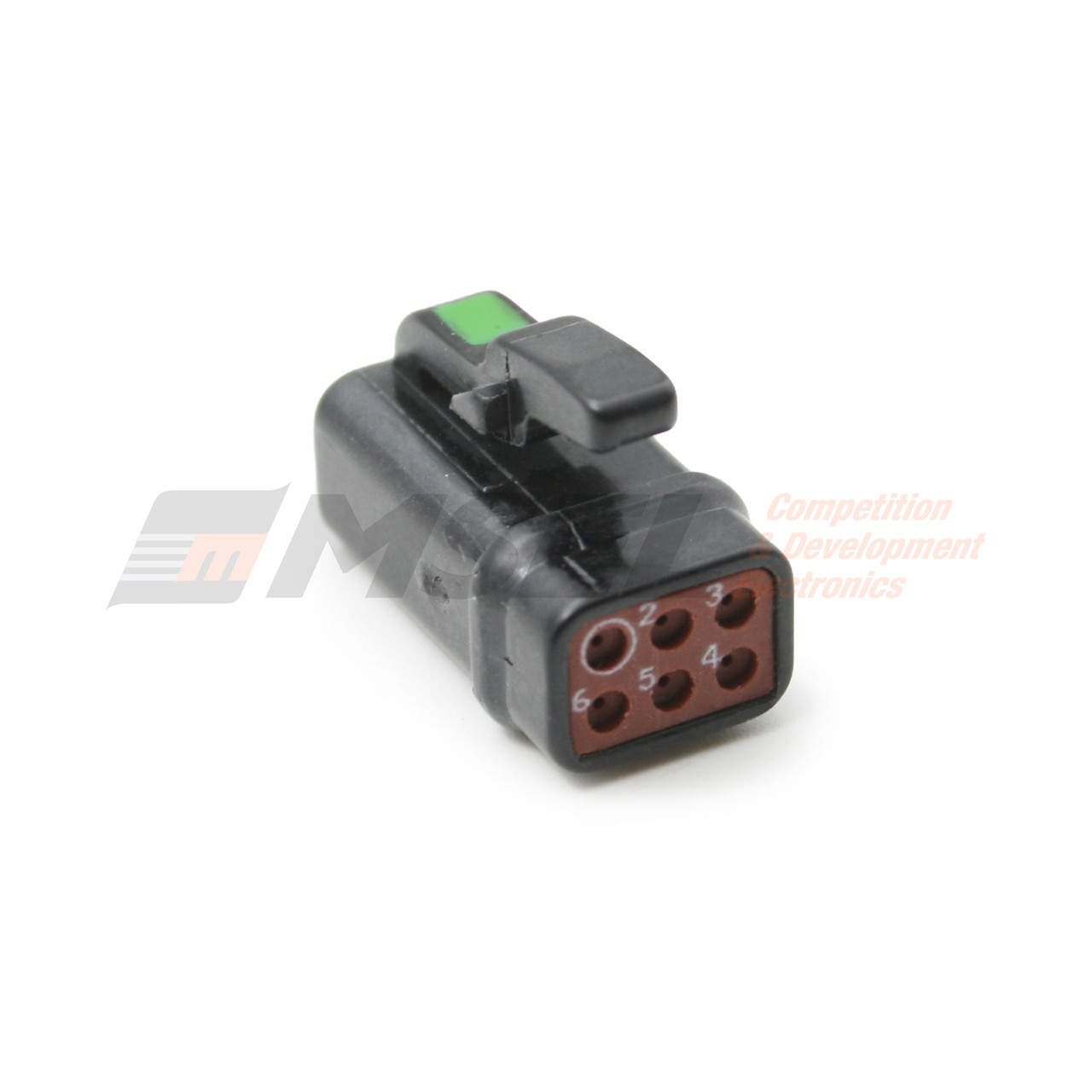

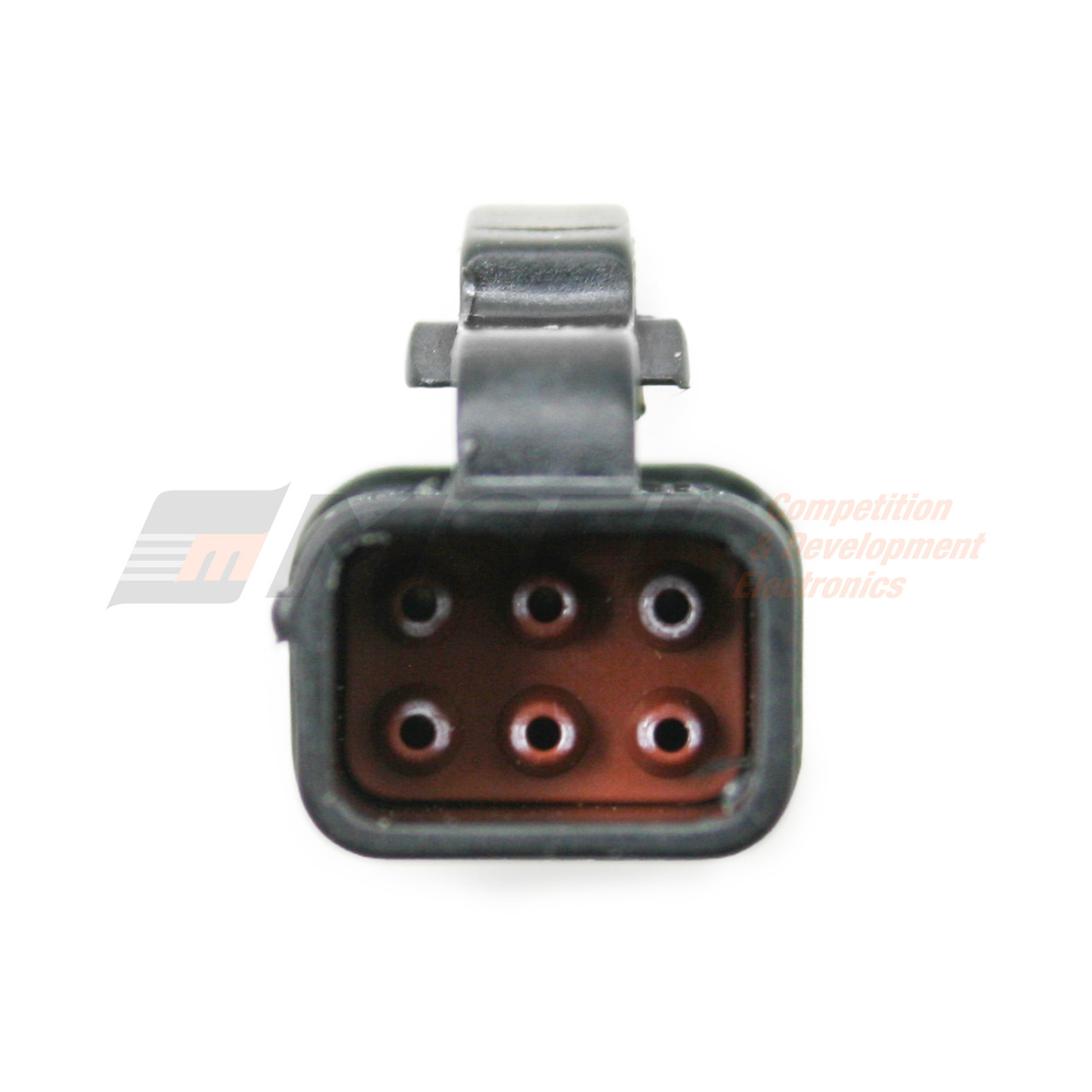

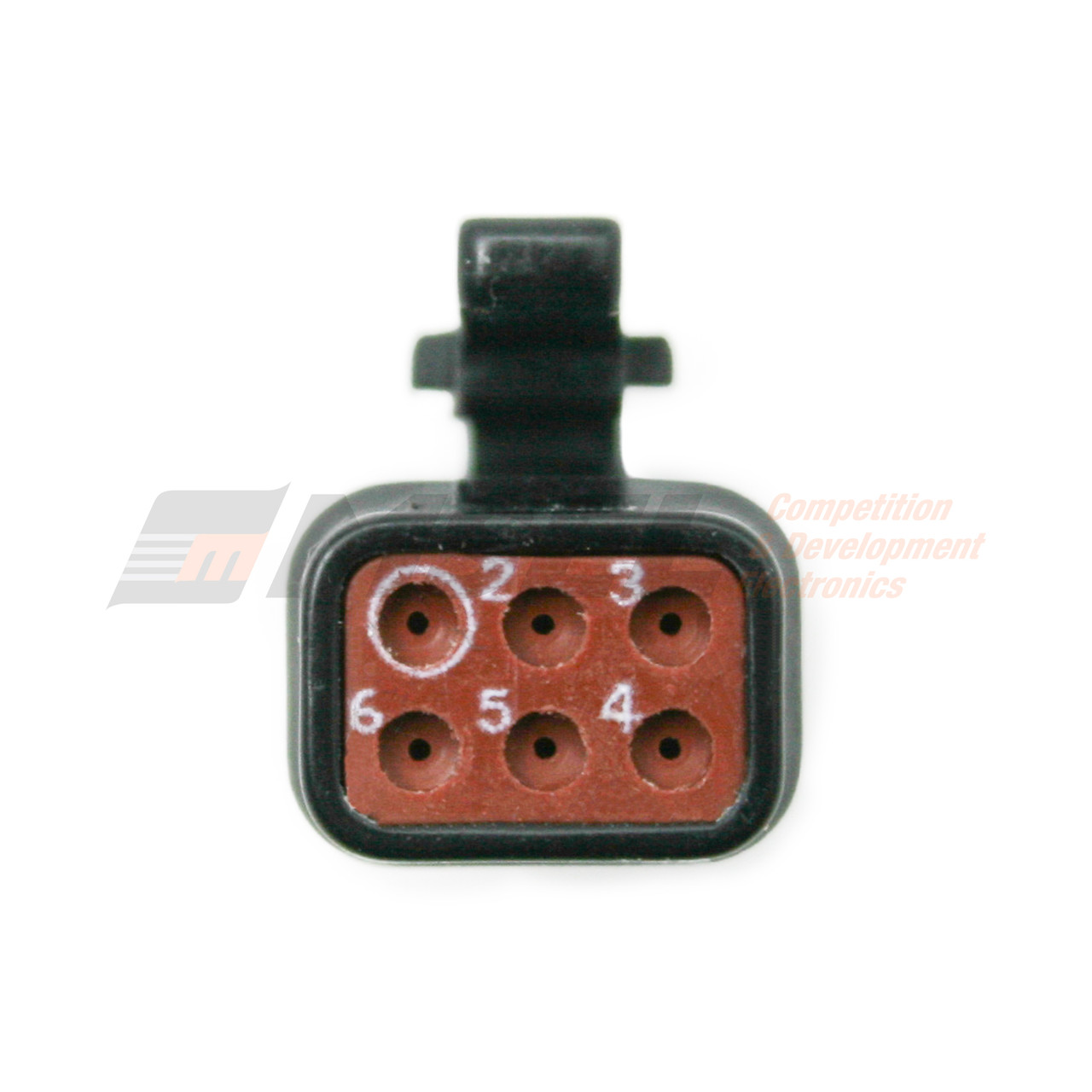

Deutsch Autosport Composite ASC605-06PD receptacle with green keyway and pins

Made as one unit in a rugged military approved thermoplastic housing, the AS composite connector is extremely resistant to vibration and corrosion.

• 6 size #22 terminals (22awg to 26awg wire)
• gold plated crimp terminals
• ultra light weight (2.5g lighter than ASL)
• heat shrink gland integrated onto the back of the connector housing
• environmentally sealed to IP67
• cable tie slot for security
• close stacking possible with locating sides and bottom

Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.

Note that connectors are sold in halves so the mating half needs to purchased separately.
