Deutsch Autosport Lite 5-Way Bulkhead Connector with Size 23 Pins - Red
SKU: CONASL00605PN
Deutsch Autosport Lite 5-Way Bulkhead Connector with Size 23 Pins - Red
SKU: CONASL00605PN
Summary:
Deutsch Autosport Lite 5-Way Bulkhead Connector with Size 23 Pins - Red Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feature Sp…
Description:
Deutsch Autosport Lite 5-Way Bulkhead Connector with Size 23 Pins - Red

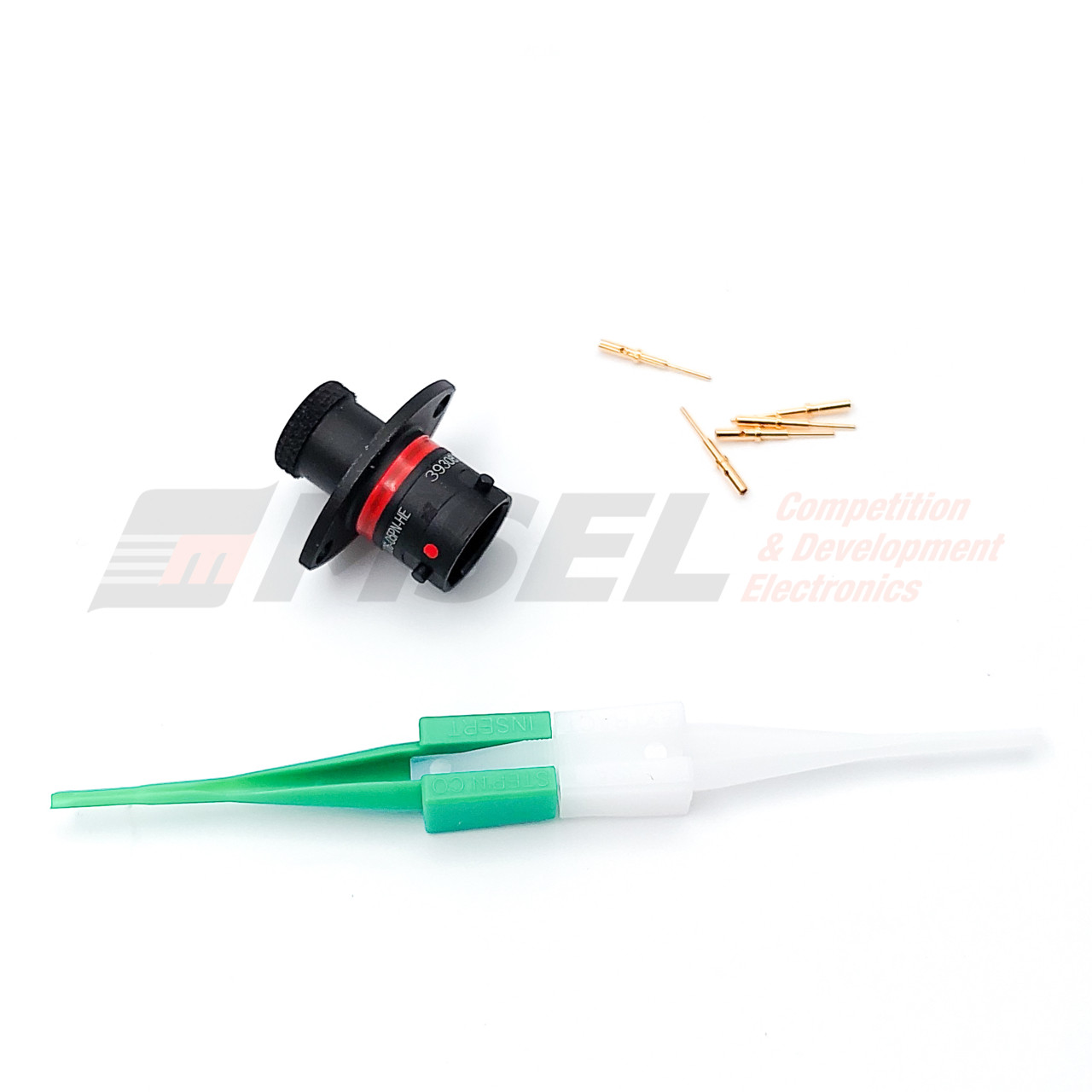

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 00605PN | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 06 | |
| Orientation | Red (N) | Will only mate with red connectors |
| Number of Contacts | 5 | |
| Contact Size | 23 | |
| Contact Type | Pins | Male |
| Current Rating | 3 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOC1414 | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
|
Note: all dimensions are in millimeters (mm)
