Deutsch Autosport Lite 5-Way Bulkhead Connector with Size 23 Sockets - Yellow
SKU: CONASL00605SA
Deutsch Autosport Lite 5-Way Bulkhead Connector with Size 23 Sockets - Yellow
SKU: CONASL00605SA
Summary:
Deutsch Autosport Lite 5-Way Bulkhead Connector with Size 23 Sockets - Yellow Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feat…
Description:
Deutsch Autosport Lite 5-Way Bulkhead Connector with Size 23 Sockets - Yellow

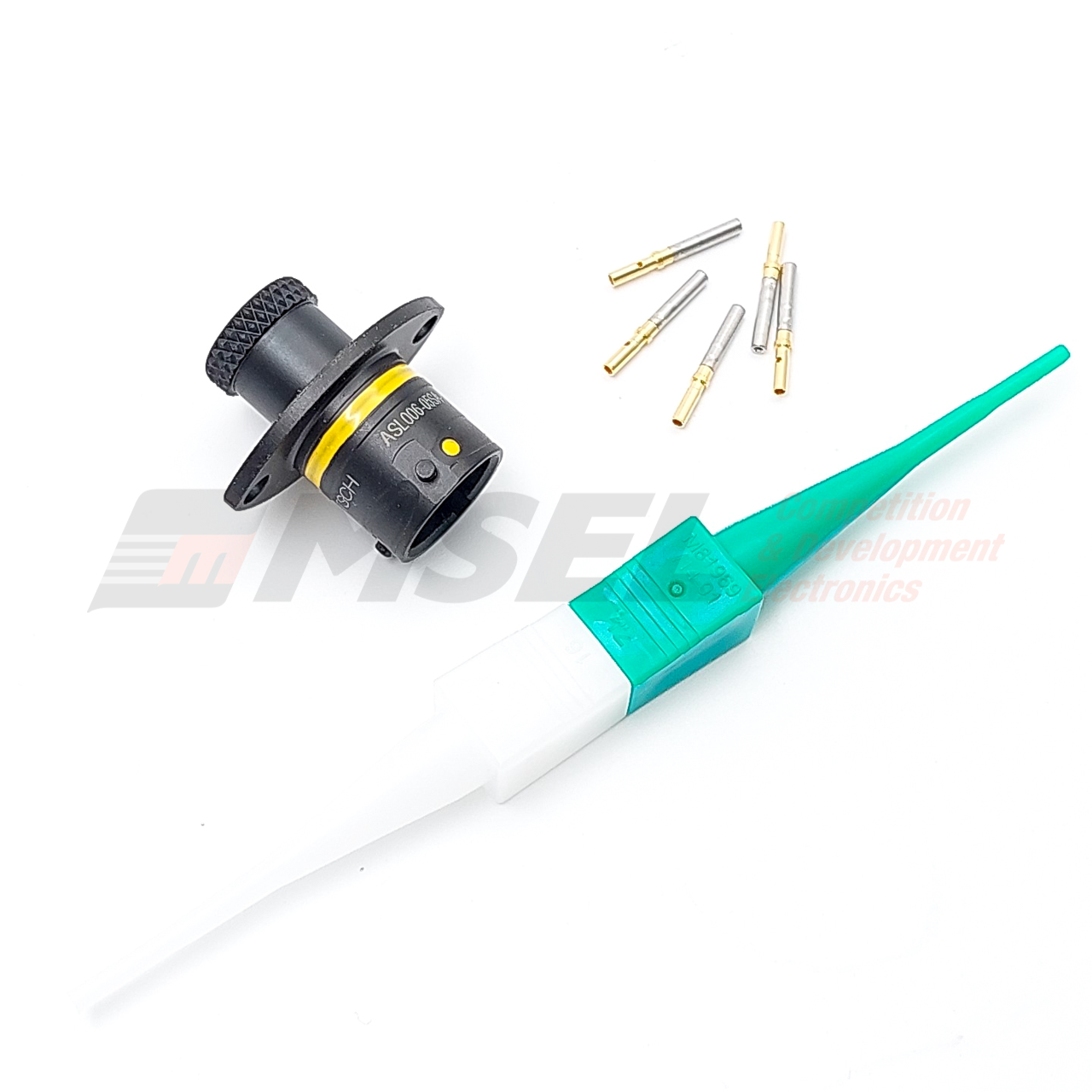

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 00605SA | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 06 | |
| Orientation | Yellow (A) | Will only mate with yellow connectors |
| Number of Contacts | 5 | |
| Contact Size | 23 | Supports 28 to 22AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 3 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOC1414 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool | |
Note: all dimensions are in millimeters (mm)
