Deutsch Autosport Lite 5-Way Plug Connector with size 23 Pins - Red
SKU: CONASL60605PN
Deutsch Autosport Lite 5-Way Plug Connector with size 23 Pins - Red
SKU: CONASL60605PN
Summary:
Autosport Lite 5-Way Plug Connector size 23 Pins - Red Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feature Specification Notes…
Description:
Autosport Lite 5-Way Plug Connector size 23 Pins - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 60605PN | |
| Connector Type | Plug | |
| Shell Size | 06 | |
| Orientation | Red (N) | Will only mate with red connectors |
| Number of Contacts | 5 | |
| Contact Size | 23 | |
| Contact Type | Pin | Male |
| Current Rating | 3 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOC1413 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool | |

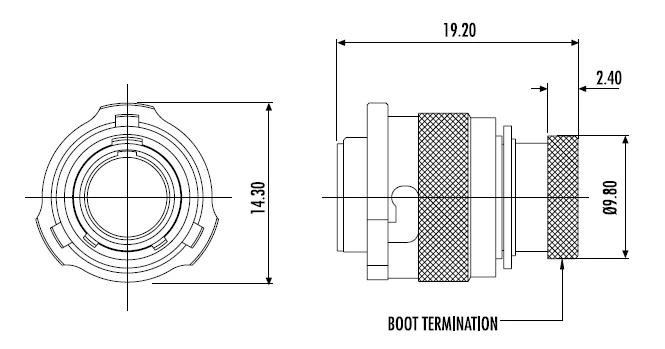

Note: all dimensions are in millimeters (mm)
