Deutsch DT-XT 18-Way Plug Kit
SKU: CONXT06-18SK-14
Deutsch DT-XT 18-Way Plug Kit
SKU: CONXT06-18SK-14
Summary:
Deutsch DT-XT 18-Way Plug Kit Great for when you need more than a 12-way DT connector. Keeps your connector count down. Size 16 contacts which support up to 15amps per circuit. Select the terminals to suit your wire gauge above. Kit Includes 1 x connector plug housing 18 x solid formed sockets inser…
Description:
Deutsch DT-XT 18-Way Plug Kit
Great for when you need more than a 12-way DT connector. Keeps your connector count down.
Size 16 contacts which support up to 15amps per circuit. Select the terminals to suit your wire gauge above.

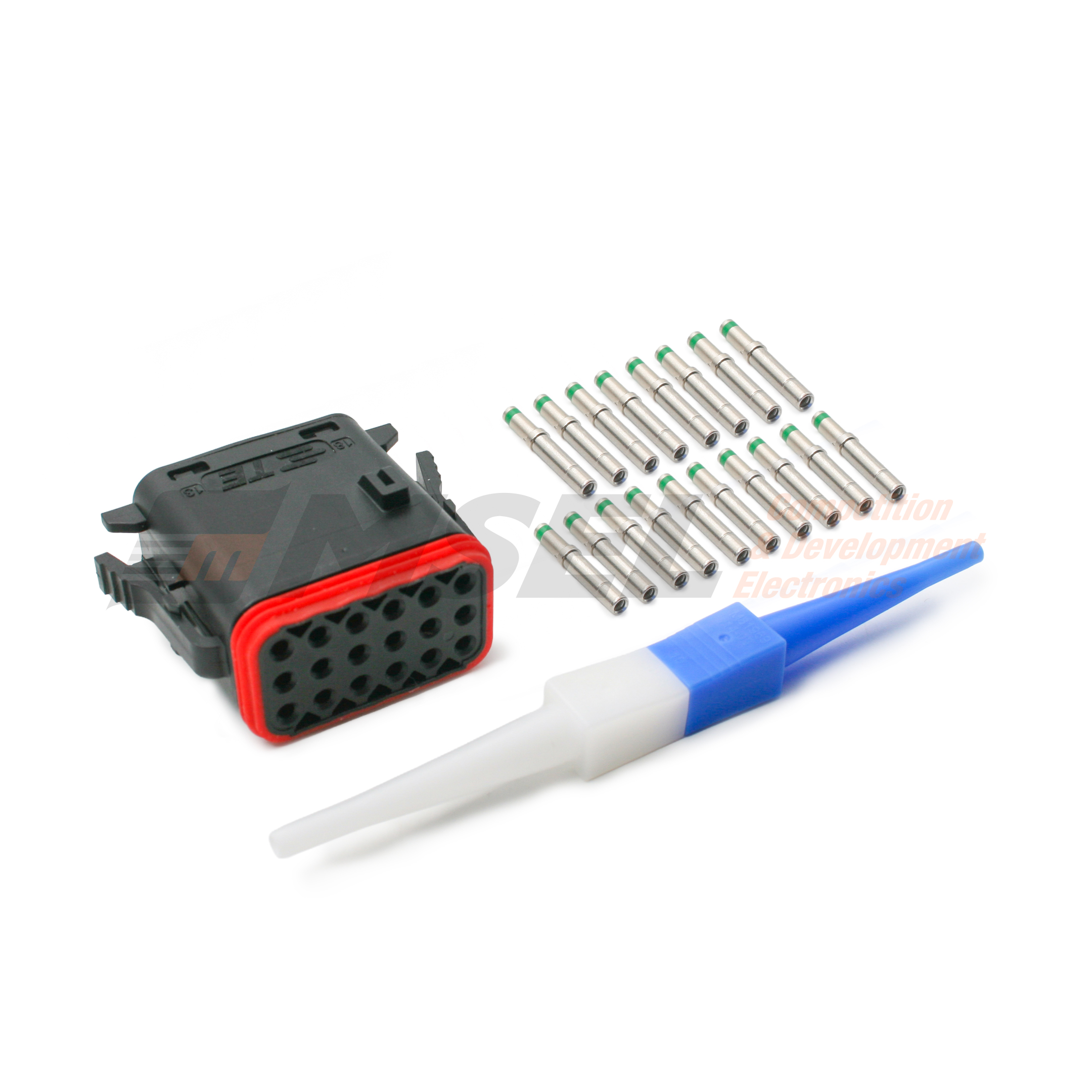

Kit Includes
- 1 x connector plug housing
- 18 x solid formed sockets
- insert / removal tool
Supplied with 14-16AWG sockets as standard. Select the 16AWG - 20AWG option above if you are going to be using smaller gauge wire.
Key Features
| General |
| Keying Option: | A |
| Number of Positions: |
18 |
| Number of Rows: | 3 |
| Housing Material: | Thermoplastic |
| Primary Product Colour: | Black |
| Electrical |
| Nominal Voltage Architecture: | 12V |
| Mechanical |
| Contact Type: | Socket |
| Contact Size: |
Size 16 |
| Mating Pin Diameter: |
1.55mm [0.061in] |
| Mating Alignment: | With |
| Mating Alignment Type: | Keyed |
| Connector Mounting Type: | Cable Mount (Free-Hanging) |
| Centreline (Pitch): | 4.66mm [0.183in] |
| Environmental |
| Temp Range[1]: | -55 to 125°C |
| Max Temp: | 125°C |
[1] Temperature range is for reference only, and may/may not include temperature rise.
See related products for the receptacle side kit, and the full kit containing both sides of the connector.
