Deutsch DTM 4-Way Plug Kit No Heat Shrink Gland

The Deutsch DTM 4-way plug kit is a compact, sealed, four-circuit harness connector for low-current signal and accessory wiring. This version is supplied without a heat shrink gland, a cost effective alternative to the regular DTM connectors.

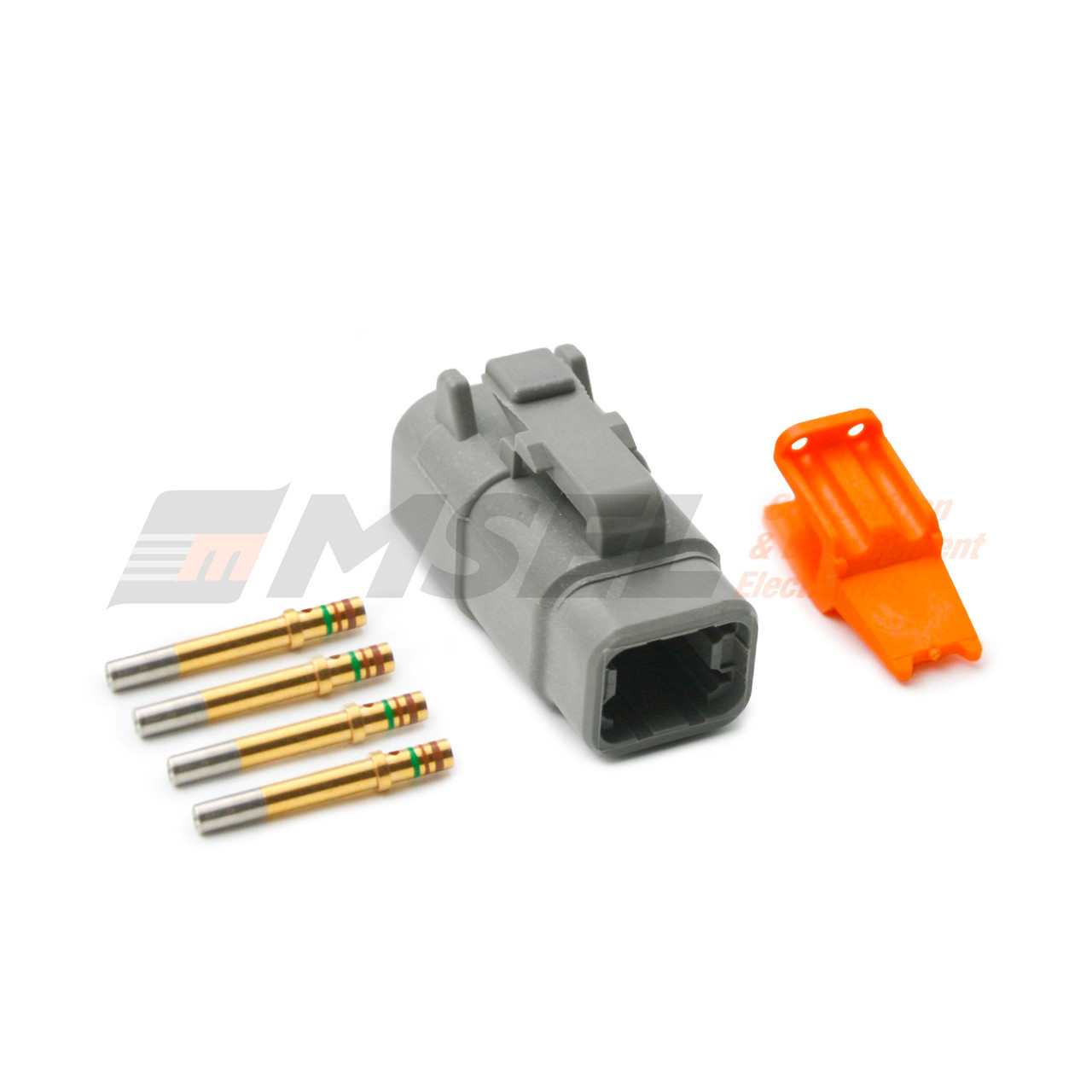

Kit Includes:

• 1x Deutsch DTM 4-Way Plug Housing
• 1x Orange Locking Wedge
• 4x Gold Coated Size 20 DTM Terminals

See related products for full kit containing both sides of the connector

Key Value Features

OEM Deutsch Connector Part Numbers

With Backshell:	DTM06-4S-E007
Without Backshell:	DTM06-4S

Key Features

General

Sealing:	Matte Sealed
Number of Ways:	4
Contact Size:	Size 20
Wire Size:	20AWG - 24AWG
Number of Rows:	2
Pitch:	4.2mm
Row Spacing:	7.1mm

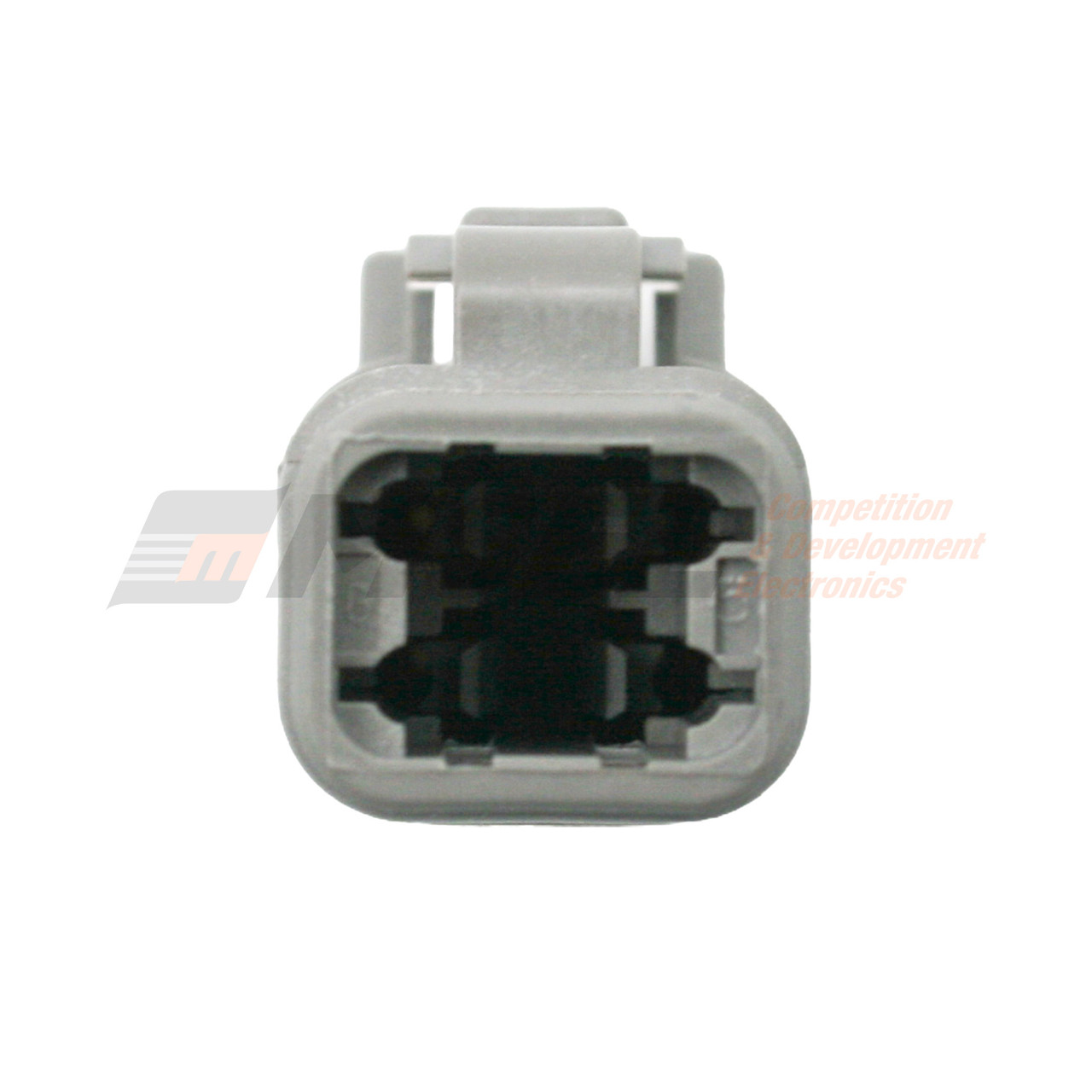

Numbered Cavities:	Yes, numbered

Mechanical

Contact Type:	Female Socket, Circular
Termination:	Multi-option
Lance Type:	Housing Lance
Housing Material:	PA66+GF

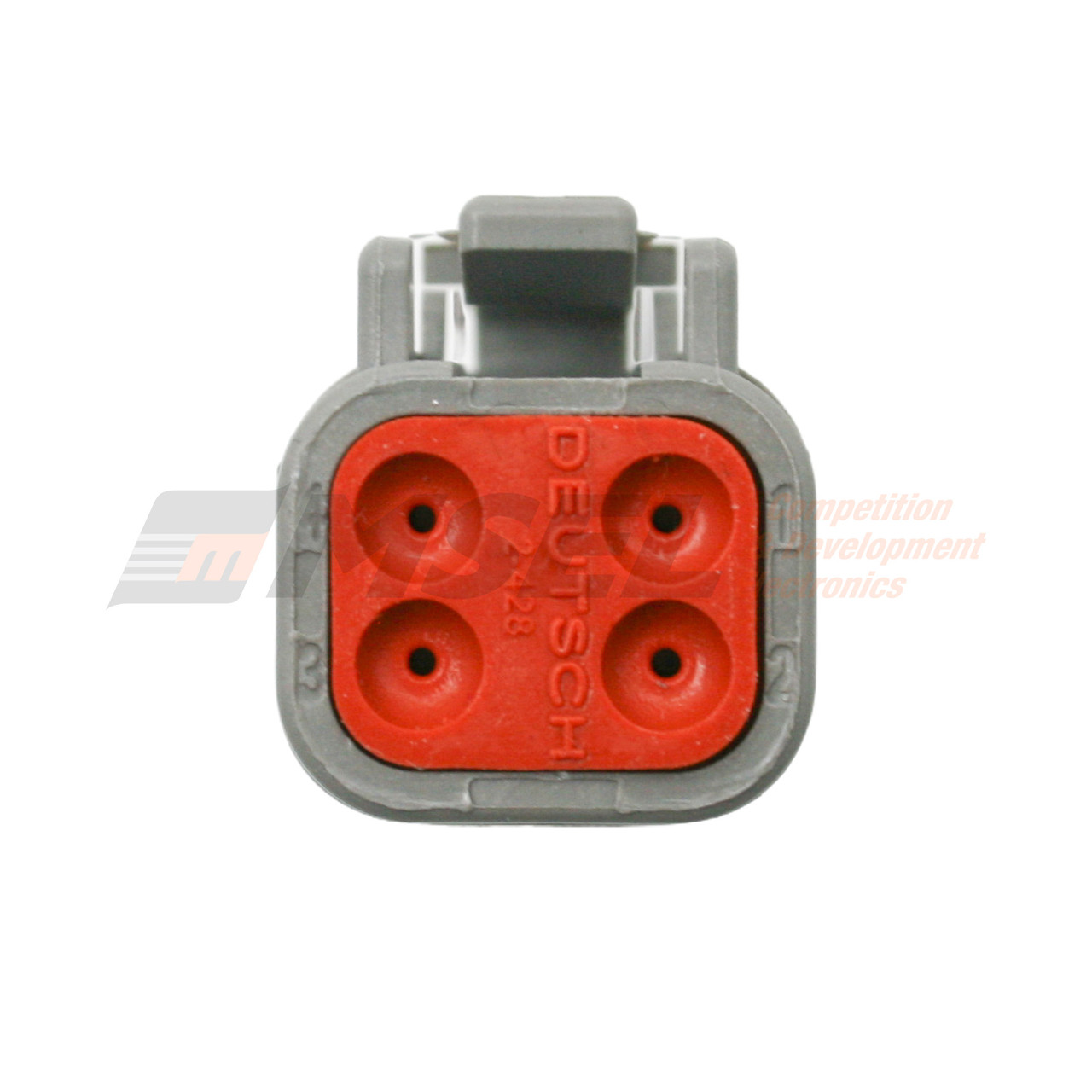

Seal Material:	Silicone Rubber
Mounting Style:	Free hanging
TPA:	Yes
CPA:	No

Electrical

Current Rating[1]:	7.5A
Voltage Rating:	250V (AC,DC)

Environmental

Temp Range[2]:	-55 - 125°C
Protection Rating:	IP68, IP6K9K with Filler Pins Installed
Flammability Range:	UL94 V-0

[1] Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
[2] Temperature range is for reference only, and may/may not include temperature rise. For detailed characteristics, see applicable product documents.
