Deutsch DTM 8-Way Connector Kit No Heat Shrink Gland

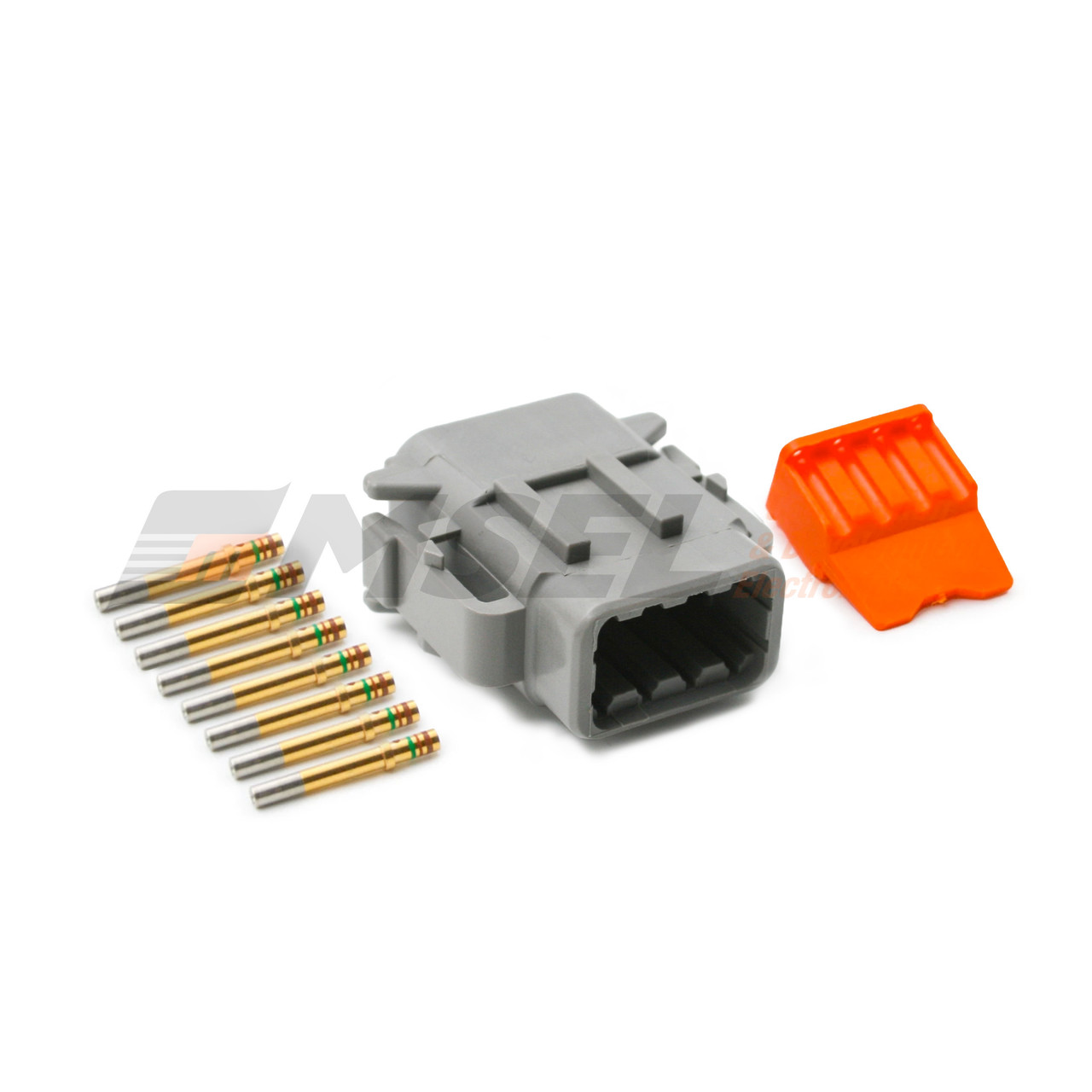

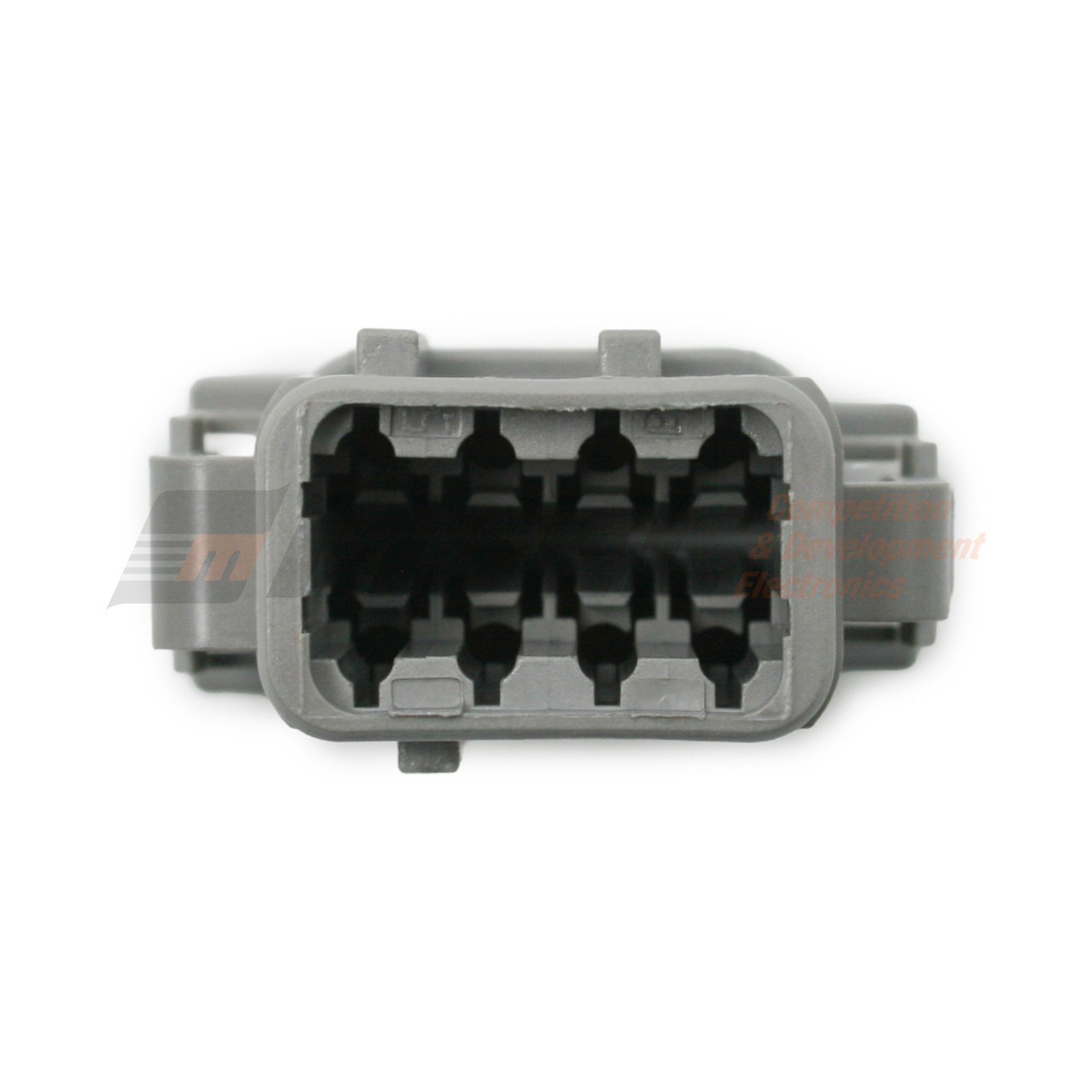

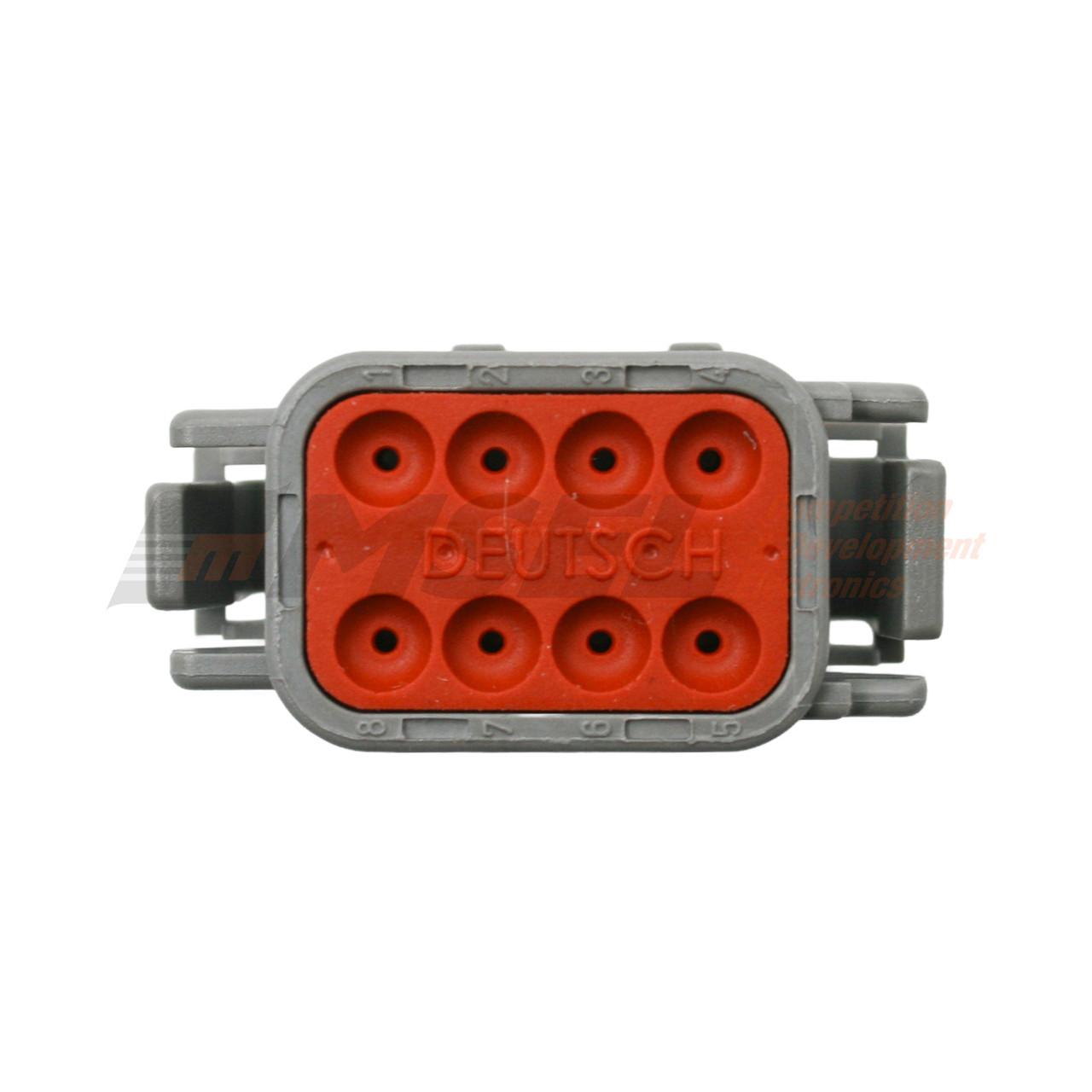

The Deutsch DTM 8-Way Connector Kit is a complete 8-position DTM connection. The kit comes with a DTM06-8S plug (Without Heat Shrink Gland), DTM04-8P receptacle, WM-8S and WM-8P wedges, and 16 size 20 solid contacts (8 pin, 8 socket). The DTM 8-way is a multi-position connector for low-current motorsport wiring.

Kit Includes:

• 1x Connector Plug Housing (No Heat Shrink Gland)
• 1x Connector Receptacle Housing
• 8x Gold plated solid formed pins
• 8x Gold plated solid formed sockets
• 1x Lock for Plug
• 1x Lock for Receptacle

According to TE Connectivity (Deutsch) specifications, the DTM series is rated to 7.5A per contact at up to 250V, sealed to IP67/IP68, and operates from -55°C to +125°C; making it a standout sealed connector for low-current signal wiring in motorsport, marine, and heavy-duty automotive applications.

Key Value Features

Each half is available separately - refer to the Recommended Product options below
