Hall Effect Speed Sensor - Short

SKU: SENSPD501

Product image 1

Description:

Hall Effect Speed Sensor - Short

Anodised aluminium hall effect speed sensor 25.4mm (1") long with 15/32-32 thread.

  • Needs to pick up from ferrous tooth or magnet.
  • 5V to 24V supply voltage.
  • air gap from tooth to sensor approximately 1.5mm
  • Senses from near zero speed up 15KHz.
  • Two nuts are included with the kit.

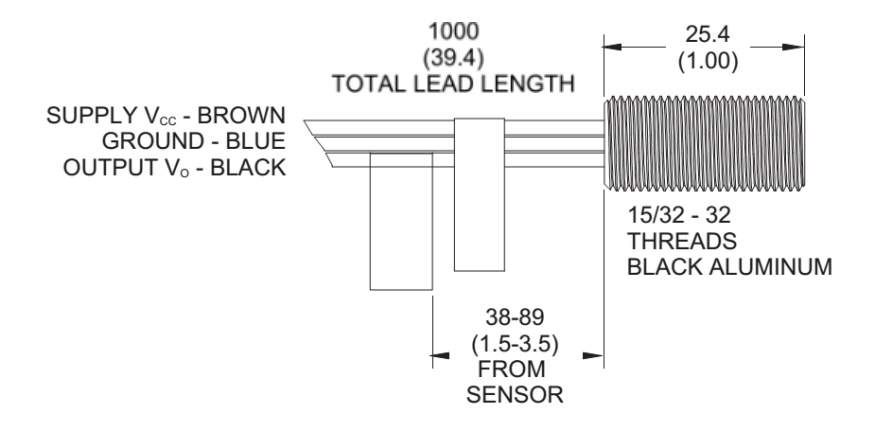

short hall effect speed sensor

*requires pullup resistor on signal output, see datasheet for more information
