Hellerman 107-1-G Straight Boot Without Lip
SKU: BOO107-1-G
Hellerman 107-1-G Straight Boot Without Lip
SKU: BOO107-1-G
Summary:
Hellermann 107-1-G Straight Boot Without Lip HellermannTyton, Helashrink 100 series bottle shape, straight boot without lip - non glued This style provides connector cable strain relief. Can be installed on the connector rear thread or plain shaft and allows easy re-entry for repair when combined wi…
Description:
Hellermann 107-1-G Straight Boot Without Lip
HellermannTyton, Helashrink 100 series bottle shape, straight boot without lip - non glued
This style provides connector cable strain relief. Can be installed on the connector rear thread or plain shaft and allows easy re-entry for repair when combined with a hot melt adhesive.

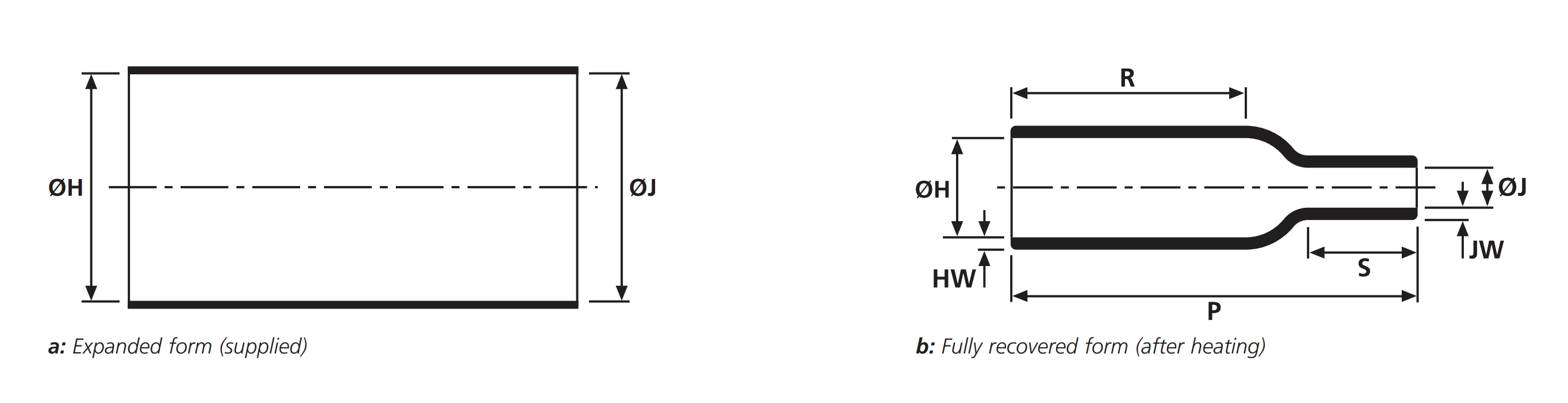

Product Dimensions
|
ØH
min. a
|
ØH
max. b
|
ØJ
min. a
|
ØJ
max. b
|
P
+/- 10%
|
R
max.
|
HW
+/- 20%
|
JW
+/- 30%
|
S
nom
|
| 51.9 | 35.1 | 51.9 | 15.8 | 124.5 | 66 | 3.1 | 3.1 | 40.6 |
Additional Product Information
Note that this boot is not pre-glued. Glue such as Resintech RT125 is recommended.
|
Feature
|
Specification
|
| Material | Polyolefin, cross-linked (PO-X) |
| Continuous Operating Temperature °C | -75 to +150 |
| Minimum Shrink Temperature °C | +135 |
| Tensile Strength (MPa) | 15 |
| Characteristics | Excellent resistance to fuels |
| Typical Applications | Military and general high performance harnessing |
| Raychem Equivalent | 202A174-25-0 |
