Hellermann 1037-4-G-W24 Straight Lipped Adhesive Lined Boot
SKU: BOO1037-4-GW24
Hellermann 1037-4-G-W24 Straight Lipped Adhesive Lined Boot
SKU: BOO1037-4-GW24
Summary:
Hellermann 1037-4-G-W24 Straight Lipped Adhesive Lined Boot This style provides strain relief for harnessing stems when used in conjunction with circular grooved adaptor. The pre-applied W24 adhesive is a high performance, 1 part epoxy with an operating temperature range of -75 to +200 °C. Applicati…
Description:
Hellermann 1037-4-G-W24 Straight Lipped Adhesive Lined Boot
This style provides strain relief for harnessing stems when used in conjunction with circular grooved adaptor.
The pre-applied W24 adhesive is a high performance, 1 part epoxy with an operating temperature range of -75 to +200 °C.
Application
Heat shrinkable moulded shape for use in electrical and electronic cable harness applications.
Designed for the Following Connectors
- Mil-spec and Autosport shell size 02 connectors
- Mil-spec and Autosport shell size 03 connectors
- Mil-spec and Autosport shell size 04 connectors
- Deutsch Autosport Micro Ultralite HE (ASU) Series
- Deutsch Autosport Micro Xtralite HE (ASX) Series

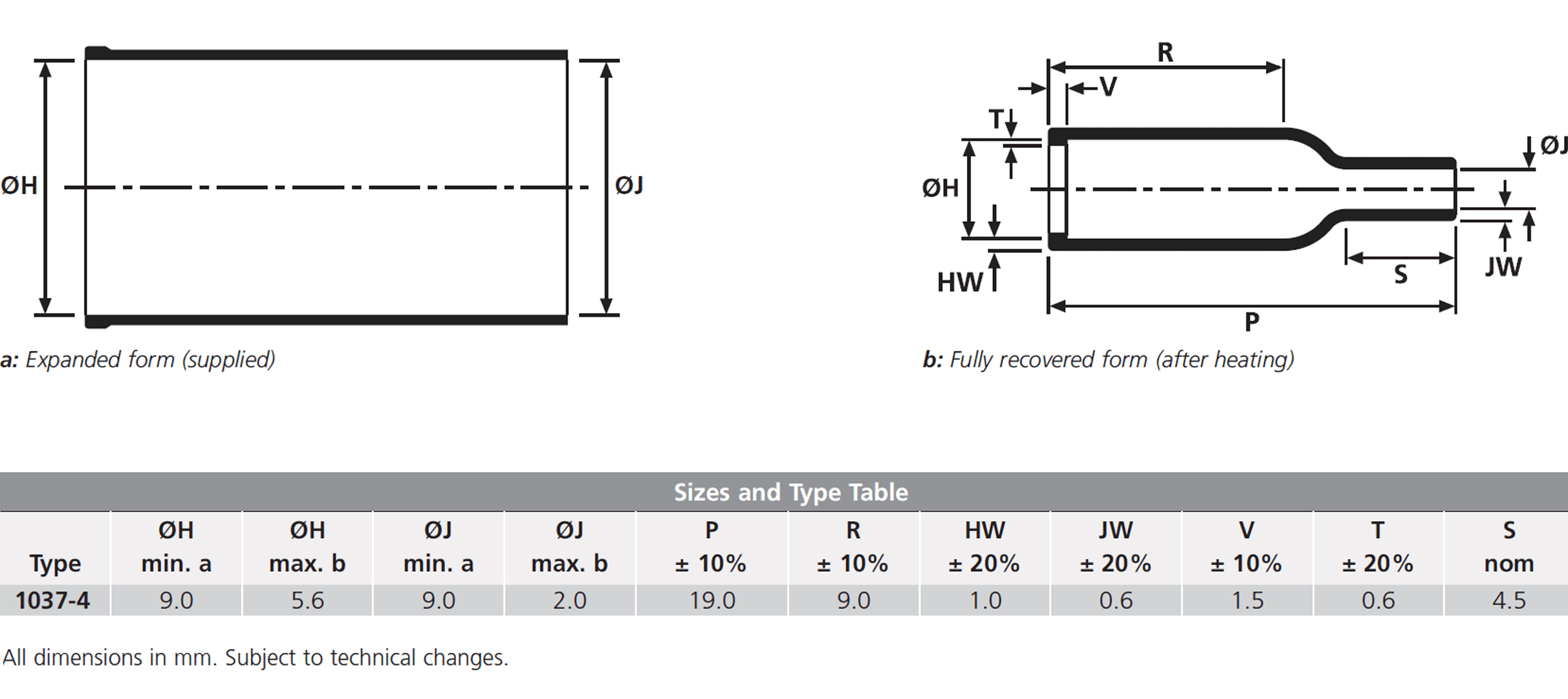

Product Dimensions:
Additional product information
| Material | Fluid resistant elastomer |
| Continuous Operating Temperature °C | -75 to +150 |
| Minimum Shrink Temperature °C | +135 |
| Tensile Strength (MPa) | 15 |
| Characteristics | Excellent resistance to fuels |
| Typical Applications | Military and general high performance harnessing |
| Raychem Equivalent | 204W221-25-G03 |
