Hirschmann 3-Way Female Connector Kit -Keying "A"
SKU: CONHIR301FK
Hirschmann 3-Way Female Connector Kit -Keying "A"
SKU: CONHIR301FK
Summary:
Hirschmann 3-Way Female Connector Kit - Keying "A" Kit includes: 1 x Connector Housing 3 x Terminals 3 x Wire Seals Used in some BMW applications. Key Features General Sealing: Single Wire Sealed Number of Ways: 3 Contact Size: 1.2mm Wire Size: 26AWG-17AWG Number of Rows: 1 Pitch: 4.0mm Numbered Cav…
Description:
Hirschmann 3-Way Female Connector Kit - Keying "A"

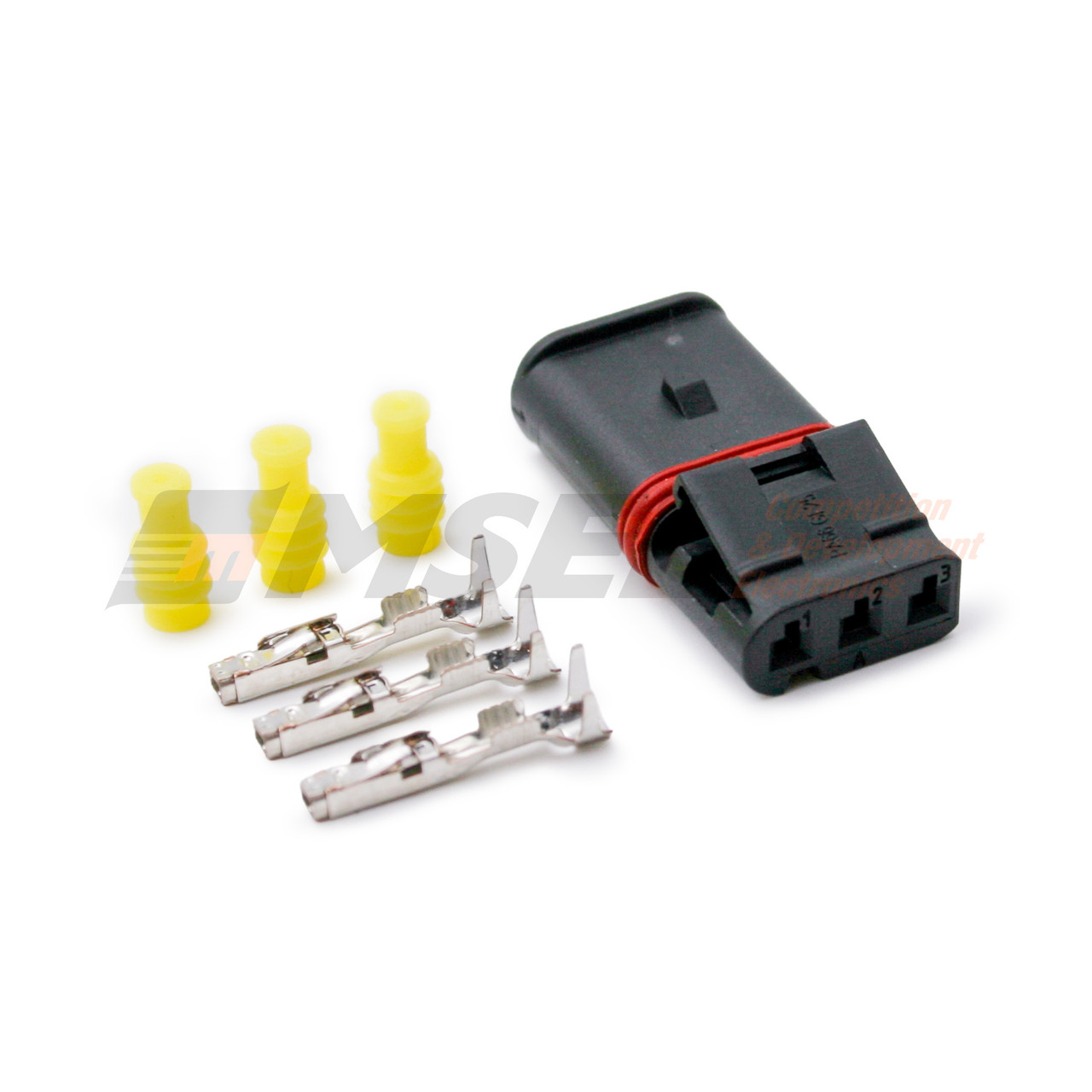

Kit includes:
- 1 x Connector Housing
- 3 x Terminals
- 3 x Wire Seals
Used in some BMW applications.
Key Features
| General |
| Sealing: | Single Wire Sealed |
| Number of Ways: | 3 |
| Contact Size: | 1.2mm |
| Wire Size: | 26AWG-17AWG |
| Number of Rows: | 1 |
| Pitch: | 4.0mm |
| Numbered Cavities: | Yes, Numbered |
| Mechanical |
| Contact Type: | Socket, flat |
| Termination: | Open barrel crimp |
| Lance Type: | Terminal Lance |
| Housing Material: | PA66+GF |
| Mounting Style: | Silicone Rubber |
| TPA: | Yes |
| CPA: | No |
| Electrical |
| Current Rating[1]: | 10A |
| Environmental |
| Temp Range[2]: | -40 - 150°C |
| Protection Rating | IPX7/IPX9K |
[1] Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
[2] Temperature range is for reference only, and may/may not include temperature rise.
