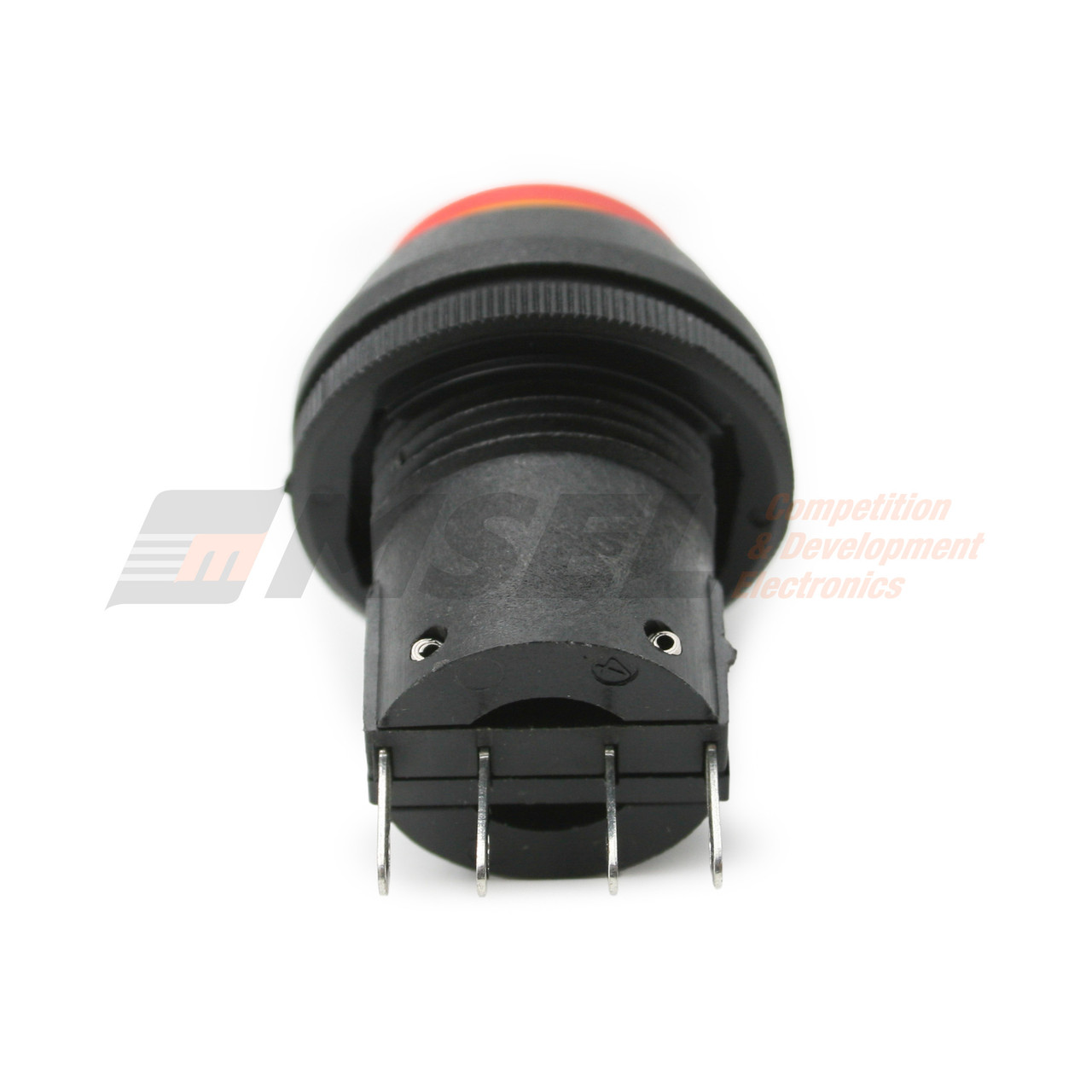

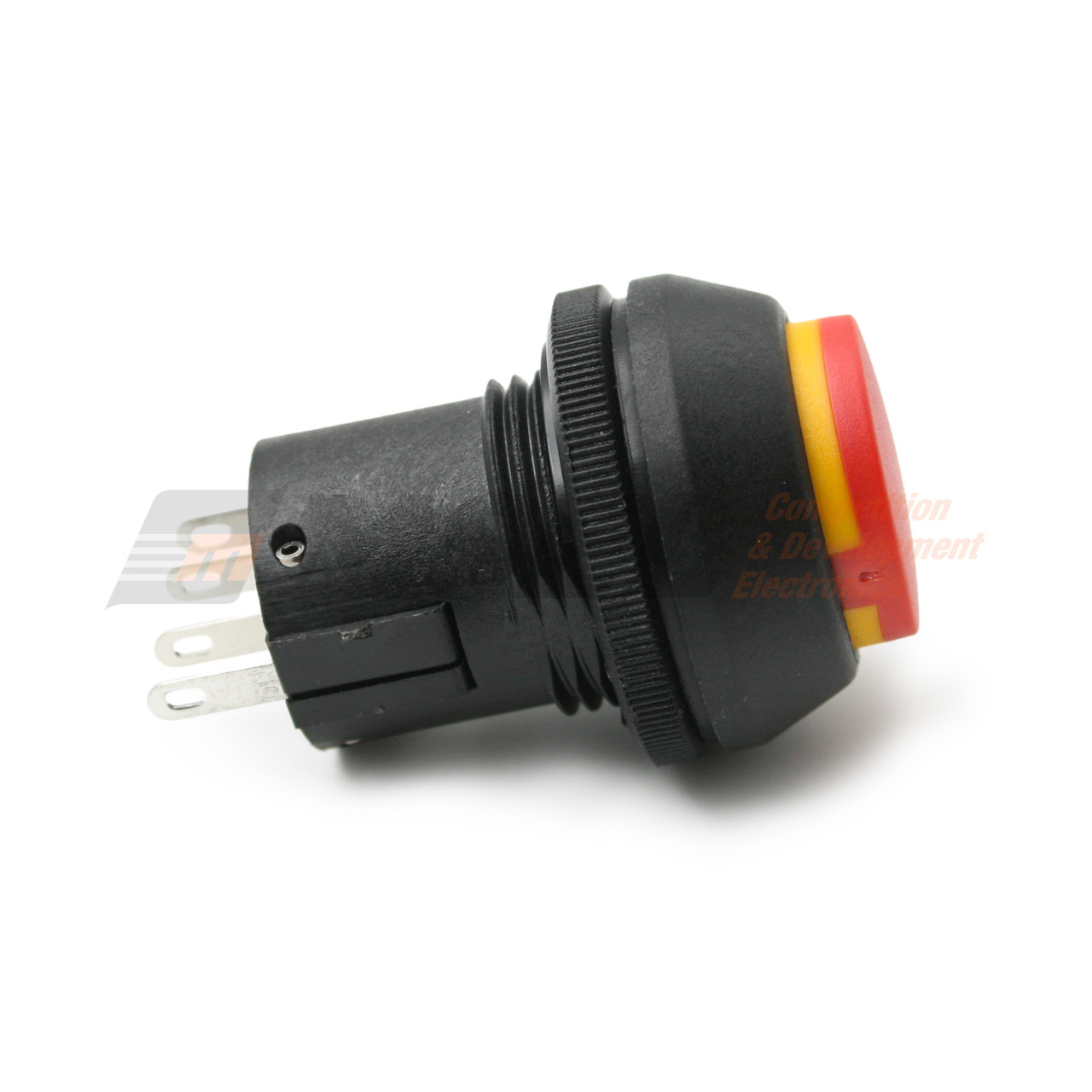

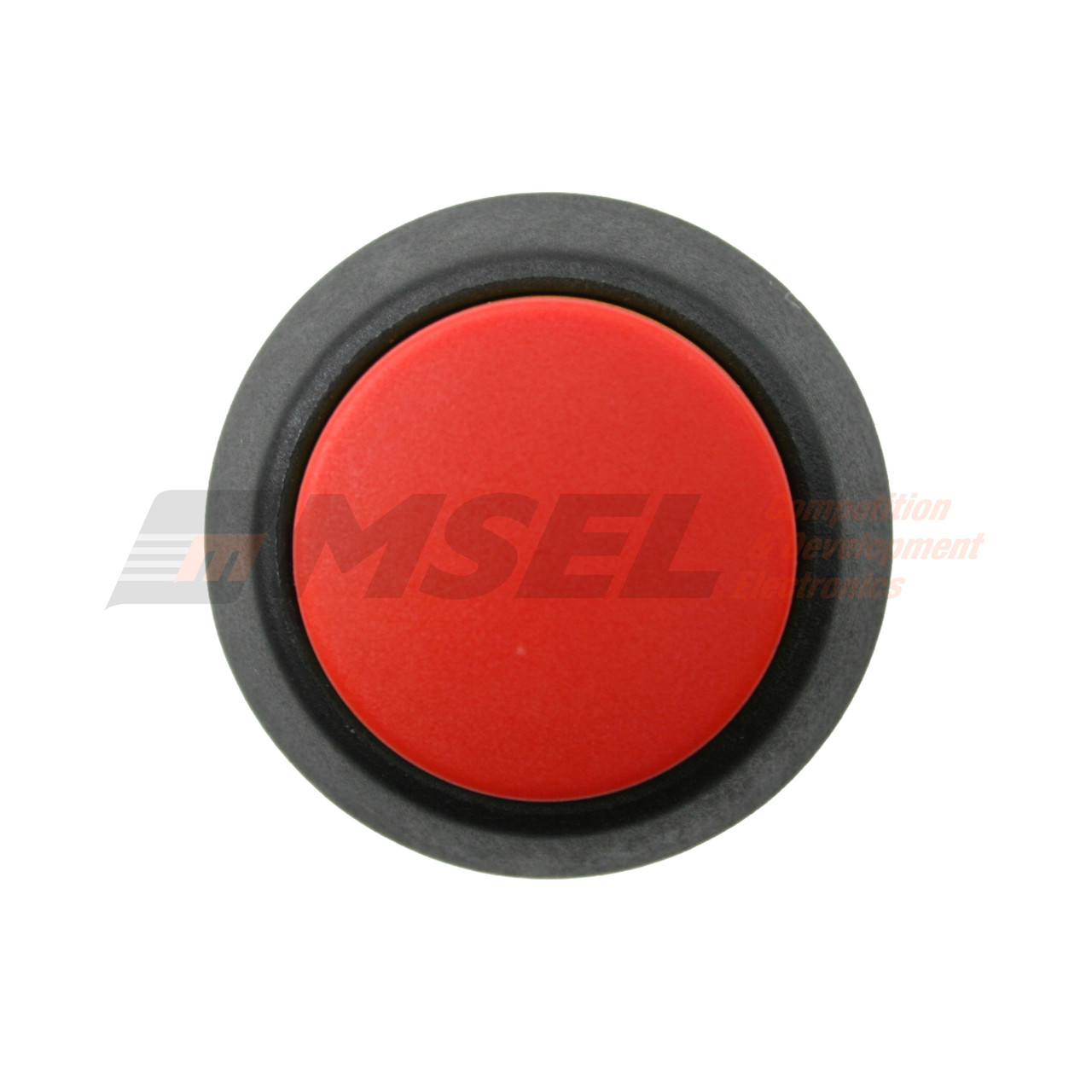

Latching Push Button Switch Sealed to IP67
SKU: SWILATRED
Latching Push Button Switch Sealed to IP67
SKU: SWILATRED
Summary:
Sealed latching push button switch which is ideal as the external kill switch. Switch Function Type:SPST Contact Configuration:SPST Max Contact Voltage AC:250V Max Contact Current AC:10A Terminal Type:Solder/Faston Terminals Actuator / Cap Colour:Red SVHC:No SVHC Behind Panel Depth:27.4mm Bezel Diam…
Description:
Sealed latching push button switch which is ideal as the external kill switch.
- Switch Function Type:SPST
- Contact Configuration:SPST
- Max Contact Voltage AC:250V
- Max Contact Current AC:10A
- Terminal Type:Solder/Faston Terminals
- Actuator / Cap Colour:Red
- SVHC:No SVHC
- Behind Panel Depth:27.4mm
- Bezel Diameter:30mm
- Colour:Red / Yellow
- Contact Material:Fine Silver
- Contact Resistance:25mohm
- Current Rating:10A
- Dielectric Strength, VAC:1000V
- External Depth:40.6mm
- External Length / Height:30mm
- IP Rating:IP67
- Insulation Resistance:1Gohm
- Material:PBT
- Max Operating Temperature:105øC
- Max Panel Thickness:6mm
- Min Temperature Operating:-40øC
- Mounting Type:Panel Mounting
- No. of Electrical Operations:100000
- No. of Mechanical Operations:100000
- No. of Poles:1
- Operating Force:12N
- Panel Cut-out Diameter:22.5mm
- Resistive Current Rating:10A
- Travel:3.5mm
