LS1 Ignition Coil Connector Kit with Seals and Terminals
SKU: CONDEL4008K
LS1 Ignition Coil Connector Kit with Seals and Terminals
SKU: CONDEL4008K
Summary:
LS1 Ignition Coil Connector Kit with Seals and Terminals Commonly used for GM LS1 Ignition Coils. Please check the product photo to ensure correct fitment before ordering. Kit includes: 1 x Connector Housing 1 x TPA Lock 4 x Terminals 4 x Wire Seals Key Features General Sealing: Single Wire Sealed N…
Description:
LS1 Ignition Coil Connector Kit with Seals and Terminals
Commonly used for GM LS1 Ignition Coils. Please check the product photo to ensure correct fitment before ordering.

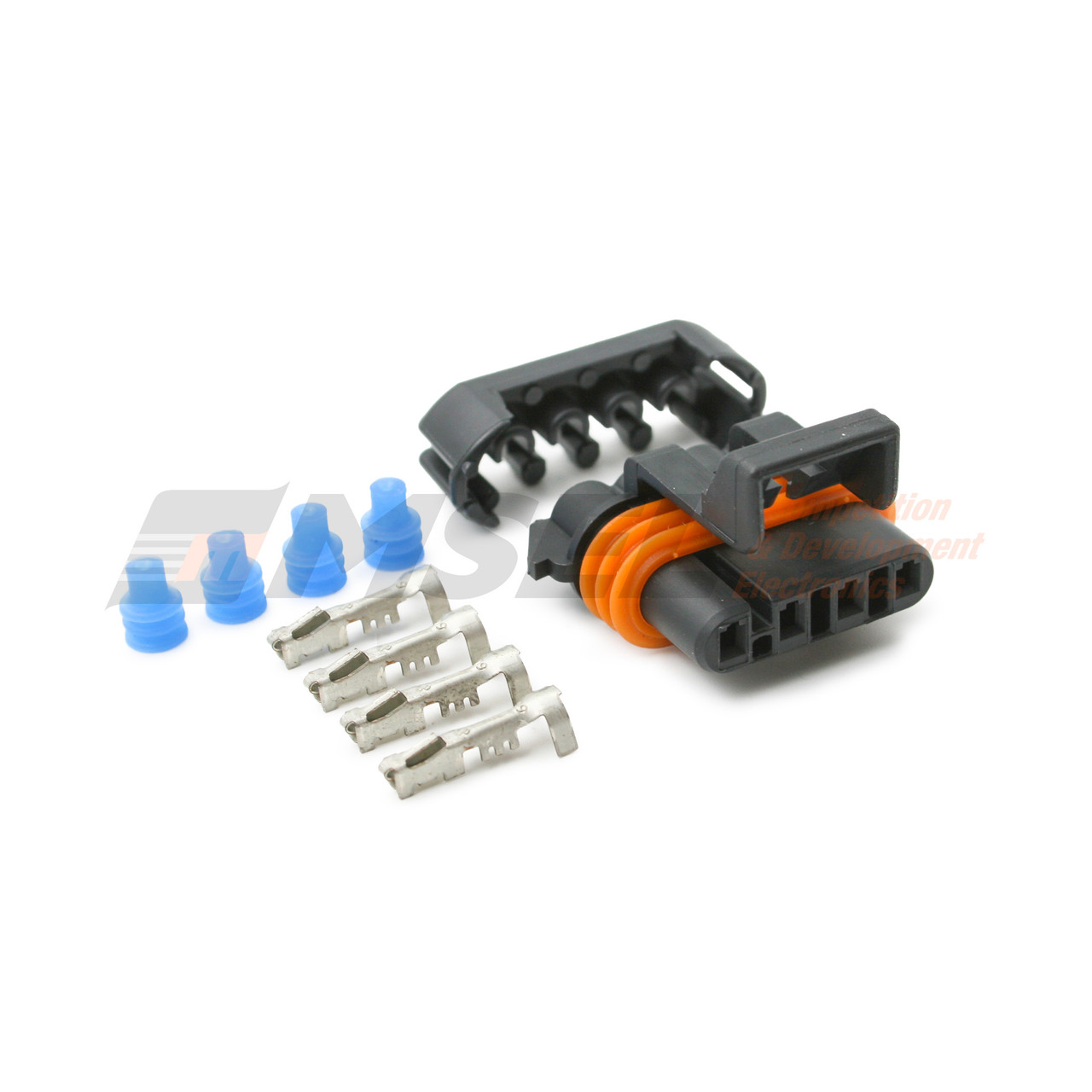

Kit includes:
- 1 x Connector Housing
- 1 x TPA Lock
- 4 x Terminals
- 4 x Wire Seals
Key Features
| General |
| Sealing: | Single Wire Sealed |
| Number of Ways: | 4 |
| Contact Size: | 1.5mm (15AWG) |
| Wire Size: | 22AWG-17AWG |
| Number of Rows: | 1 |
| Pitch: | 6.0mm |
| Numbered Cavities: | Yes, Alphabetically |
| Mechanical |
| Contact Type: | Socket, flat |
| Termination: | Open barrel crimp |
| Lance Type: | Terminal Lance |
| Seal Material: | Silicone Rubber |
| Mounting Style: | Free hanging |
| TPA: | Yes |
| CPA: | Yes |
| Electrical |
| Current Rating[1]: | 14A |
| Environmental |
| Temp Range[2]: | -40 - 125°C |
[1] Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
[2] Temperature range is for reference only, and may/may not include temperature rise.
