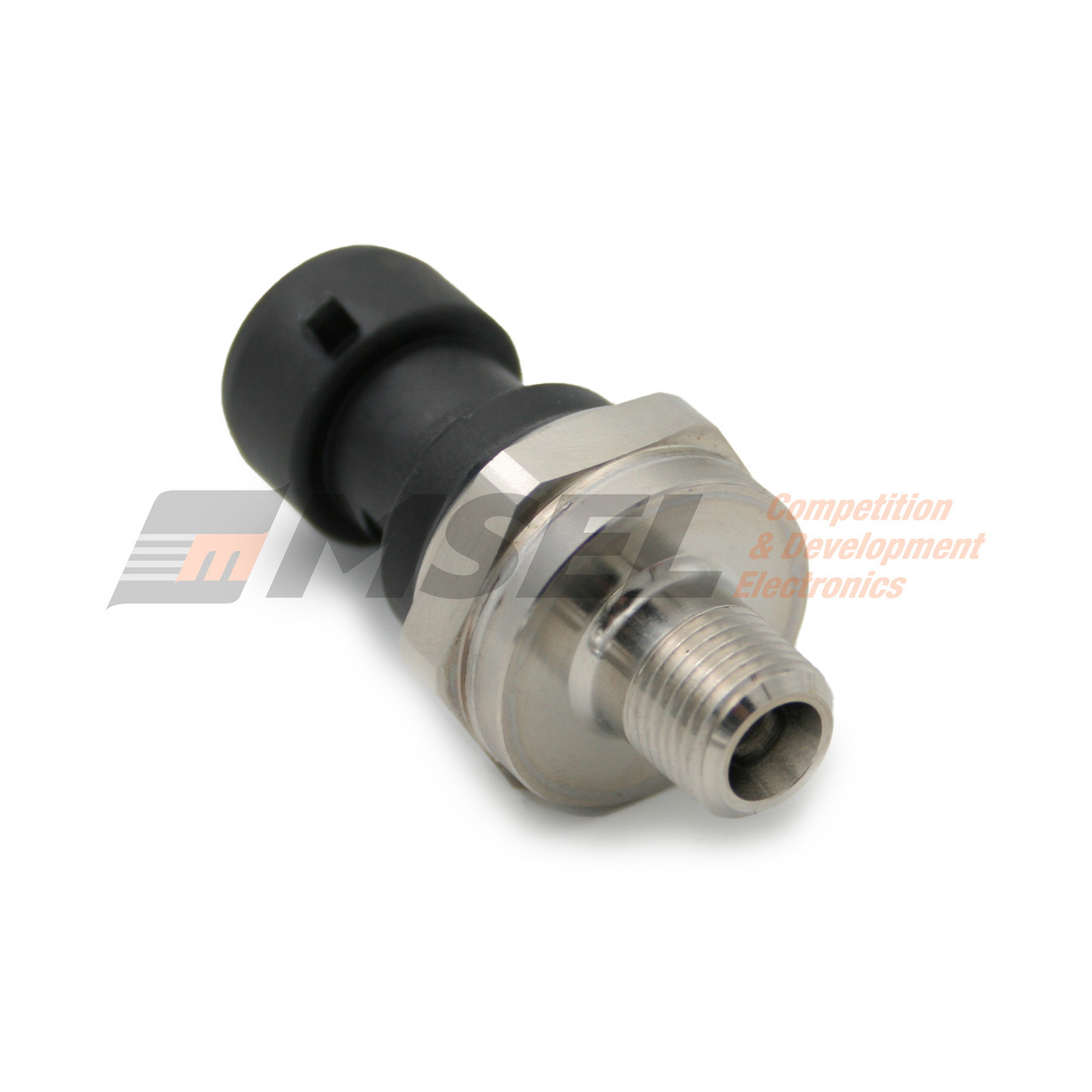

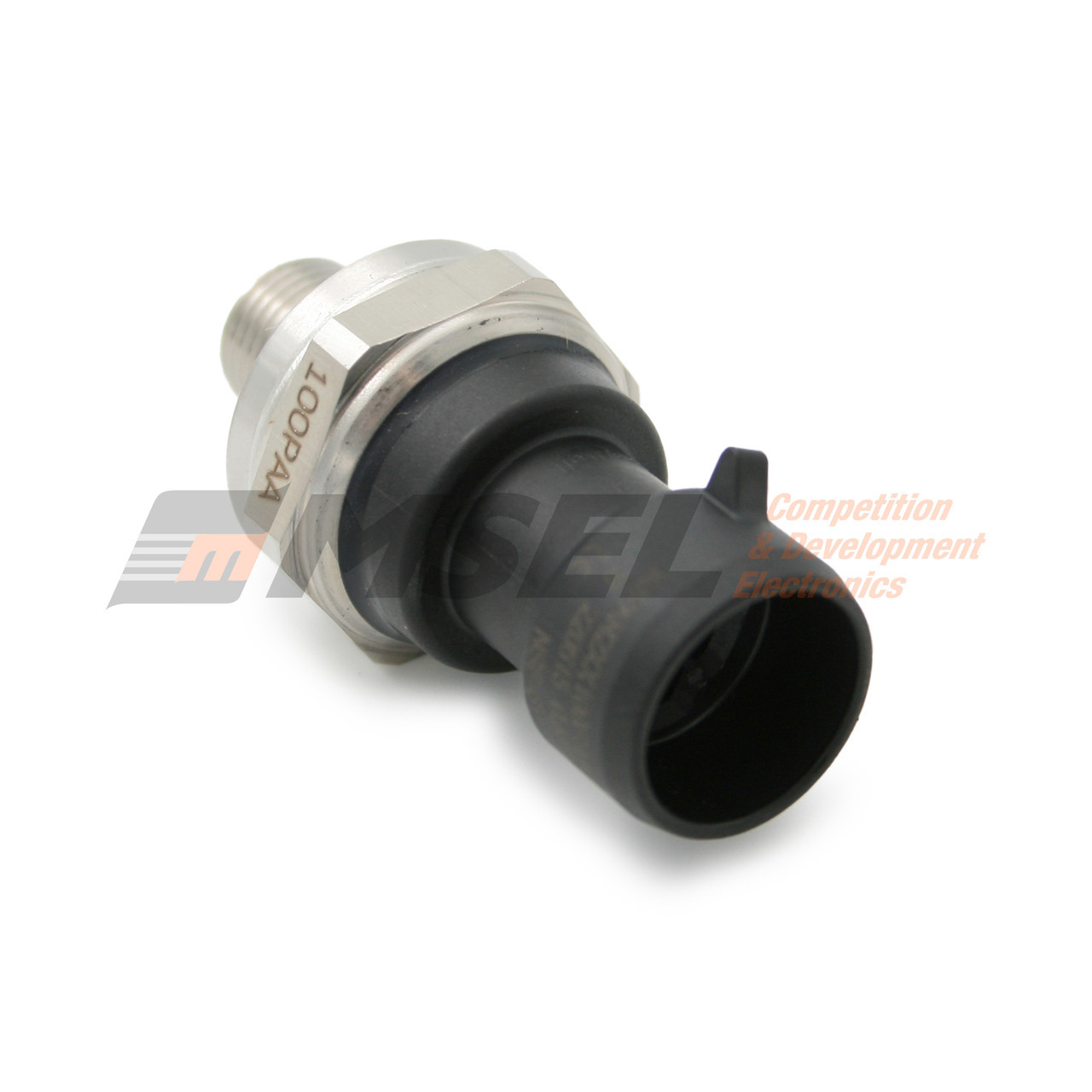

Media Isolated 6 Bar Absolute Pressure Sensor 1/8"NPT Port

• Reads from 0 to 6 bar (0 to 87psi) absolute
• Media isolated sensor
  • suitable for use with water, petrol, diesel, hydraulic fluids, CNG
• Stainless steel construction so does not corrode and fail like green steel sensors from other suppliers
• Ideal for measuring boost in high boost applications
• 3-Way Metri-Pack 150 electrical connector
• Rated from -40ºC to 125ºC
• Supply voltage from 4.75V to 5.25V
• 0.5V to 4.5V Output voltage
• 22mm hex

Please note this is an absolute pressure sensor.  If looking for a sensor for measuring oil or fuel pressure, please refer to our range of gauge pressure sensor sensors.



Accessories (sold separately)

• 3-Way Delphi Connector Female Connector Kit click here.
• Aluminium Weld On - 1/8"NPT Female click here.
• Stainless Steel Weld On Boss - 1/8"NPT Female click here.
• Mild Steel Weld On Boss - 1/8"NPT Female click here.
