Available ex-stock for immediate delivery

GPA, GPR, GPRP

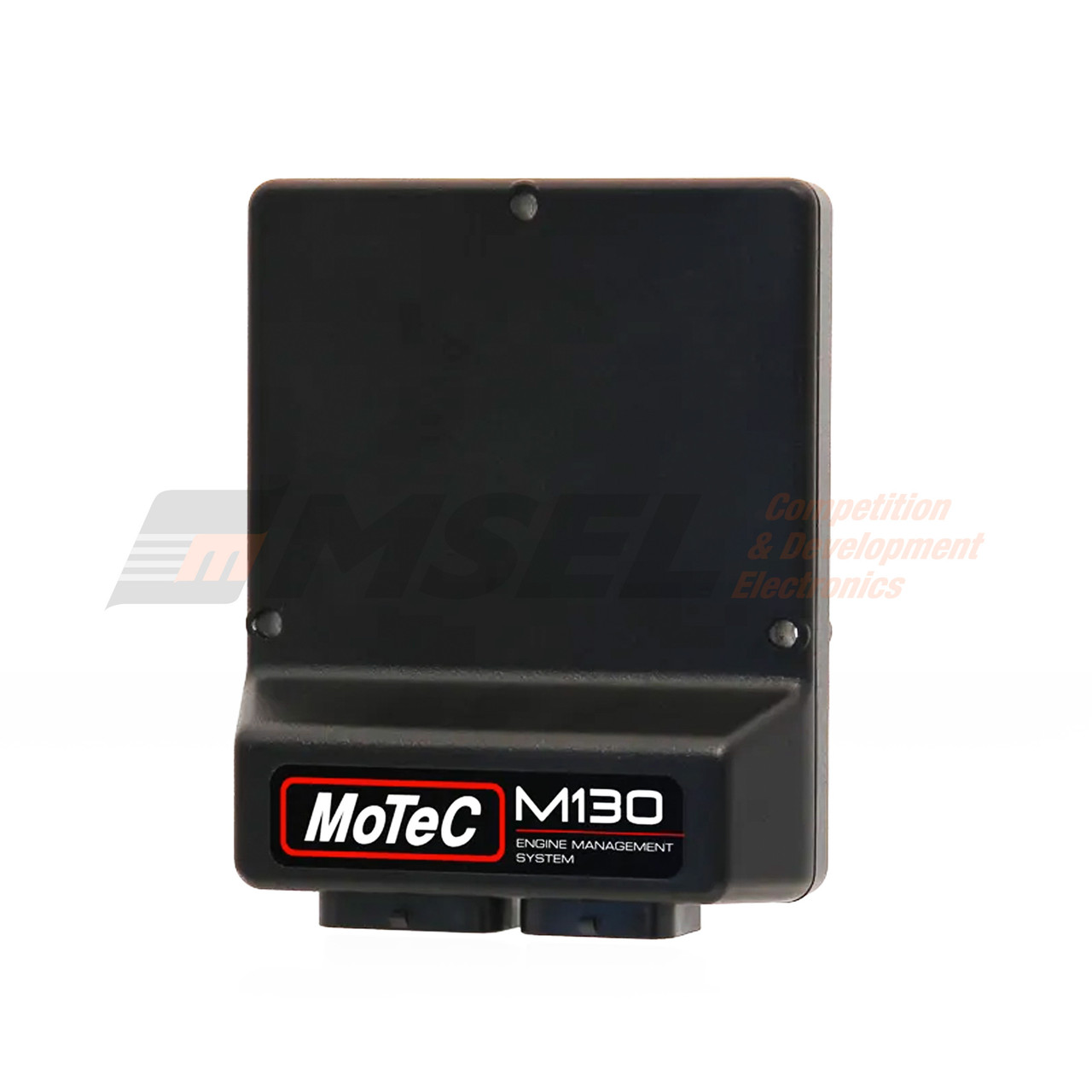

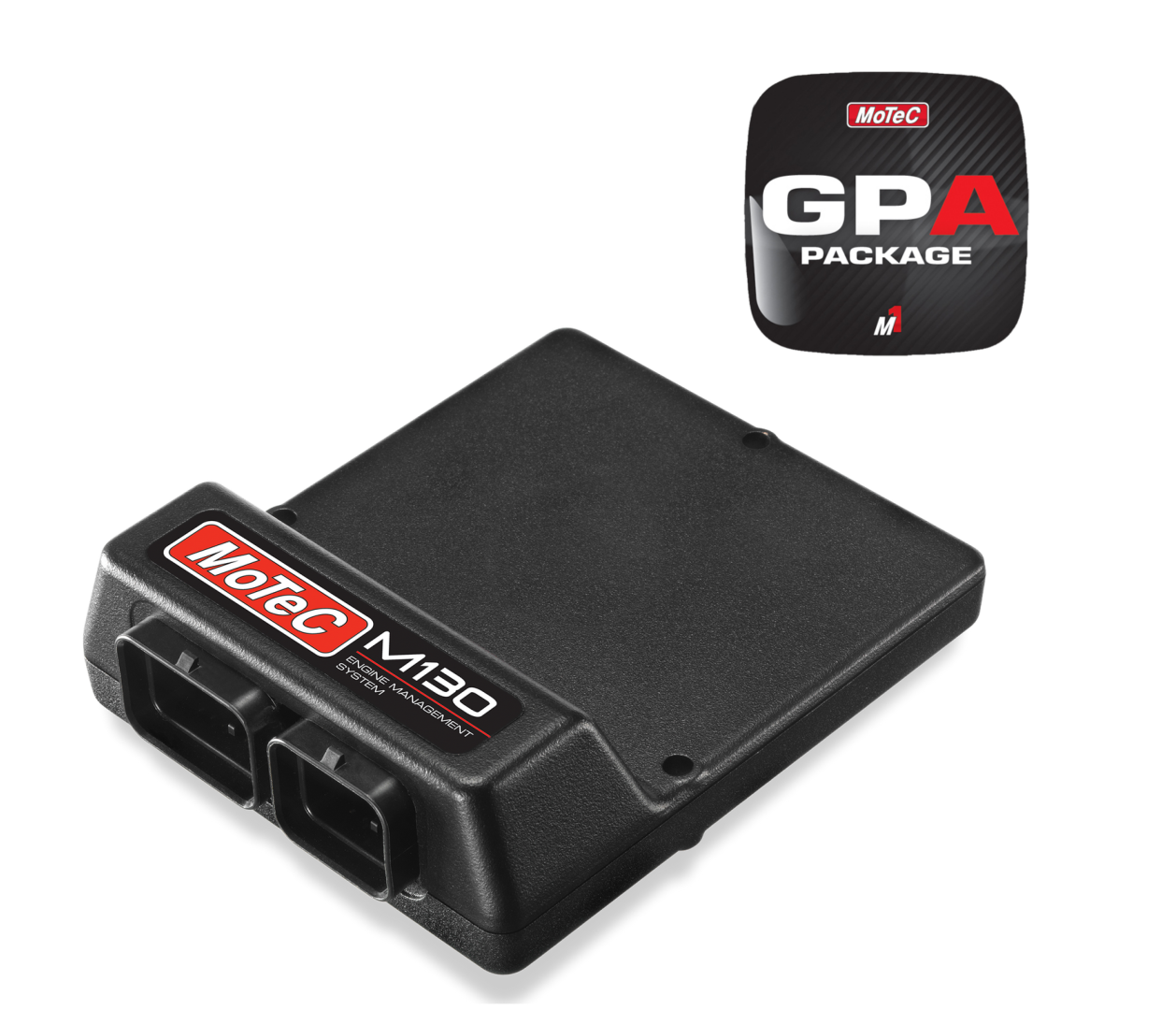

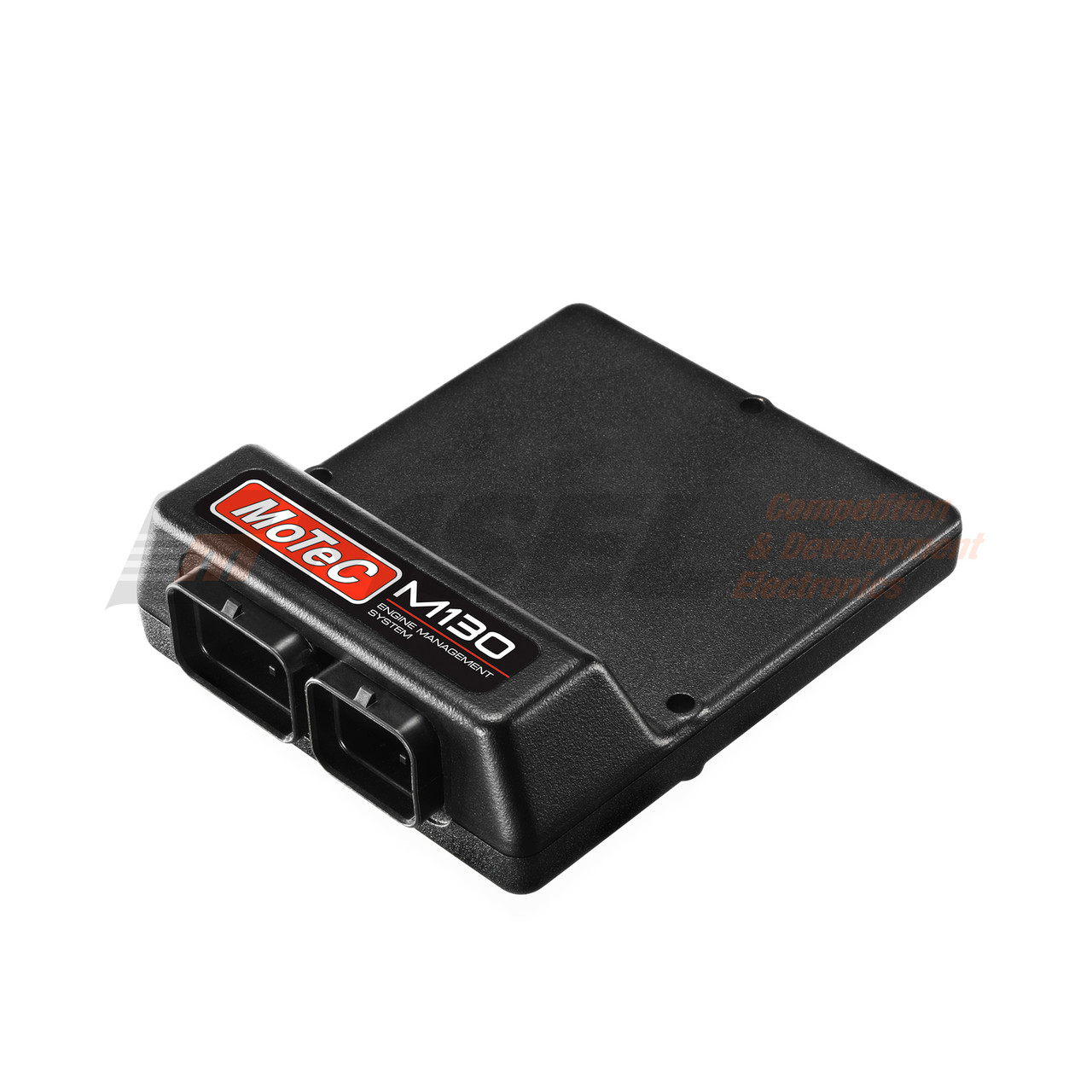

Motec's exciting range of M1 engine management systems are now available.

The M130 includes the following as standard

• drive by wire
• variable cam control
• knock

General M130 Specifications:

Injectors:

Peak & Hold Injector Outputs: 8
Low Side Injector Outputs: 2

Ignition:

Low Side Ignition Outputs (max): 8

Auxiliary Outputs:

Half Bridge Outputs: 6

Inputs:

Universal Digital Inputs: 7
Analogue Voltage Inputs: 8
Analogue Temperature Inputs: 4
Knock Inputs: 2

Data:

CAN Bus: 1
Logging Memory: 120MB

Dimensions:

Size (mm): 107x127x39
Weight (g): 300
Connector type: AMP Superseal 1.0
Number of connectors: 2
Pins: 60
