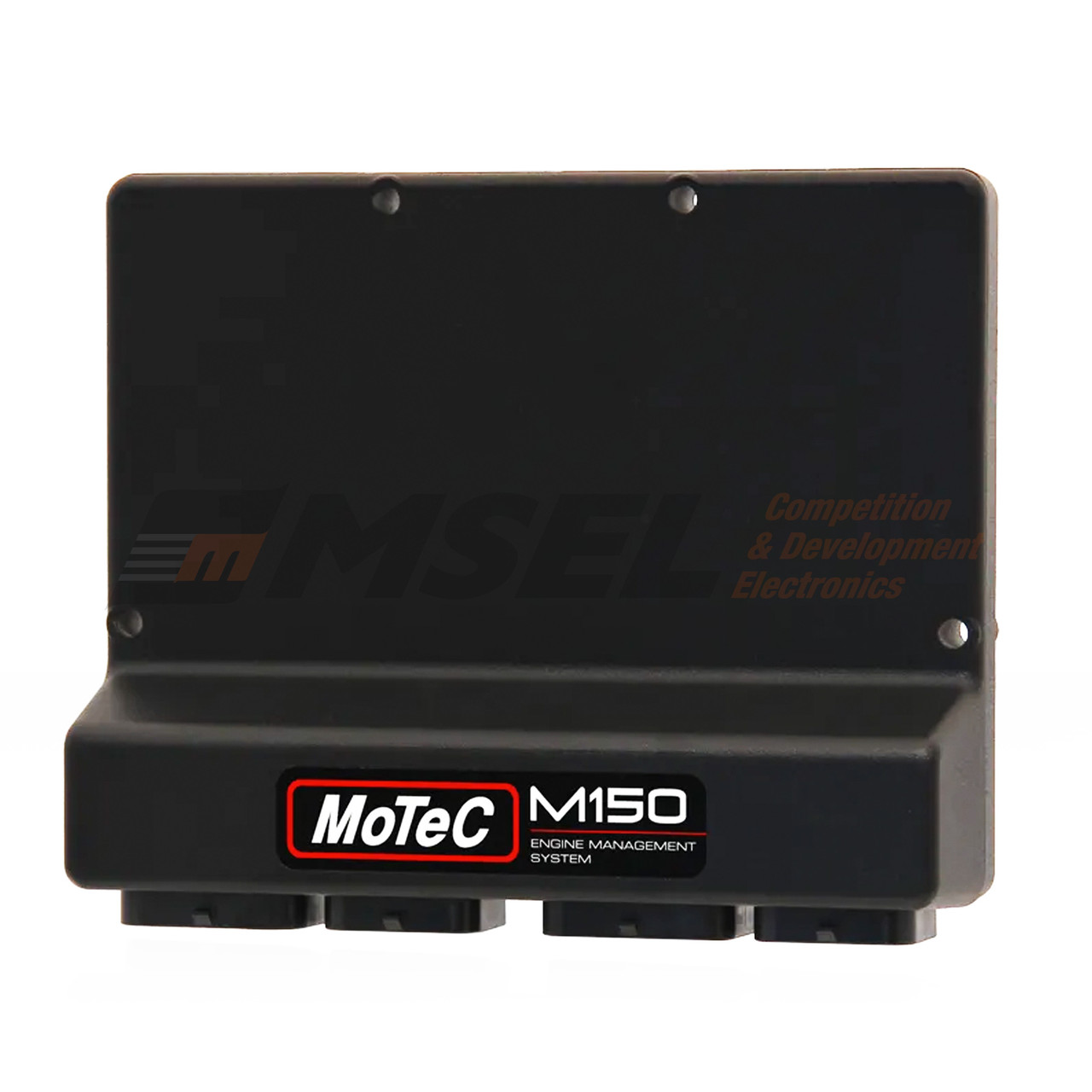

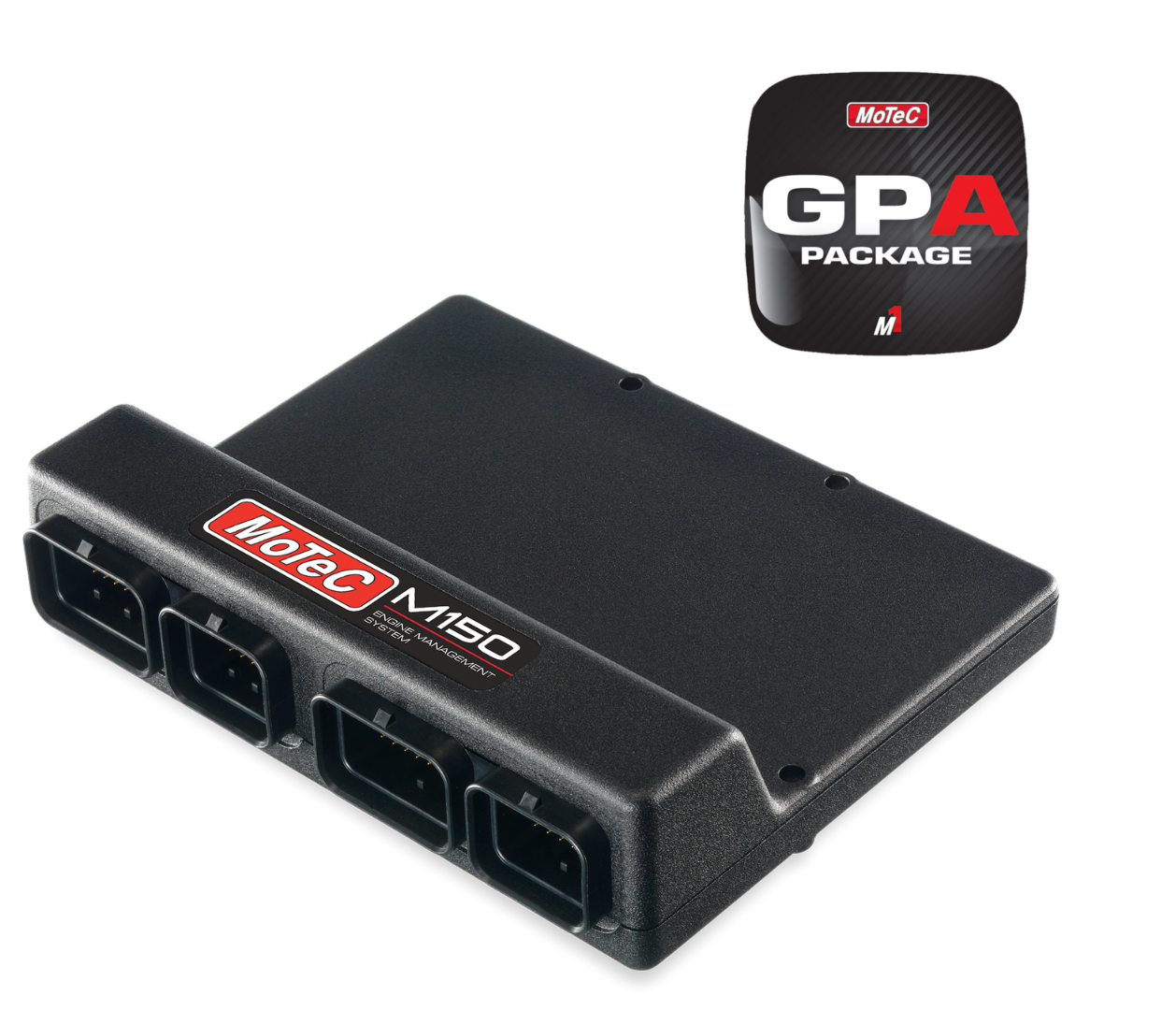

General M150 Specifications

Injectors:

Peak & Hold Injector Outputs: 12
Low Side Injector Outputs: 6

Ignition:

Low Side Ignition Outputs (max): 12

Auxiliary Outputs:

Half Bridge Outputs: 10

Inputs:

Universal Digital Inputs: 12
Digital Inputs: 4
Analogue Voltage Inputs: 17
Analogue Temperature Inputs: 6
Knock Inputs: 4
Lambda (Narrow Band): 2

Data:

CAN Bus: 3
RS232: 1
LIN: 1
Logging Memory: 250MB

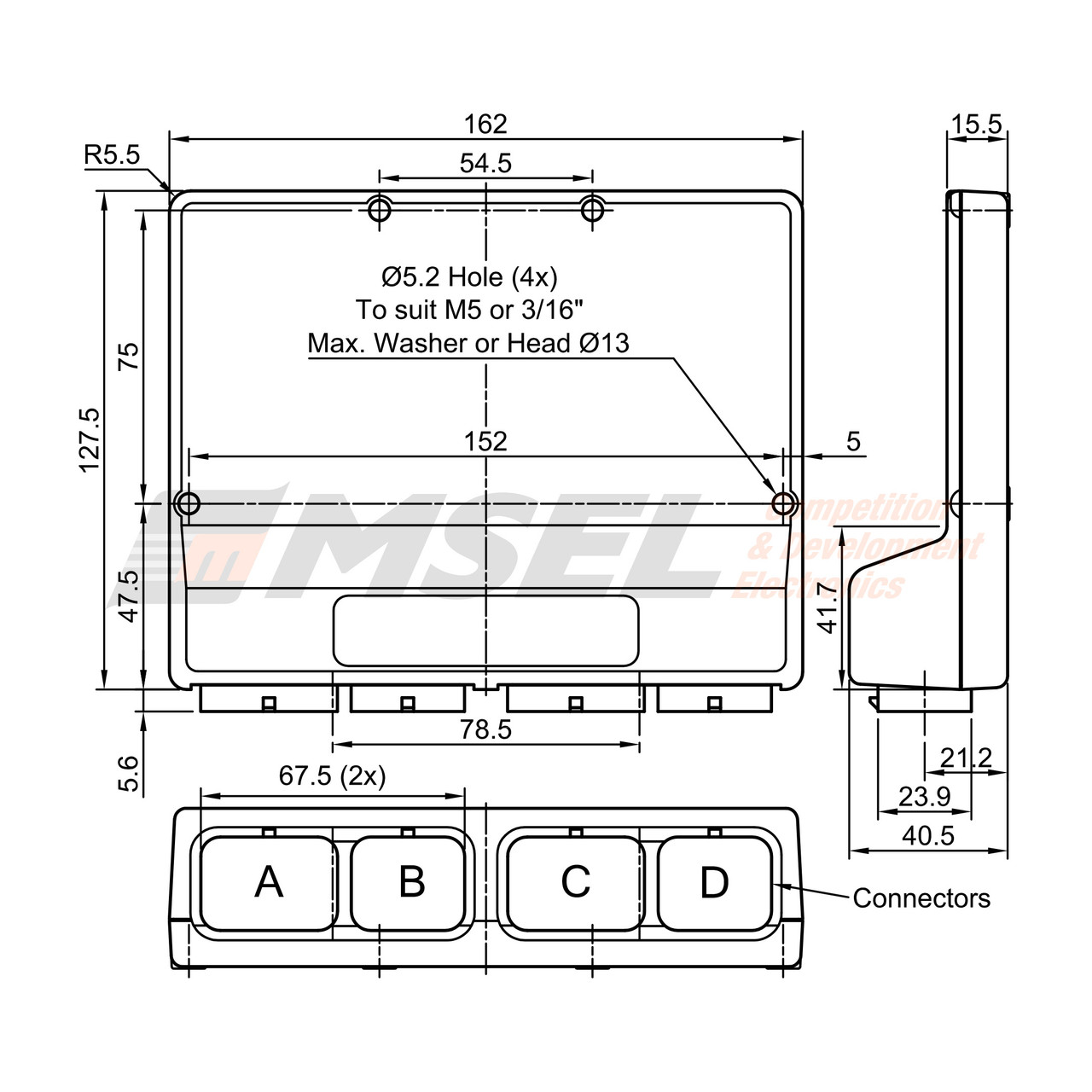

Dimensions:

Size (mm): 162x127x40
Weight (g): 445
Connector type: AMP Superseal 1.0
Number of connectors: 4
Pins: 120
