Momentary push button switch

Positive action, attractive and rugged for wet and dusty environments.

• Ideal for dash and engine management control buttons on steering wheels
• Multiple colour options
• Made in the USA by military supplier
• Used on Toyota Racing Series cars
• Bump proof with an extremely positive feel - no more wondering if you have pressed the button or false triggers
• Blue switch is rated to IP68S.  All other colours are IP64.

Electrical Ratings
Load	Sea level @ 28VDC or 115VAC, 60/400Hz
Resistive	5A
Inductive	2A
DMV	1050Vrms
Low Level	10mA @ 30mV
Electrical Life	25,000 cycles 5A @ 28VDC
Mechanical Life	1,250,000 cycles
Seal	IP64 rated
Operating Temp Range	-40øC to +85øC
Operating Force	1.7lbs. ñ0.5lb
Total Travel	0.080 inches max
Overtravel	0.010 inches min
Materials
Case	Thermoplastic
Button	Thermoplastic
Terminals	Silver alloy with gold plate
Terminal Hardware	None provided
Mounting Hardware	Hex nut, lockwasher and panel gasket

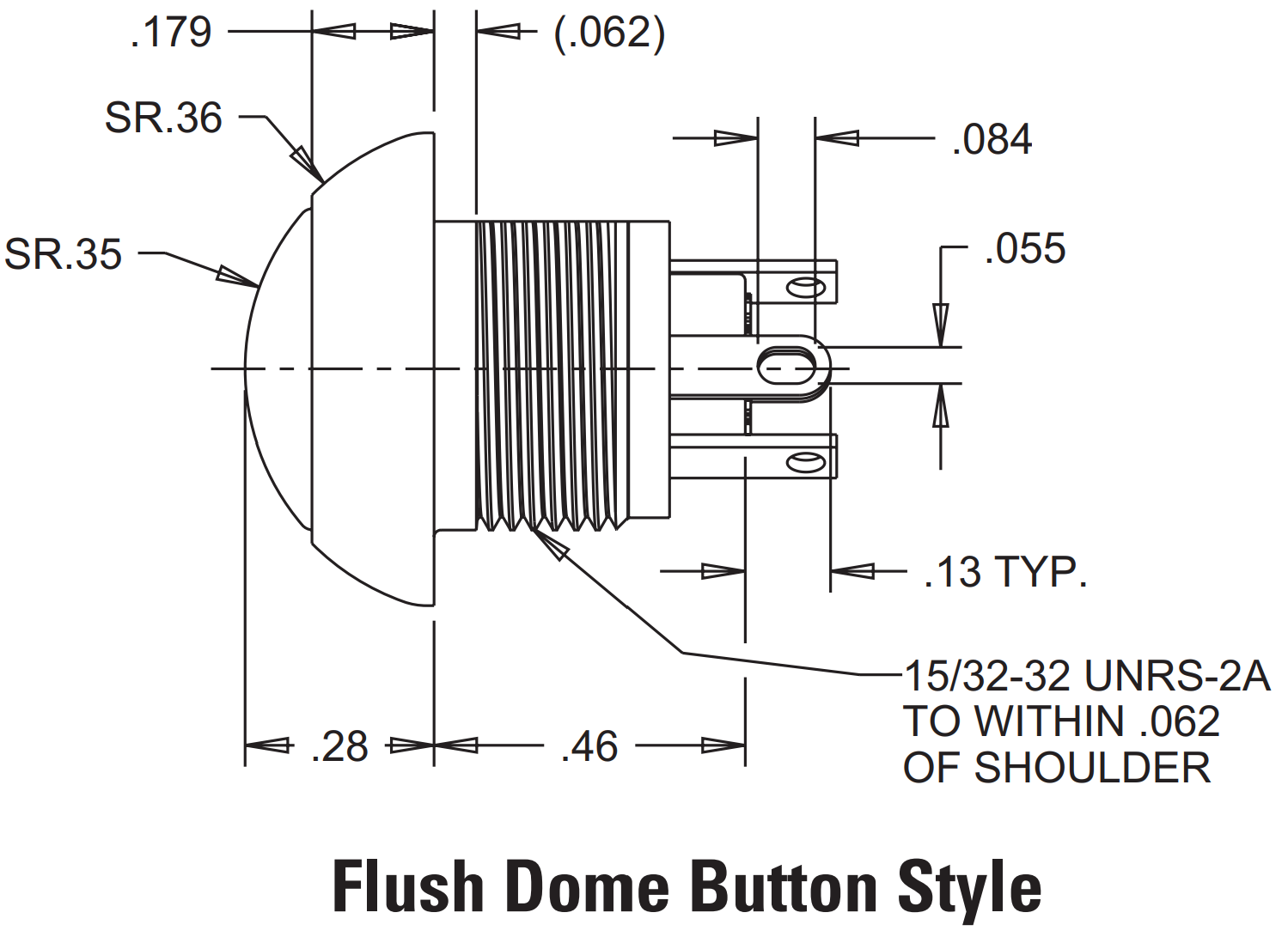

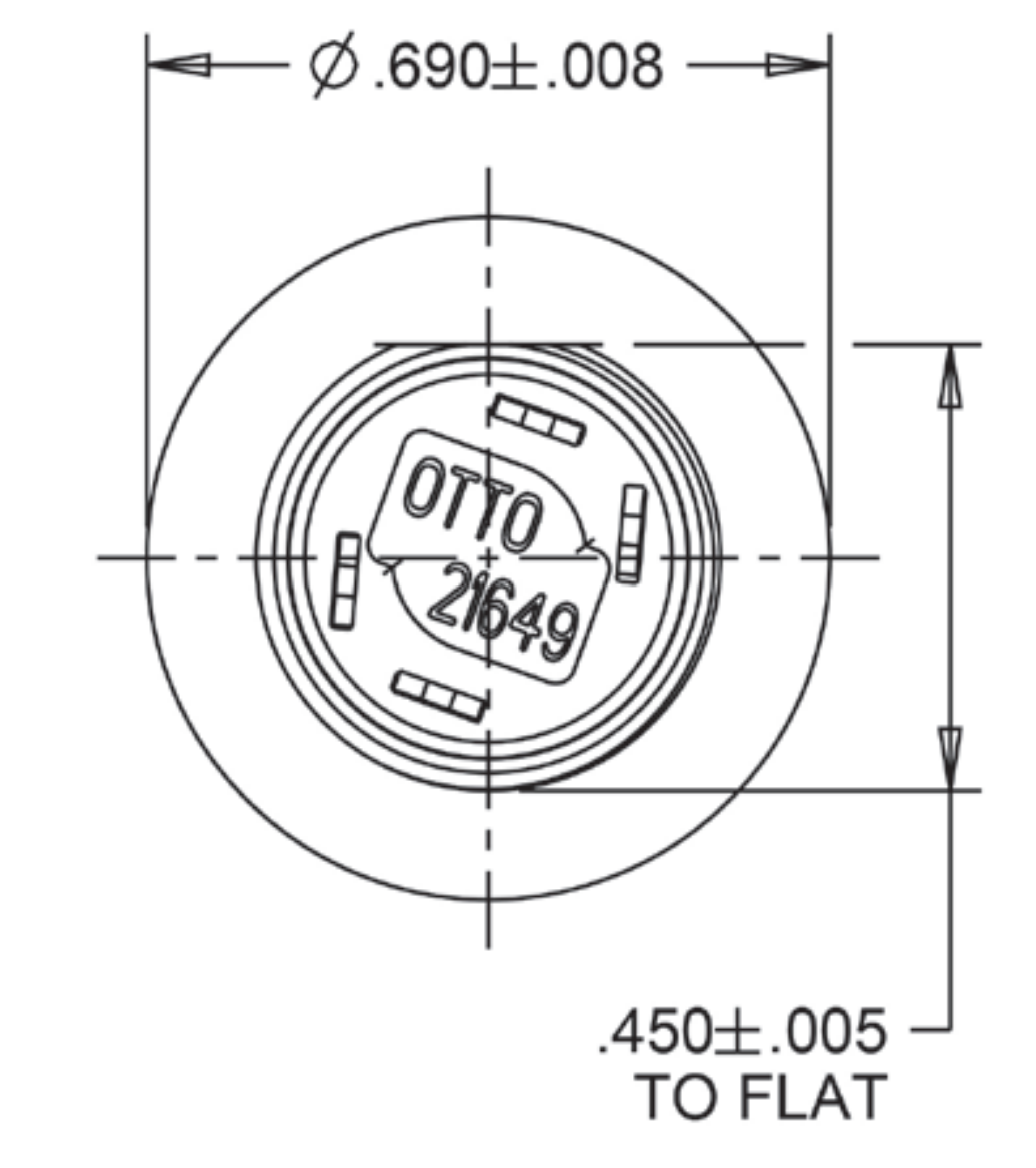

Please note: dimensions in inches



Accessories (sold separately)

For recommended boots, please refer to Related Products below.

• Carbon Fibre Steering Wheel Button Plate - Small  click here.
• Carbon Fibre Steering Wheel Button Plate - Large click here.
