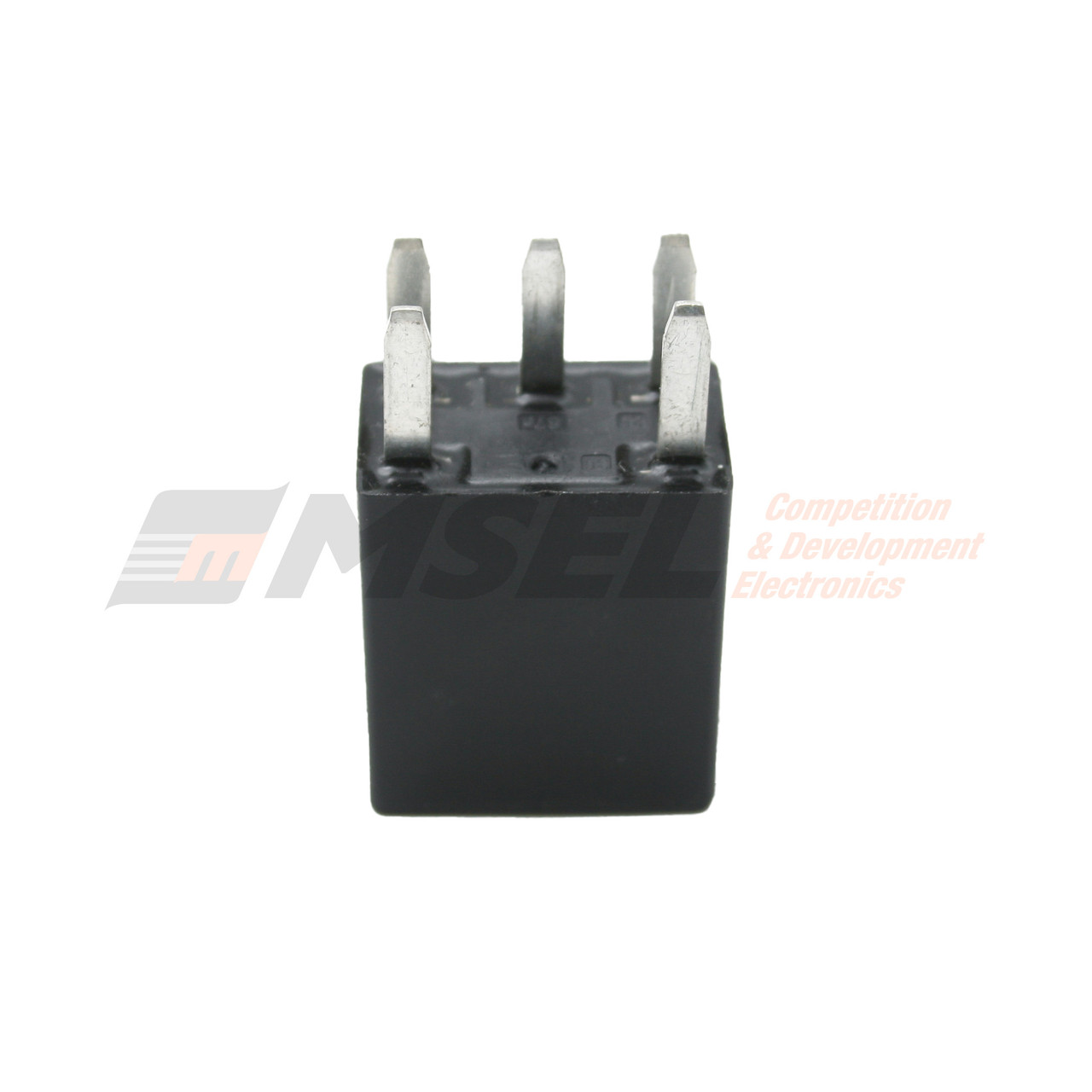

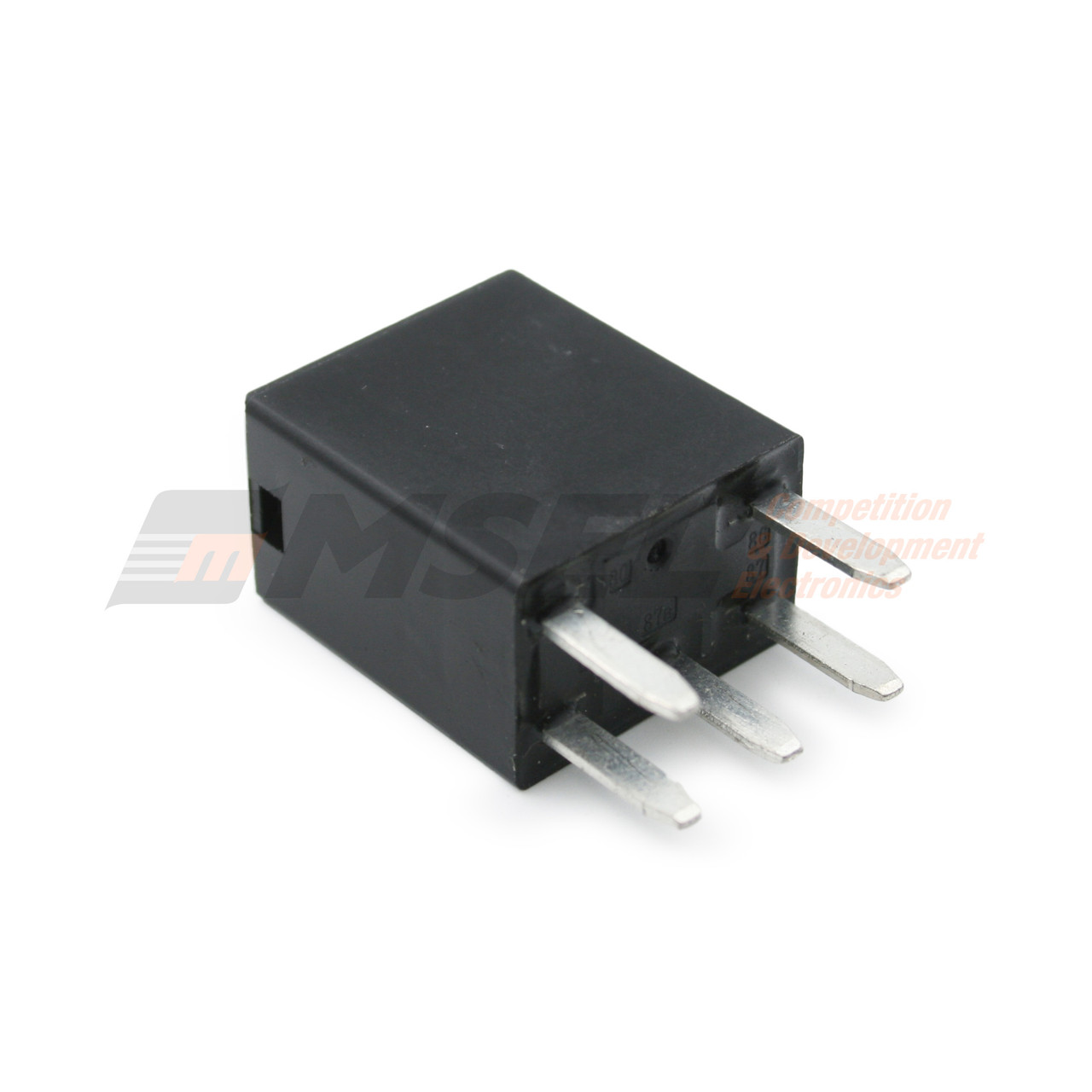

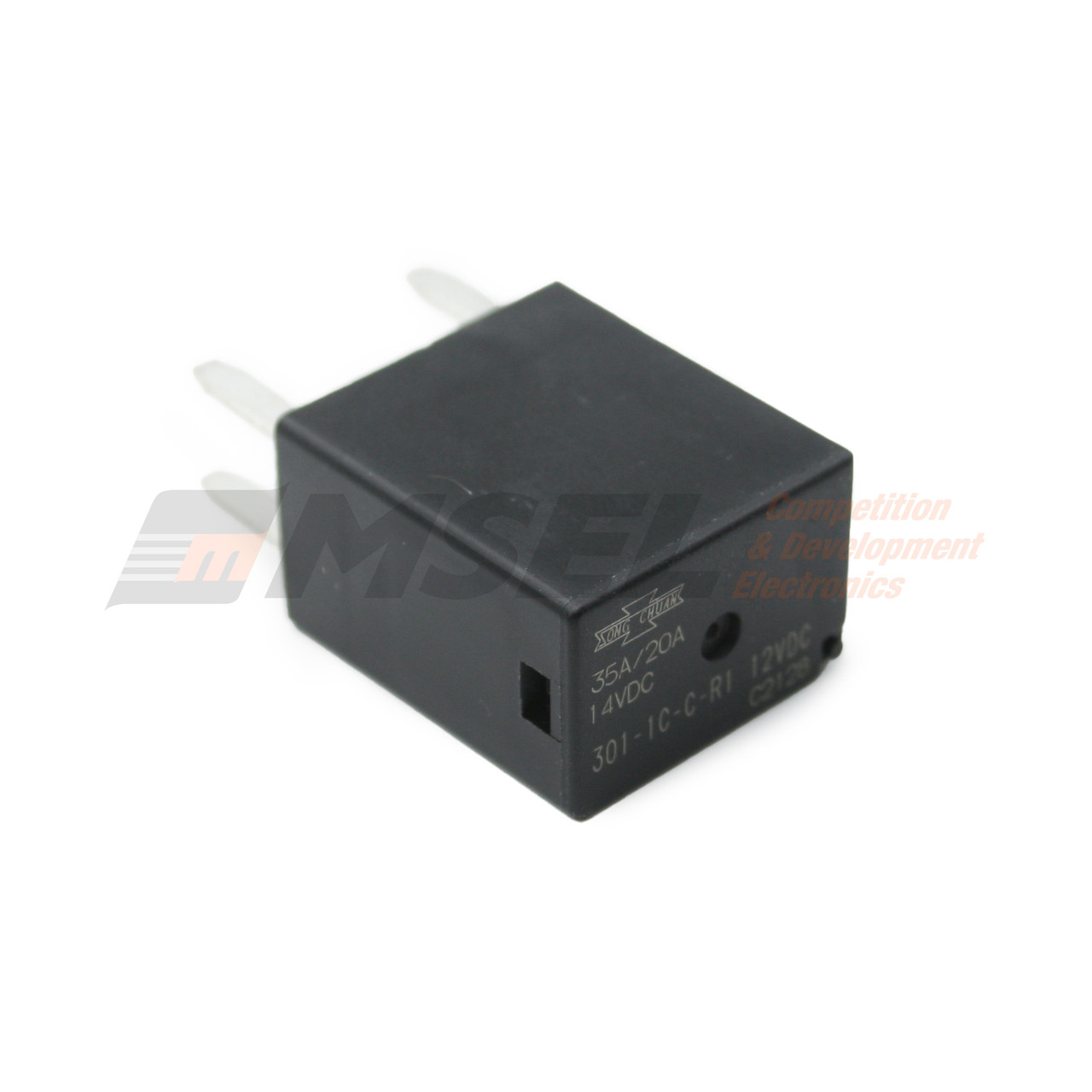

Relay - Micro 280 Series - Change Over 35/20
SKU: RELMIC12CO
Relay - Micro 280 Series - Change Over 35/20
SKU: RELMIC12CO
Summary:
Relay - Micro 280 Series - Change Over 35/20 Amp Typical applications would be for wiper speed control or headlight low / high beam. Coil Type Non Latching Coil Current 110 mA Coil Voltage 12VDC Contact Form SPDT (1 Form C) Switching Voltage 75VDC - Max Must Operate Voltage 7.2 VDC Must Release Volt…
Description:
Relay - Micro 280 Series - Change Over 35/20 Amp
Typical applications would be for wiper speed control or headlight low / high beam.
|
Coil Type
|
Non Latching
|
|
|
Coil Current
|
110 mA
|
|
|
Coil Voltage
|
12VDC
|
|
|
Contact Form
|
SPDT (1 Form C)
|
|
|
Switching Voltage
|
75VDC - Max
|
|
|
Must Operate Voltage
|
7.2 VDC
|
|
|
Must Release Voltage
|
1.2 VDC
|
|
|
Operate Time
|
5 ms
|
|
|
Release Time
|
2 ms
|
|
|
Features
|
Diode
|
|
|
Mounting Type
|
Socketable
|
|
|
Termination Style
|
Plug In
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Contact Material
|
Silver Tin Oxide Indium Oxide (AgSnOInO)
|
|
|
Coil Power
|
1.3W
|
|
|
Coil Resistance
|
109 Ohms
|
