Protect from noise and interference. Our shielded cable makes shielding wires for noise sensitive devices (like speed sensors) easy, all while keeping the nice size of Mil Spec wire. Available in up to 3 conductors and 20AWG.

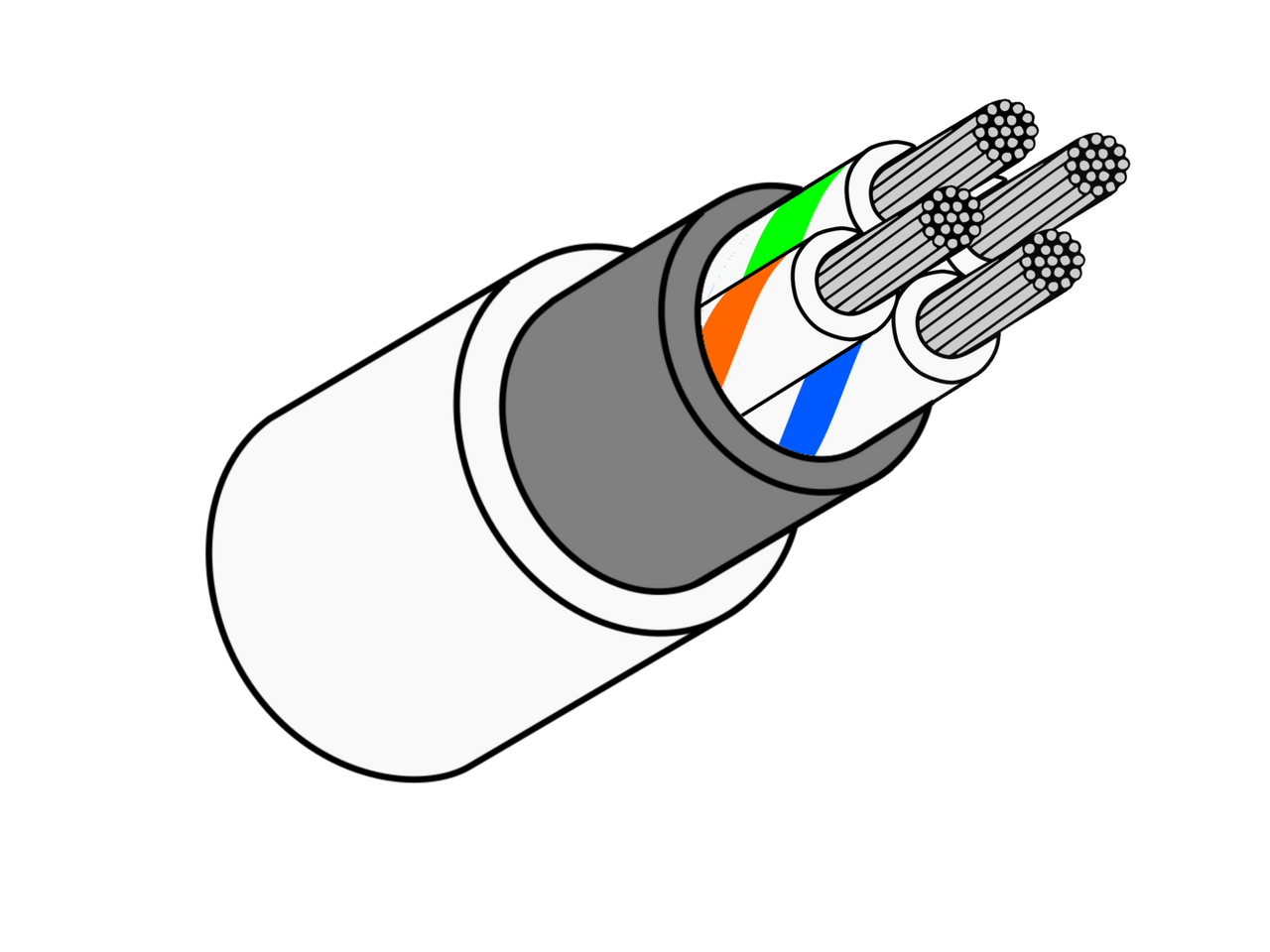

Mil-Spec 27500-18TG4T14 4-Core Shielded Cable Four (4) 18AWG M22759/18 Mil Spec tin coated copper wires in a Tefzel jacket. Features: temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation n…
CAB4MIL18S
Price on request

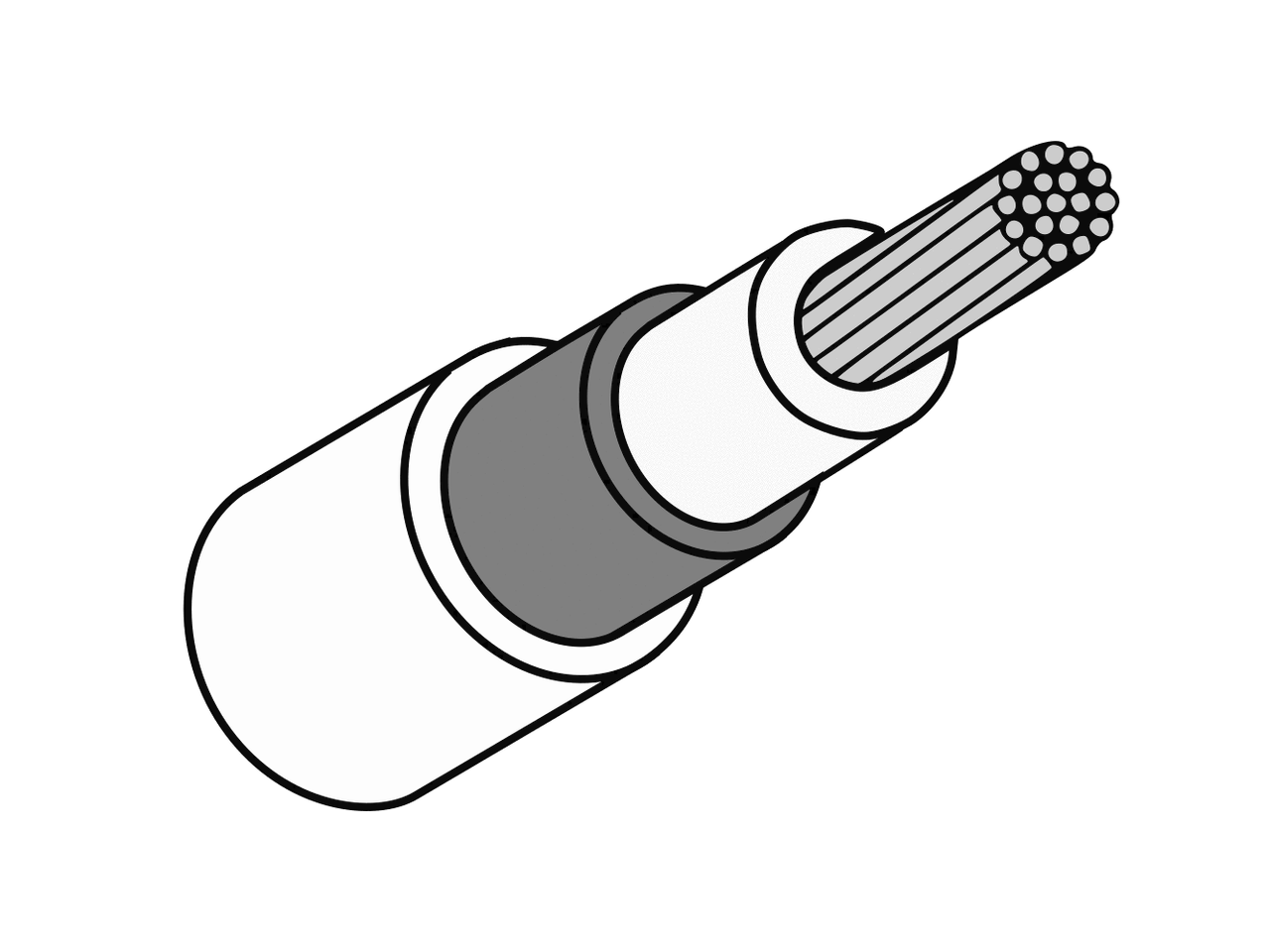

Shielded cable with a single 22AWG Mil Spec wire with an ETFE jacket. Specifications temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation notch and abrasion resistant tinned copper conductor small o…
CAB1MIL22S
Price on request

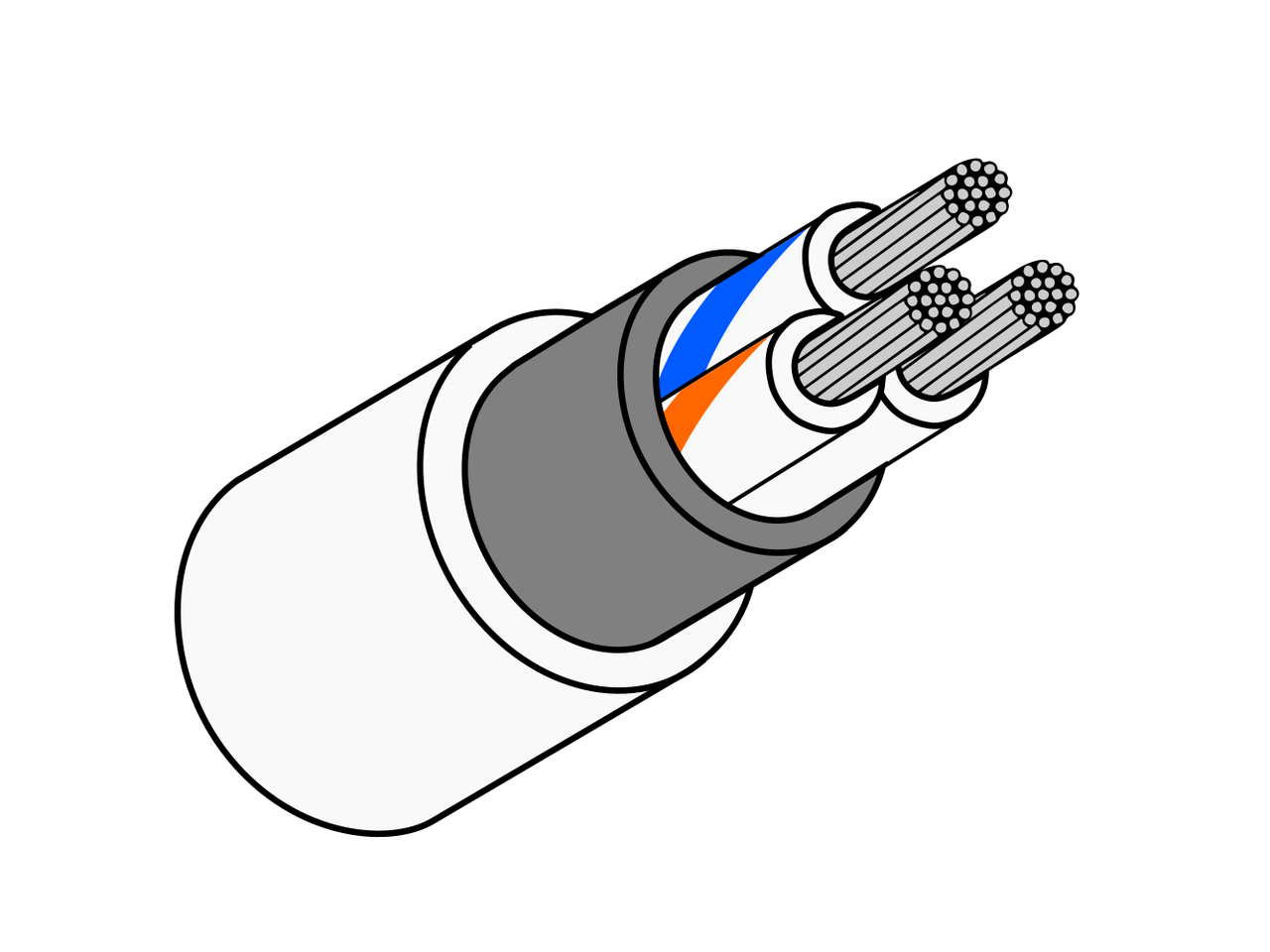

Shielded cable with three 18AWG M22759/18 Mil Spec wires in an XLETFE jacket. Features: temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation notch and abrasion resistant tinned copper cond…
CAB3MIL18S
Price on request
Shielded cable with three 22AWG M22759/32 Mil Spec wires in an XLETFE jacket. Features: temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation notch and abrasion resistant tinned copper conductor smal…
CAB3MIL22S
Price on request
Shielded cable with three 24AWG M22759/32 Mil Spec wires in an XLETFE jacket. Features: temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation notch and abrasion resistant tinned copper cond…
CAB3MIL24S
Our Price (Incl. GST)
| Qty 1+ | $7.97 ($9.17) |
| Qty 5+ | $7.18 ($8.26) |
| Qty 10+ | $6.38 ($7.34) |
| Qty 30+ | $5.58 ($6.42) |
| Qty 100+ | $5.38 ($6.19) |
Our Price (Incl. GST)
| Qty 1+ | $7.97 ($9.17) |
| Qty 5+ | $7.18 ($8.26) |
| Qty 10+ | $6.38 ($7.34) |
| Qty 30+ | $5.58 ($6.42) |
| Qty 100+ | $5.38 ($6.19) |
CAB3MIL24S

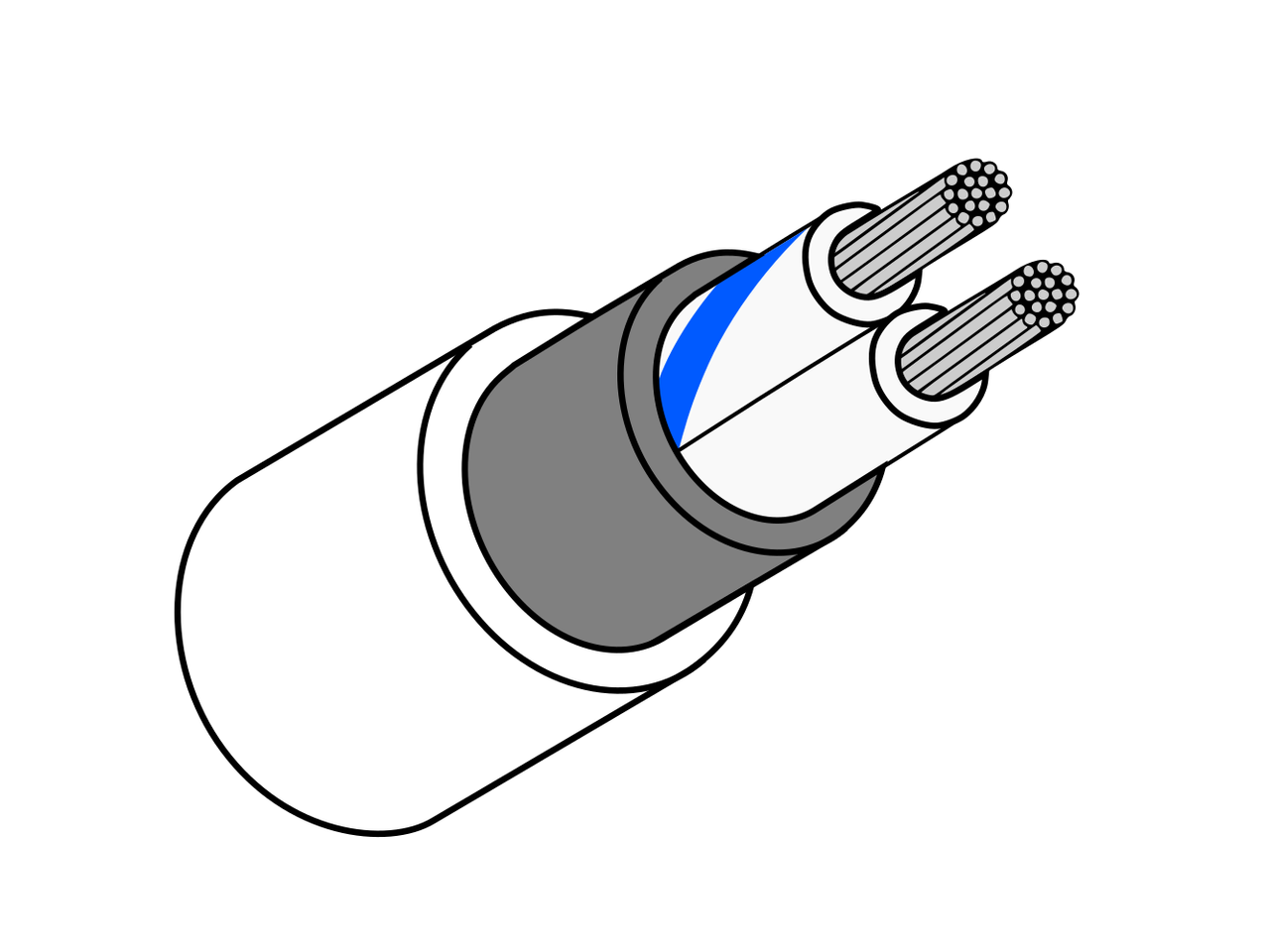

Shielded 2-core cable with two 24AWG M22759 Mil Spec wires in an XLETFE jacket. Features: temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation notch and abrasion resistant tinned copper co…
CAB2MIL24S
Our Price (Incl. GST)
| Qty 1+ | $6.66 ($7.66) |
| Qty 5+ | $6.00 ($6.90) |
| Qty 10+ | $5.33 ($6.13) |
| Qty 30+ | $4.66 ($5.36) |
| Qty 100+ | $4.50 ($5.17) |
Our Price (Incl. GST)
| Qty 1+ | $6.66 ($7.66) |
| Qty 5+ | $6.00 ($6.90) |
| Qty 10+ | $5.33 ($6.13) |
| Qty 30+ | $4.66 ($5.36) |
| Qty 100+ | $4.50 ($5.17) |
CAB2MIL24S
Shielded cable with three 20AWG M22759/32 Mil Spec wires in an XLETFE jacket. Features: temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation notch and abrasion resistant tinned copper conductor smal…
CAB3MIL20S
Price on request
Shielded cable with two 20AWG M22759/32 Mil Spec wires in an XLETFE jacket. Features: temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation notch and abrasion resistant tinned copper conductor small…
CAB2MIL20S
Price on request
Shielded 2-core cable with two 22AWG M22759 Mil Spec wires in an XLETFE jacket. Features: temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation notch and abrasion resistant tinned copper conductor sm…
CAB2MIL22S
Price on request
Shielded cable with four (4) 20AWG M22759/32 Mil Spec wires in an XLETFE jacket. Features: temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation notch and abrasion resistant tinned copper conductor s…
CAB4MIL20S
Price on request
Shielded cable with two 18AWG M22759/32-18 Mil Spec wires in an XLETFE jacket. Ideal for high current CDI ignition coils. Features: temperature range -65ºC to +150ºC resistant to alkaline solutions, acids, solvents, oils, fuels fluoropolymer cross-linked modified ETFE single insulation notch and abr…
CAB2MIL18S
Price on request
