Kit includes:

• 1 x Connector Housing
• 1 x Terminal
• 1 x Terminal Seal

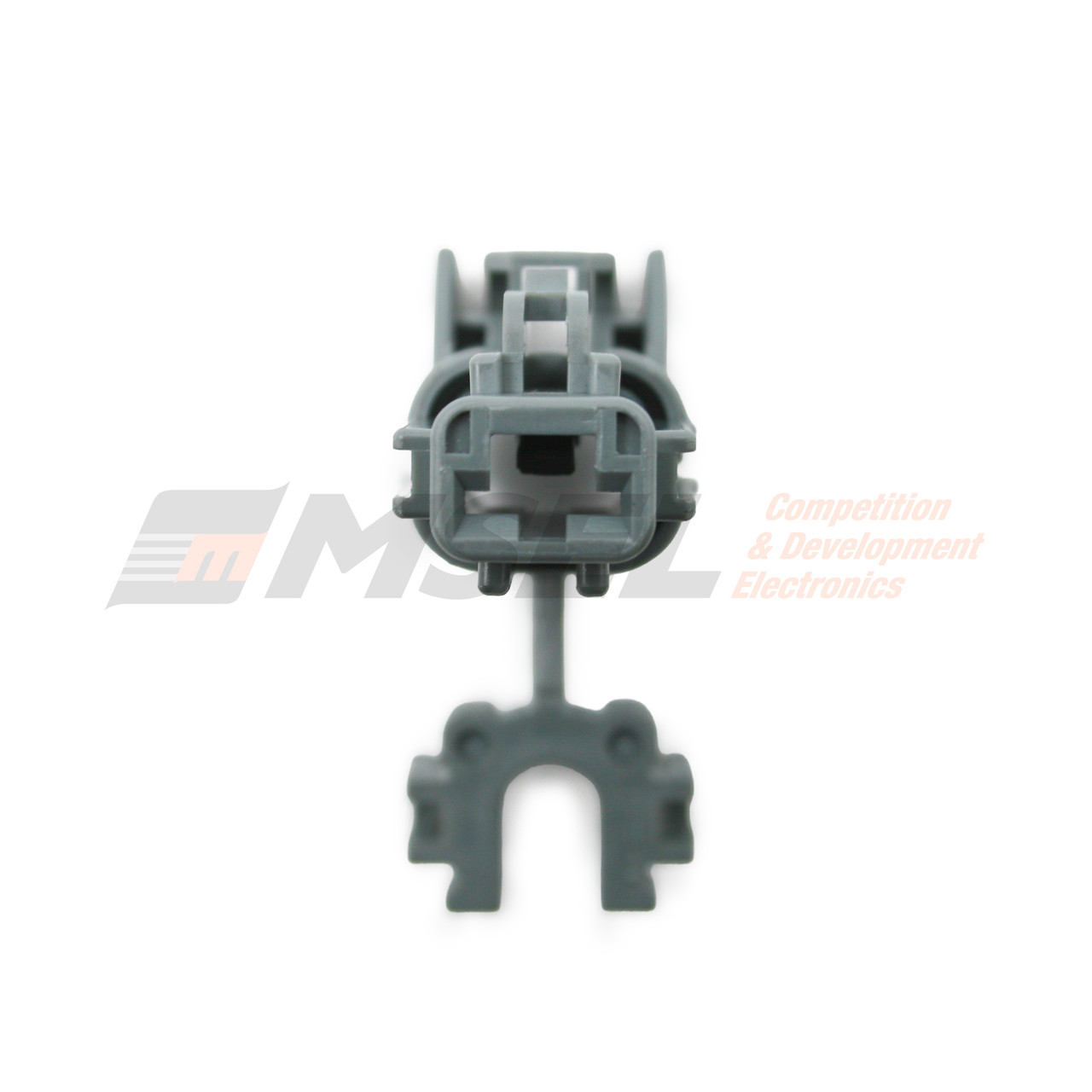

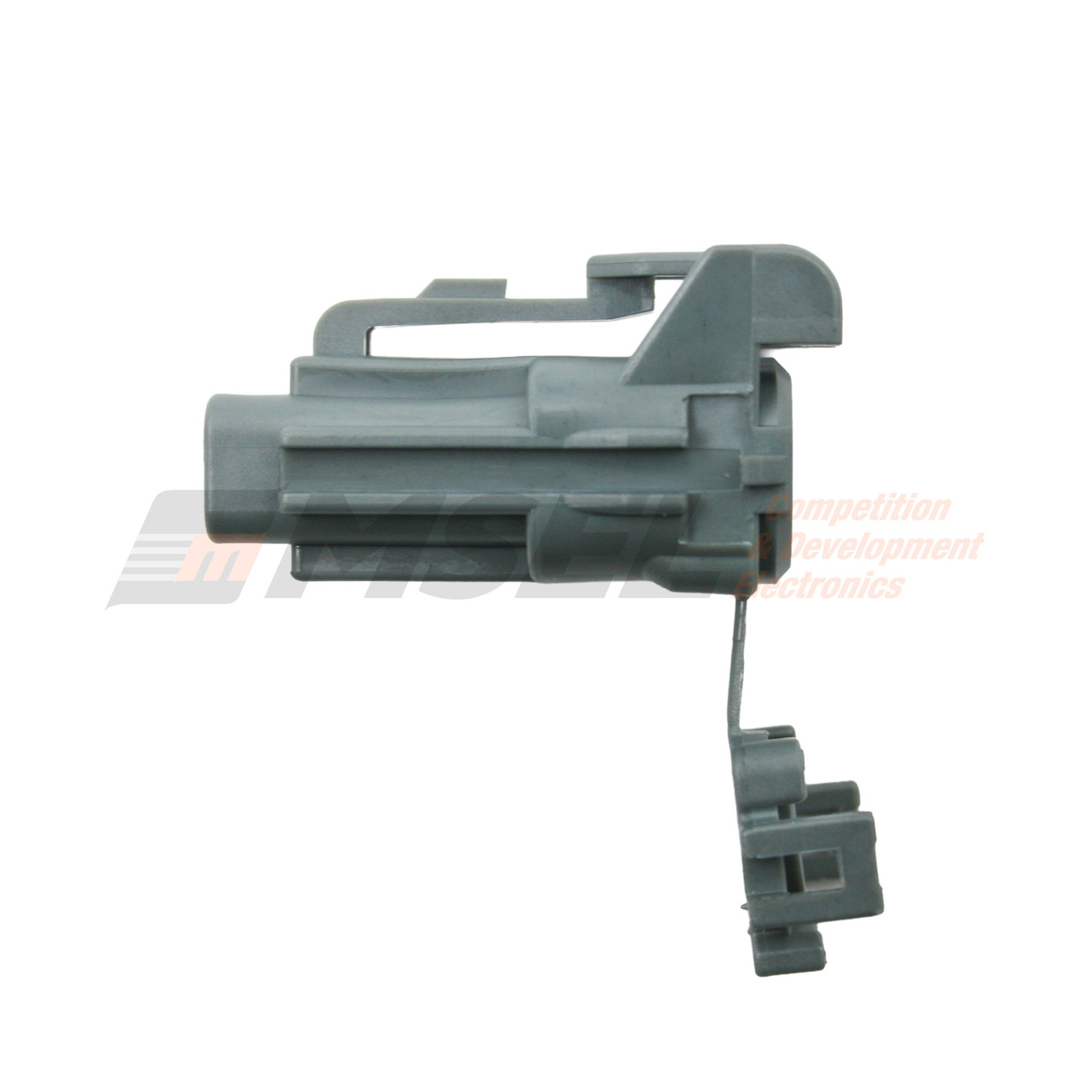

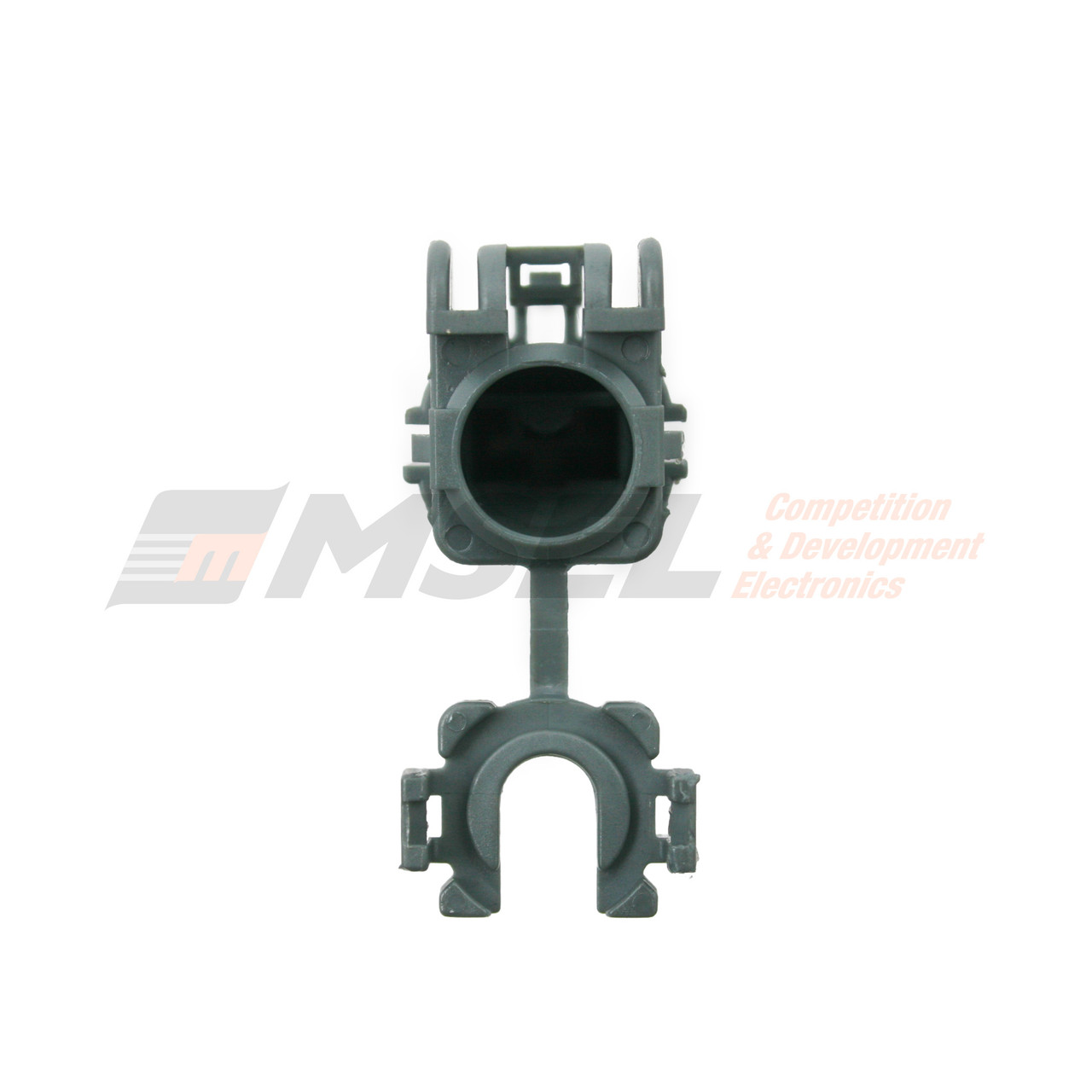

Used in some Nissan and Infiniti starter motor applications.

Note that this is an aftermarket (non-OEM) connector housing.

Key Features

General

Sealing:	Single Wire Sealed
Number of Ways:	1
Contact Size:	6.3mm
Wire Size:	20AWG -12AWG
Number of Rows:	1
Numbered Cavities:	No

Mechanical

Contact Type:	Socket, flat
Termination:	Open barrel crimp
Lance Type:	Housing Lance
Housing Material:	PBT
Seal Material:	Silicone Rubber
Mounting Style:	Free hanging
TPA:	Yes
CPA:	No

Electrical

Current Rating[1]:

20A

Environmental

Temp Range[2]:

-40 - 85°C

[1] Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
[2] Temperature range is for reference only, and may/may not include temperature rise.
