Terminal for Junior Timer Connector Female 20 to 17AWG - Gold Plated
SKU: TERJTMEDG
Terminal for Junior Timer Connector Female 20 to 17AWG - Gold Plated
SKU: TERJTMEDG
Summary:
Terminal for Junior Timer Connector 20 to 17AWG - Female Known under many names including junior timer, mini timer, EV1. for 20 to 17AWG wire ( 0.5mm² to 1.0mm²) long version which accepts seal/grommet to reduce vibration in motorsport environments this terminal will not fit shorter housin…
Description:

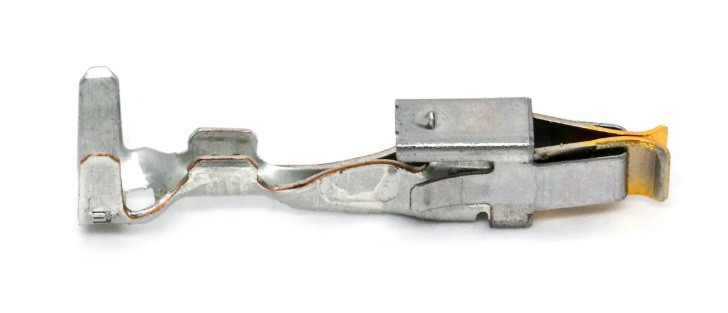

Terminal for Junior Timer Connector 20 to 17AWG - Female
Known under many names including junior timer, mini timer, EV1.
- for 20 to 17AWG wire (0.5mm² to 1.0mm²)
- long version which accepts seal/grommet to reduce vibration in motorsport environments
- this terminal will not fit shorter housings
- 21mm long
- double spring for improved retention
- gold plated
- sold in lots of 10
Note that this is a long version of the terminal that will not fit short housings.
Genuine TE product sourced from authorised TE distributors.
