Terminal for Junior Timer Connector Female 24 to 20AWG - Gold Plated
SKU: TERJTSMLG
Terminal for Junior Timer Connector Female 24 to 20AWG - Gold Plated
SKU: TERJTSMLG
Summary:
Terminal for Junior Timer Connector 24 to 20AWG - Female Known under many names including junior timer, mini timer, EV1. for 24 to 20AWG wire ( 0.25mm² to 0.5mm²) long version which accepts seal/grommet to reduce vibration in motorsport environments this terminal will not fit shorter housi…
Excl. GST (Incl. GST)
$1.10 ($0.96)
Unit $0.96 ($1.10)
Buy in Bulk and Save!
Description:

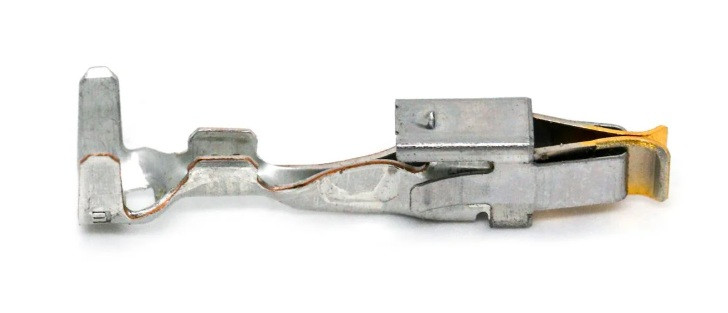

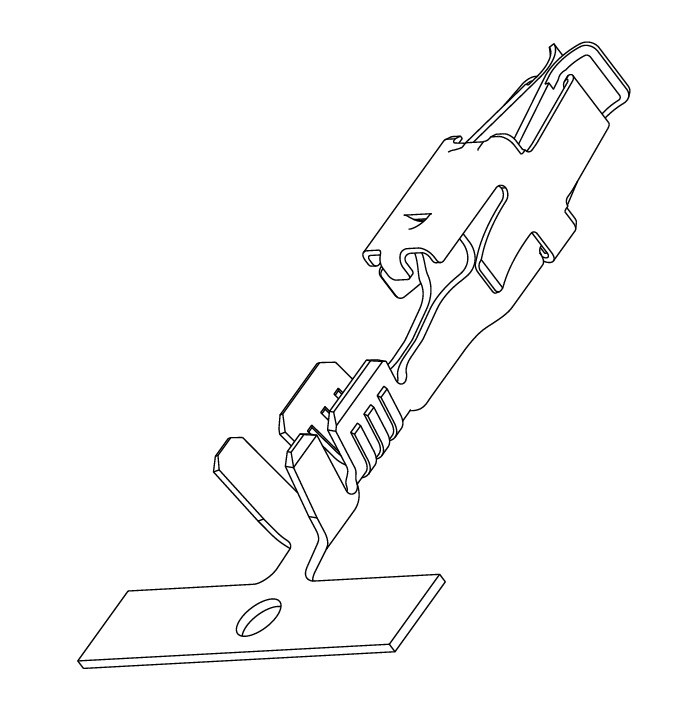

Terminal for Junior Timer Connector 24 to 20AWG - Female
Known under many names including junior timer, mini timer, EV1.
- for 24 to 20AWG wire (0.25mm² to 0.5mm²)

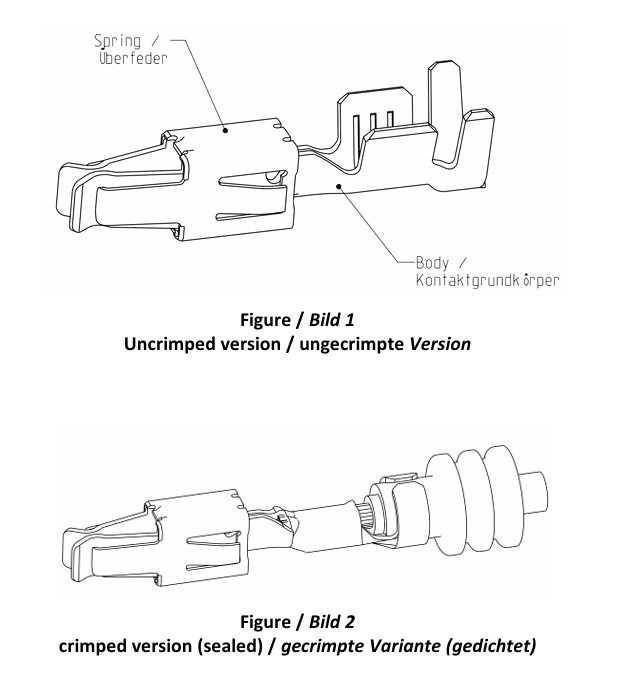

- long version which accepts seal/grommet to reduce vibration in motorsport environments
- this terminal will not fit shorter housings
- 21mm long
- double spring for improved retention
- gold plated
- sold in lots of 10
Note that this is a long version of the terminal that will not fit short housings.
Genuine TE product sourced from authorised TE distributors.
