Throttle Position Sensor D Drive Right Hand Rotation
SKU: SENTPSRH
Throttle Position Sensor D Drive Right Hand Rotation
SKU: SENTPSRH
Summary:
Throttle Position Sensor D Drive Right Hand Rotation Right hand Throttle Position Sensor with D-drive (grey) and integrated 3-Way Junior Timer Connector If looking at the Shaft on the throttle body, rotation would be in a clockwise direction Pinout Pin 1: Ground 0V Pin 2: Output Signal Pin 3: 5V Sup…
Description:
Throttle Position Sensor D Drive Right Hand Rotation

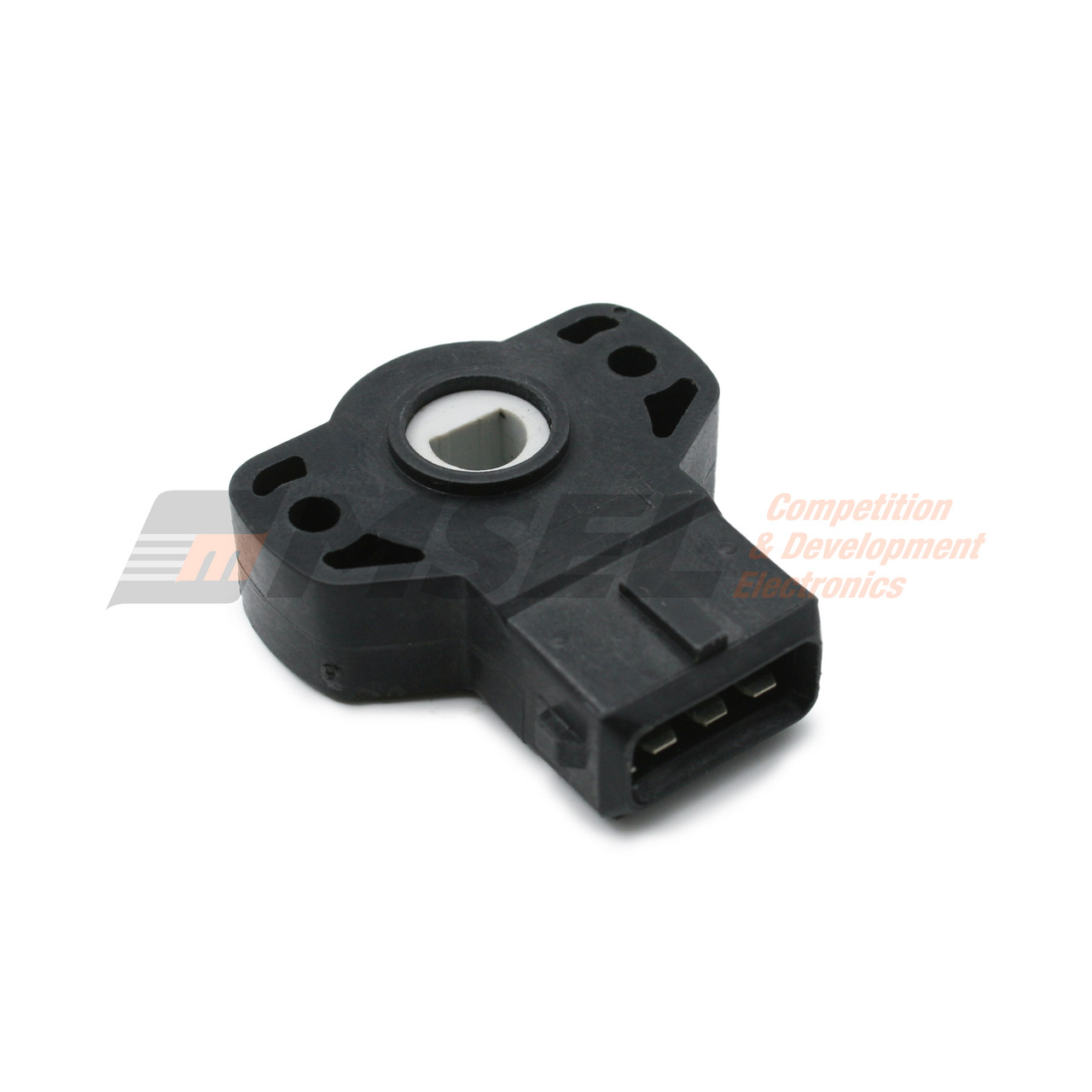

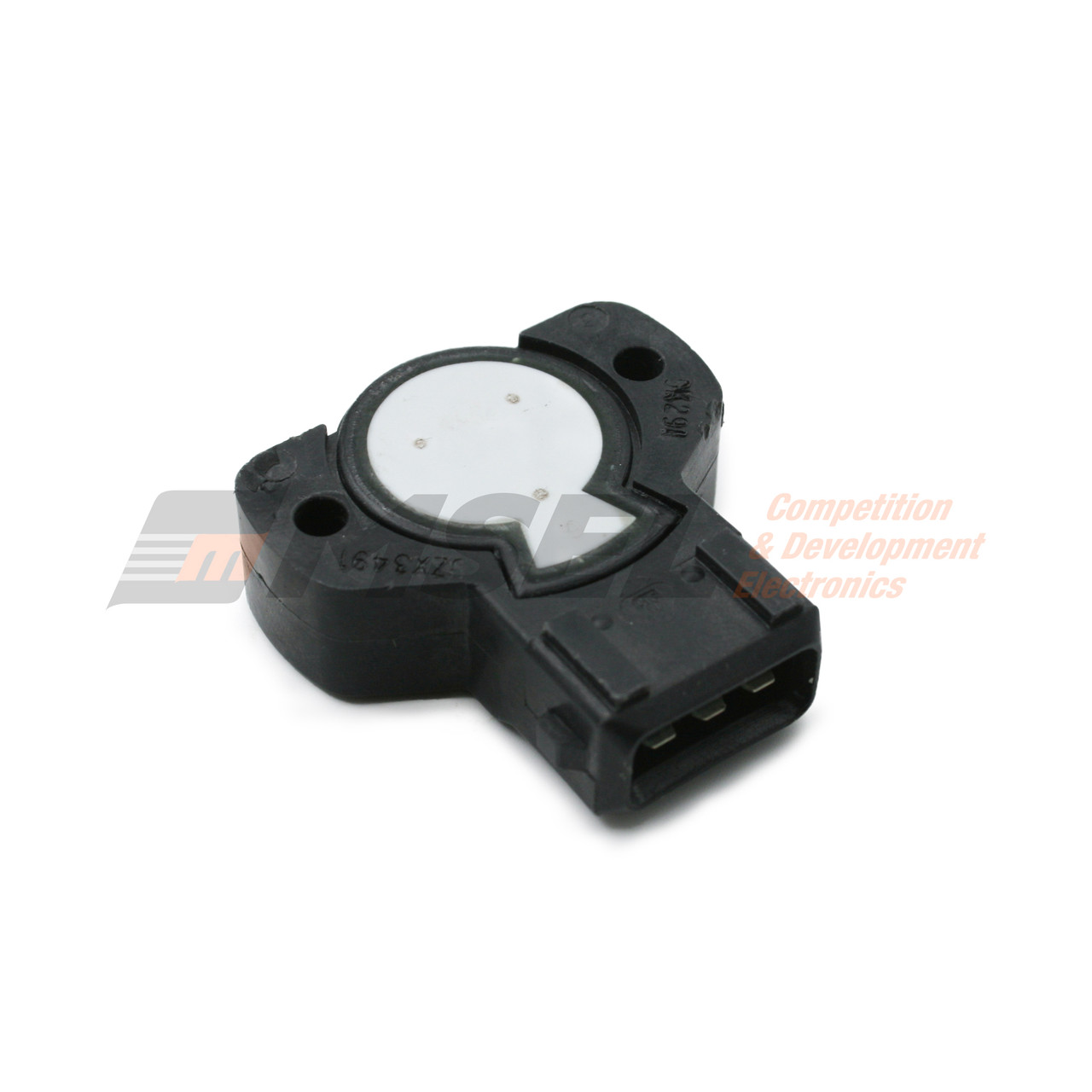

Right hand Throttle Position Sensor with D-drive (grey) and integrated 3-Way Junior Timer Connector
If looking at the Shaft on the throttle body, rotation would be in a clockwise direction

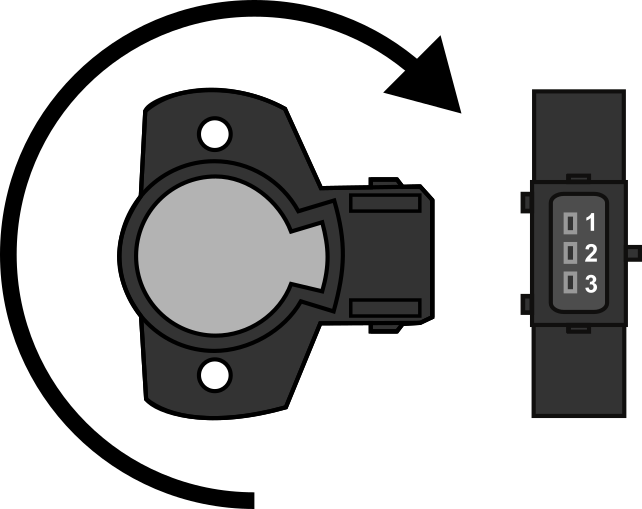

Pinout
Pin 1: Ground 0V
Pin 2: Output Signal
Pin 3: 5V Supply
Connector not included - for connector click here.
